Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDRRN2.5MDAA5SENSOR 0.04PSID 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
40PC006G1ASENSOR 5.8PSIG 0.18" 4.5V |
0 |
|
- |
40PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±4% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 12.57PSI (86.67kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
MLV-030D-E1BS-NSENSOR 30PSID 0.09" .0375V 4SIP |
3 |
|
Datasheet |
MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 37.5 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±90PSI (±620.53kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

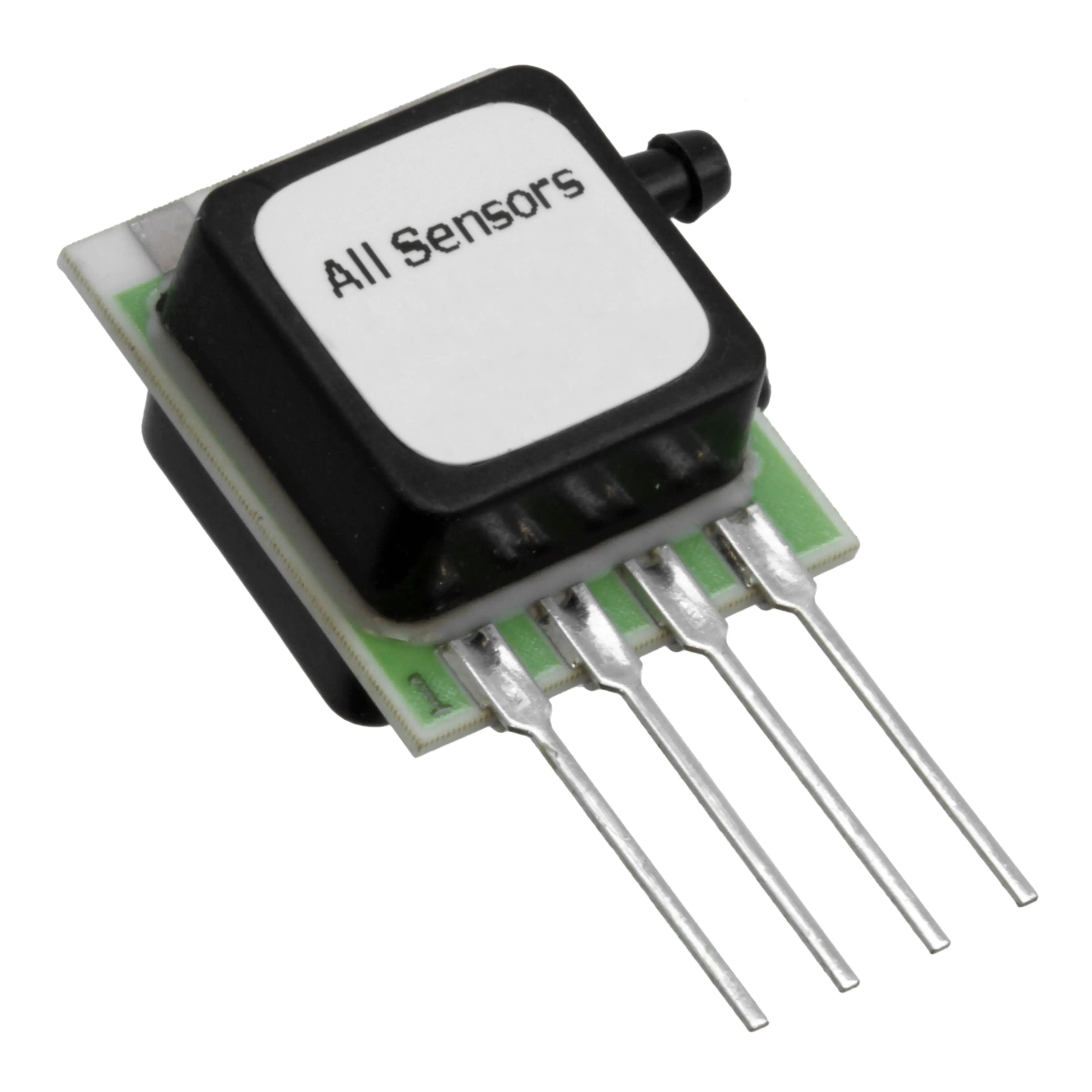

MLV-015D-E1BS-NSENSOR 15PSID 0.09" .0375V 4SIP |
2 |
|
Datasheet |
MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 37.5 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

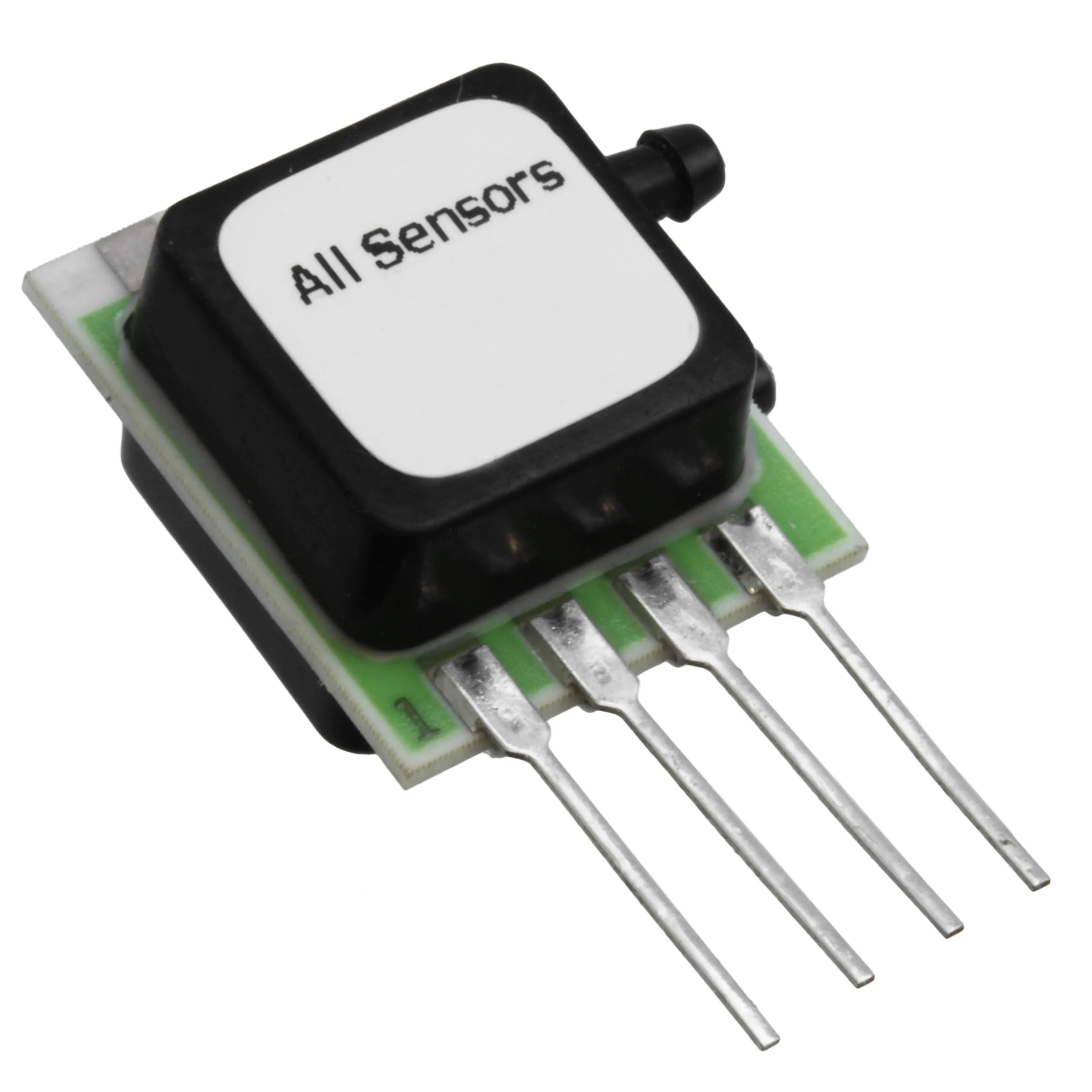

MLV-005D-E1BS-NSENSOR 5PSID 0.09" .025V 4SIP |
0 |
|
Datasheet |
MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCMRRN2.5MD2A5SENSOR 0.04PSID 0.08" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
TBFLPNS060PGUCVTBASIC FORCES SENSOR |
0 |
|
- |
TBF | 6-SMD, No Lead | Bulk | Active | Medical Ventilation | Gauge | 60PSI (413.69kPa) | Analog Voltage | - | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
30 PSI-D-HGRADE-MVSENSOR 30PSID 0.19" .09V |
0 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
100 PSI-D-HGRADE-MVSENSOR 100PSID 0.19" 0.1V |
0 |
|
Datasheet |
AXCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-A-HGRADE-MVSENSOR 15PSIA 0.19" .09V |
0 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
HSCDRRD002ND2A3SENSOR 0.07PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRD010MDSA3SENSOR 0.15PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | SPI | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
ND210-SM02-QSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Industrial Automation | Differential | 0.01PSI ~ 0.36PSI (0.06kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.05% | 3.5V ~ 2.8V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
ND210-SM02-TSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tray | Active | Industrial Automation | Differential | 0.01PSI ~ 0.36PSI (0.06kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.05% | 3.5V ~ 2.8V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
24PCAFJ6GSENSOR 1PSIC 0.07" .045V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.07" (1.78mm) Tube | Needle | - | - | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
BPS125-AD0P07-2DGSENSOR 0.07PSID 0.087" 13BIT SMD |
0 |
|
Datasheet |
BPS125 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | - | Differential | 0.07PSI (0.5kPa) | Digital - I2C | 13 b | ±0.25% | 3V ~ 3.6V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 0.36PSI (2.5kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
4 INCH-G-CGRADE-MINISENSOR 0.15PSIG .025V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 16V | - | No Port | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4 INCH-GF-CGRADE-MINISENSOR 0.15PSIG 0.18" .025V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
0.3 PSI-G-CGRADE-MINISENSOR 0.3PSIG .02V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 16V | - | No Port | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
0.3 PSI-GF-CGRADE-MINISENSOR 0.3PSIG 0.18" .02V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
