Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1 PSI-G-HGRADE-MINISENSOR 1PSIG .018V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | - | No Port | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 PSI-G-HGRADE-MINISENSOR 5PSIG .06V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.5% | 16V | - | No Port | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

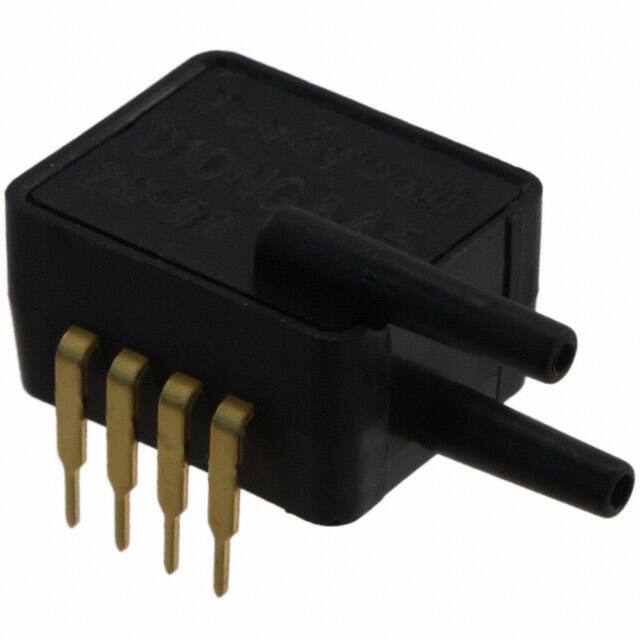

ASDXRRX010NGAA5SENSOR 0.36PSIG 0.09" 4.5V |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 0.72PSI (4.96kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
HSCSSNN001PD2A3SENSOR 1PSID 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNN150PGAA5SENSOR 150PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHHN060MD3A3SENSOR 0.87PSID 0.16" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSNBN001PDAA5SENSOR 1PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSSNN100PG2A3SENSOR 100PSIG 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSSNT060PGAA5SENSOR 30PSIG 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

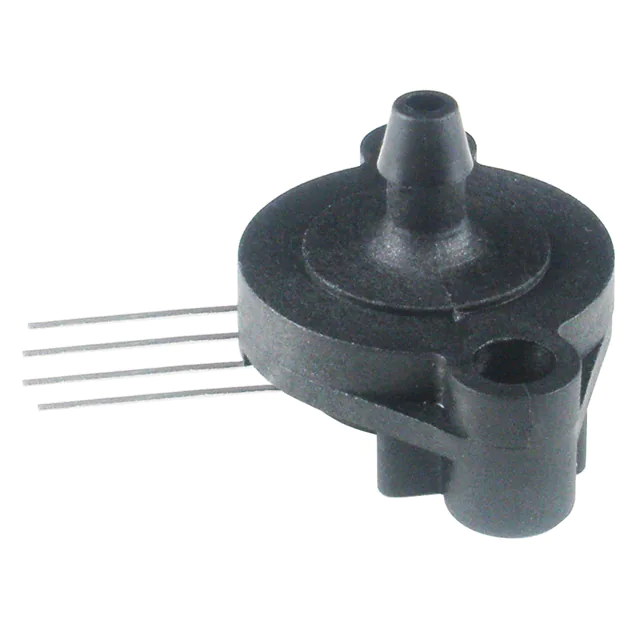

HSCSGND015PA3A3SENSOR 15PSIA 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSNBN001PD4A3SENSOR 1PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSNBN250MDAA5SENSOR 3.63PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±3.63PSI (±25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSSNN005PDAA5SENSOR 5PSID 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSSNT100PDAA5SENSOR 100PSID 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | - | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNV004BDAF3HSCSHNV004BDAF3 |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCSHNN001BAAA5TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCSFNN001BAAA5TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCSMNN010BGAA3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pins | 246.56PSI (1700kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSMNV1.6BA2A3TRUSTABIITY |
0 |
|
- |
TruStability® HSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 23.21PSI (160kPa) | I2C | - | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pins | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSHNV1.6BA2A3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 23.21PSI (160kPa) | I2C | - | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.83mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
