Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELVH-015G-HRRD-I-NAB5SENSOR 14.94PSIG 0.06" 8DIP |
4 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Gauge | 15PSI (103.42kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M325P-00000E-025BGSENSOR 362.59PSIG 1/4" .02A |
3 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 362.59PSI (2500kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 725PSI (5000kPa) | -40°C ~ 125°C | - | - | - | - |
|
1 PSI-D-CGRADE-MINISENSOR 1PSID 0.18" .018V |
1 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
5 PSI-GF-CGRADE-MINISENSOR 5PSIG 0.18" .06V |
1 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
ELVH-015G-HAND-I-NAA5SENSOR 14.94PSIG 0.19" |
3 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 15PSI (103.42kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
PS03-A400KP-V4WSENSOR 58.02PSIA .12V |
0 |
|
Datasheet |
PS03 | Module | Box | Active | - | Absolute | 58.02PSI (400kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS08-G25MP-6PSENSOR 362.59PSIG .15V |
0 |
|
Datasheet |
PS08 | Module | Box | Active | - | Gauge | 362.59PSI (2500kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 543.89PSI (3750kPa) | -40°C ~ 125°C | - | - | - | - |
|
ELVH-L20G-HRRJ-I-NAA4SENSOR 0.73PSIG 0.06" |
0 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Gauge | 0.73PSI (5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
ELVH-L01G-HRND-I-NAB4SENSOR 0.03PSIG 0.06" |
0 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 0.03PSI (0.2kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
DLVR-L10D-E1NS-C-NI5FSENSOR 0.36PSID 0.08" 14BIT 4SIP |
0 |
|
Datasheet |
DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 14 b | ±0.75% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
.jpg)
|

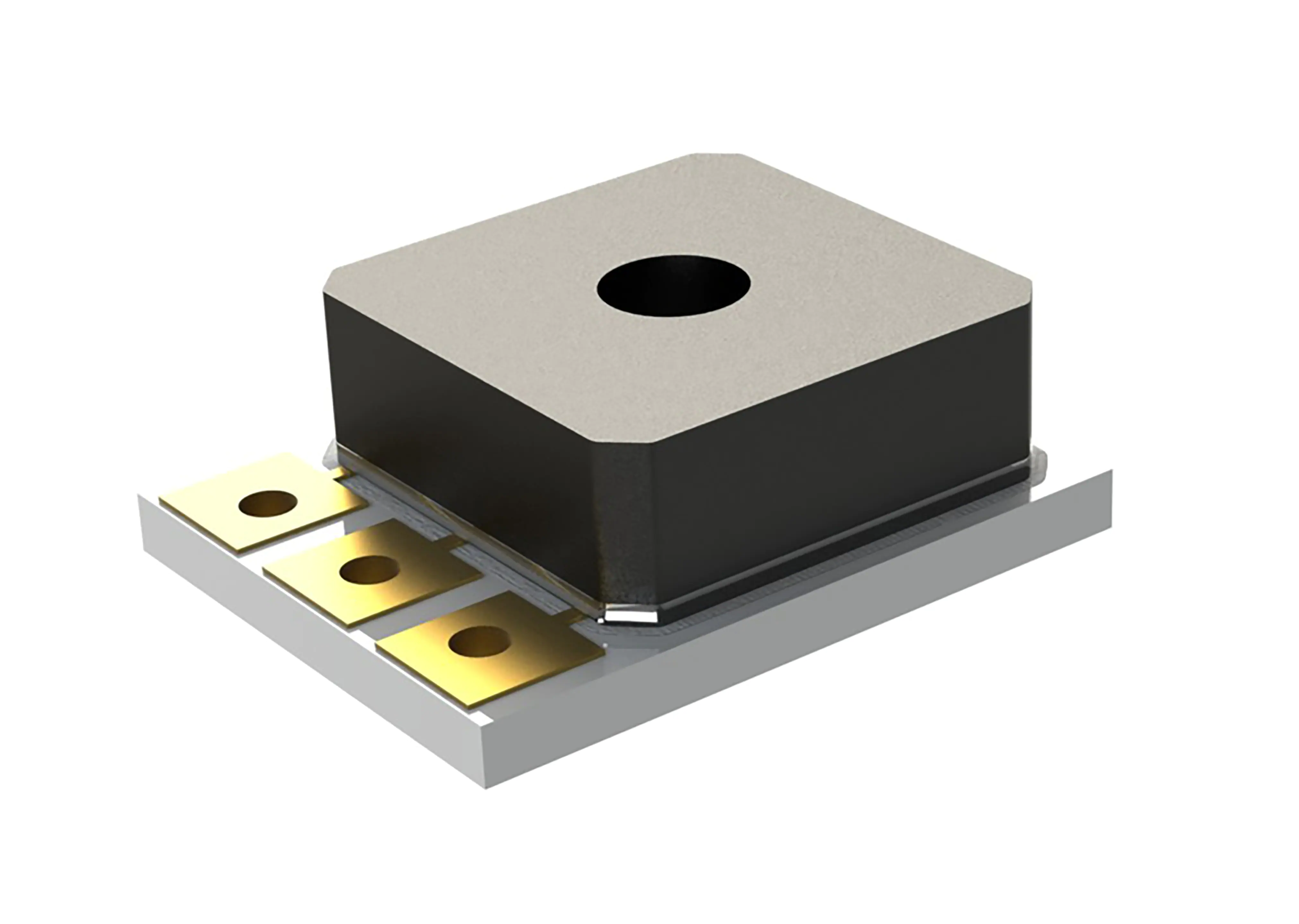

BPS130-HA030P-1MGSENSOR 30PSIA 4.95V |
0 |
|
Datasheet |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | - | No Port | - | Solder Pad | 60PSI (413.69kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
PS03-S1000MP-A4WSENSOR 14503.77PSIS .15V |
5 |
|
Datasheet |
PS03 | Module | Box | Active | - | Sealed Gauge | 14503.77PSI (100000kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 21756PSI (150000kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS04-G400KP-V4WSENSOR 58.02PSIG .12V |
5 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 58.02PSI (400kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS07-S160MP-6PSENSOR 2320PSIS .15V |
4 |
|
Datasheet |
PS07 | Module | Box | Active | - | Sealed Gauge | 2320.6PSI (16000kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 4641.21PSI (32000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS07-A100KP-6PSENSOR 14.5PSIA .15V |
3 |
|
Datasheet |
PS07 | Module | Box | Active | - | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS04-G25MP-V4WSENSOR 362.59PSIG .12V |
3 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 362.59PSI (2500kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 543.89PSI (3750kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS03-A10MP-V4WSENSOR 145.04PSIA .12V |
2 |
|
Datasheet |
PS03 | Module | Box | Active | - | Absolute | 145.04PSI (1000kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 290.08PSI (2000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS03-S25MP-V4WSENSOR 362.59PSIS .12V |
1 |
|
Datasheet |
PS03 | Module | Box | Active | - | Sealed Gauge | 362.59PSI (2500kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS07-S60MP-6PSENSOR 870PSIS .15V |
0 |
|
Datasheet |
PS07 | Module | Box | Active | - | Sealed Gauge | 870.2PSI (6000kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|
MLV-L02D-E1NS-NSENSOR 0.07PSID 0.08" .01V 4SIP |
1 |
|
Datasheet |
MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (5V) | ±0.3% | 5V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
