Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19A-100G2SENSOR 100PSIG 14BIT |
0 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 100PSI (689.48kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPH-8-100DHSENSOR 15PSID 0.19" 0.1V TO8 |
0 |
|
Datasheet |
NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
B58621V4121B538SENSOR 0.23PSID 14BIT |
0 |
|
Datasheet |
- | Module | Bag | Active | - | Differential/Vented Gauge | 0.23PSI (1.6kPa) | SPI | 14 b | - | 2.7V ~ 5.5V | - | - | Temperature Compensated | Connector | 2.32PSI (16kPa) | -20°C ~ 70°C (TA) | - | - | - | - |
|
M323M-00000P-070BGSENSOR 1015.26PSIG 7/16" 4.5V |
0 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1015.26PSI (7000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2031PSI (14000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
86BSD300PA-3ASRLPRESS,ISO,BACK-SIDE DIGITAL |
0 |
|
Datasheet |
86BSD | Cylinder | Bulk | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | Cable with Connector | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
114991729SENSOR 15.95PSI |
0 |
|
Datasheet |
SenseCAP | Module | Bulk | Active | - | - | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | - | - | ±0.015PSI (±0.1kPa) | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - |
|
P-3000S-102A-10SENSOR 14.23PSIA .08V |
0 |
|
Datasheet |
P-3000S | 5-DIP Module, Top Port | Bulk | Active | Board Mount | Absolute | 14.23PSI (98.1kPa) | Analog Voltage | 0 mV ~ 80 mV | ±0.1% | - | - | Barbless | Temperature Compensated | PC Pin | 28.43PSI (196kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
SPAN-B2R-M5F-PN-PN-L1SENSOR 14.5PSI M5 |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | NPN/PNP- NC/NO | - | ±1.5% | 15V ~ 30V | Male - M5 | Threaded | - | - | 72.52PSI (500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
154N-100G-RTSENSOR 100PSIG 0.1V |
0 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
5 PSI-D-4V-MILSENSOR 5PSID 0.19" 4.25V |
0 |
|
Datasheet |
AXCA | 4-SIP Module | Tube | Active | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
86A3R-000000-150PGSENSOR 150PSIG 4.5V |
0 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 450PSI (3102.64kPa) | -20°C ~ 85°C | - | - | - | - |
|

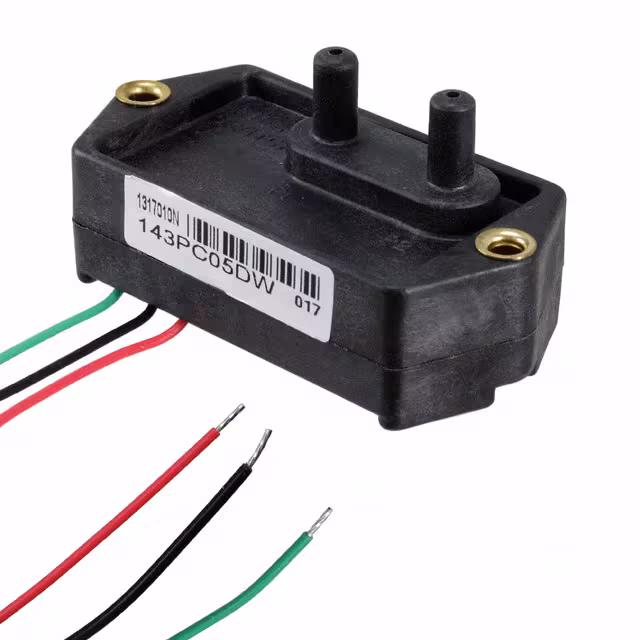

143PC05DWSENSOR 5PSID 0.2" 8.5V |
0 |
|
- |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 3.5 V ~ 8.5 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
HSPPAR003DPRESSURE SENSOR |
0 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | Board Mount | Absolute | 7.25PSI ~ 15.95PSI (50kPa ~ 110kPa) | Analog Voltage | - | ±1% | - | - | No Port | - | - | 43.51PSI (300kPa) | -20°C ~ 85°C | - | - | Surface Mount | 4-SMD |
|
|
NPB-102-I-0200ABAROMETRIC PRESSURE SENSOR 50-20 |
0 |
|
Datasheet |
NPB 102 | 16-QFN Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Absolute | 7.25PSI ~ 29.01PSI (50kPa ~ 200kPa) | I2C | 18b | ±3% | 1.7V ~ 3.6V | - | No Port | Temperature Compensated | - | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount, Wettable Flank | 16-QFN (4x4) |
|
|
NPB-102-I-0126ABAROMETRIC PRESSURE SENSOR 26-12 |
0 |
|
Datasheet |
NPB 102 | 16-QFN Exposed Pad | Tape & Reel (TR) | Active | Board Mount | Absolute | 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) | I2C | 18b | ±3% | 1.7V ~ 3.6V | - | No Port | Temperature Compensated | - | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount, Wettable Flank | 16-QFN (4x4) |
|
|
NTM88K135ST1TPMS 4X4 1500KPA XZ AXIS |
0 |
|
Datasheet |
- | 24-FQFN Exposed Pad | Tape & Reel (TR) | Active | Industrial Automation | Differential | 13.05PSI ~ 220.17PSI (90kPa ~ 1518kPa) | SPI | - | - | 1.2V ~ 3.6V | - | No Port | Temperature Compensated | - | - | -40°C ~ 125°C | - | - | Surface Mount, Wettable Flank | 24-HQFN (4x4) |
|
|
NBP8FD4ST1IC PRESSURE SENSOR 24HQFN |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NBP9FD4ST1IC PRESSURE SENSOR 24HQFN |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SM5291-BCE-S-100.00-631100CMH2O DIFFERENTIAL SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SM7391-BCE-S-002.00-4312KPA DIFFERENTIAL SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
