Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLHR-L01G-E1BD-C-NAV8SENSOR 0.04PSID 0.09" 18BIT 8DIP |
0 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | ±0.04PSI (±0.25kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLHR-L05G-E1BD-C-NAV8SENSOR 0.18PSID 0.09" 18BIT 8DIP |
0 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | ±0.18PSI (±1.25kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
B58621V2894B536SENSOR 101.53PSID 14BIT |
0 |
|
Datasheet |
- | Module | Bag | Active | - | Differential/Vented Gauge | 101.53PSI (700kPa) | SPI | 14 b | - | 2.7V ~ 5.5V | - | - | Temperature Compensated | Connector | 203.05PSI (1400kPa) | -20°C ~ 70°C (TA) | - | - | - | - |
|
86-015G-CTNISO,LP,GAGE,CBL/CONNECT/TUB |
0 |
|
Datasheet |
86 | Cylinder | Bulk | Active | Board Mount | Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
4515DO-DS3BK030DPLSENSOR 1.08PSID 0.14" 14BIT |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
|
4525DO-TP3AJ030APFPRESS XDCR,DIGITAL,PSI RANGE |
0 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

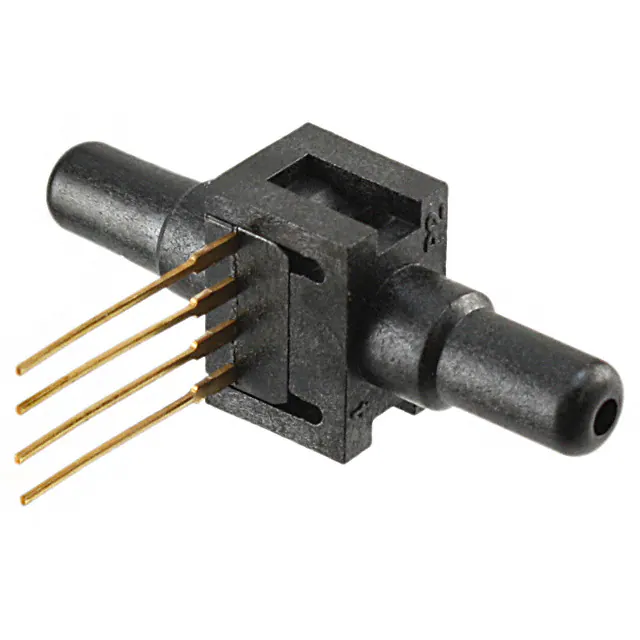

24PCFFA6DSENSOR 100PSID 0.2" .225V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
B58621V2712B537SENSOR 1.45PSID 14BIT |
0 |
|
Datasheet |
- | Module | Bag | Active | - | Differential/Vented Gauge | -0.07PSI ~ 1.45PSI (-0.5kPa ~ 10kPa) | SPI | 14 b | - | 2.7V ~ 5.5V | - | - | Temperature Compensated | Connector | 14.5PSI (100kPa) | -20°C ~ 70°C (TA) | - | - | - | - |
|
PS02-A100KP-4WSENSOR 14.5PSIA |
0 |
|
Datasheet |
PS02 | Module | Box | Active | - | Absolute | 14.5PSI (100kPa) | I2C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 105°C | - | - | - | - |
|
PTE7100-21CC-2A050BNSENSOR 725.19PSIG 7/16" .02A |
1 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Current | 4 mA ~ 20 mA | ±1.5% | 8V ~ 32V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-31DC-0A200BNSENSOR 2900.75PSIG 1/4"NPT .02A |
0 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Current | 4 mA ~ 20 mA | ±1.5% | 8V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-33CC-2E200BNSENSOR 2900.75PSIG 7/16" 5V |
0 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Voltage | 1 V ~ 5 V | ±1.5% | 8V ~ 32V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-23CC-2E050BNSENSOR 725.19PSIG 7/16" 5V |
0 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 1 V ~ 5 V | ±1.5% | 8V ~ 32V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
DLLR-L10G-E1BD-C-NAV7SENSOR 0.36PSID 0.09" 17BIT 8DIP |
0 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 0.36PSI (2.49kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLLR-L10G-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
0 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 0.36PSI (2.49kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPI-19A-002G2SENSOR 2.5PSIG 14BIT |
1 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 2.5PSI (17.24kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 5PSI (34.47kPa) | -10°C ~ 80°C | - | - | - | - |
|
NPI-19A-015GVSENSOR 15PSIG 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 10V | - | No Port | Temperature Compensated | Flex Cable | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-030A-RSENSOR 30PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19A-005G2SENSOR 5PSIG 14BIT |
0 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 10PSI (68.95kPa) | -10°C ~ 80°C | - | - | - | - |
|
|
NPI-19M-100A2SENSOR 100PSIA M12 14BIT |
0 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 100PSI (689.48kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
