Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELVH-L10D-HRRD-I-NAA5SENSOR 0.36PSID 0.06" 8DIP |
0 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ELVH-L02D-HRRD-I-NAA4SENSOR 0.07PSID 0.06" 8DIP |
0 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | 0.07PSI (0.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
4515DO-DS5BS002DSSENSOR 0.07PSID 0.14" 14BIT |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | SPI | 14 b | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
PS04-G20KP-V4WSENSOR 2.9PSIG .15V |
4 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 2.9PSI (20kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS06-G10KP-5WSENSOR 1.45PSIG .15V |
1 |
|
Datasheet |
PS06 | Module | Box | Active | - | Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 40 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 2.89PSI (20kPa) | -40°C ~ 125°C | - | - | - | - |
|
BPS140-HA015P-1SGSENSOR 15PSIA 0.11" 4.95V |
0 |
|
Datasheet |
BPS140 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.11" (2.69mm) Tube | Barbless | - | Solder Pad | 30PSI (206.84kPa) | -40°C ~ 150°C | - | - | - | - |
|
DLHR-L30G-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
0 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

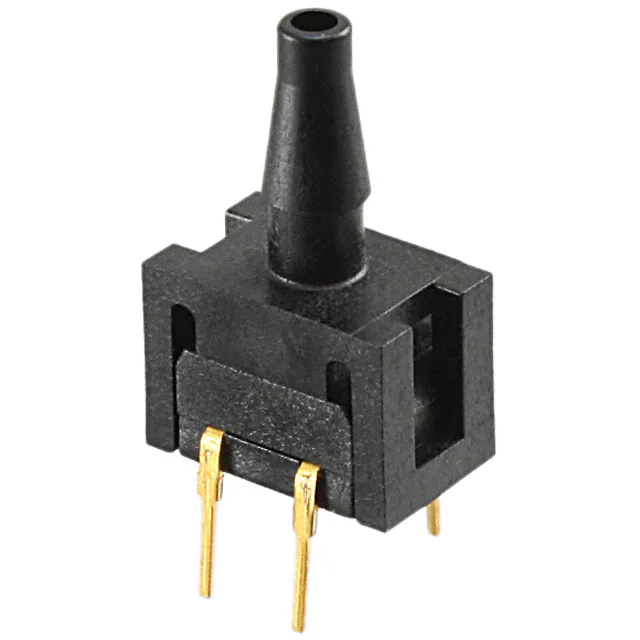

26PCCFB2GSENSOR 15PSIC 0.18" 0.1V |
1 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
PS01-G100MP-3WSENSOR 145.04PSIG 4.5V |
0 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 290.08PSI (2000kPa) | -40°C ~ 105°C | - | - | - | - |
|
ADP5201SENSOR 14.5PSIG 0.12" 4.5V |
0 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | ±14.5PSI (±100kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
NPI-19J-300A2SENSOR 300PSIA 1/8"NPT 14BIT |
0 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 300PSI (2068.43kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19J-030GVSENSOR 30PSIG 1/8"NPT 0.1V |
0 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
|
10 INCH-G-4VSENSOR 0.36PSIG 0.19" 4.25V |
0 |
|
Datasheet |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 0.36PSI (2.49kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
SDE5-D10-FP-Q6E-P-M8SENSOR 145.04PSI M8 |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SDE5-V1-FP-Q6-P-M8SENSOR 145.04PSI M8 |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
SDE5-D10-C-Q6E-P-M8SENSOR 145.04PSI M8 |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP-NC | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SDE5-D10-O-Q4-P-M8SENSOR 145.04PSI M8 |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP-NO | - | ±0.3% | 15V ~ 30V | Male - M8 | Threaded | - | - | - | 0°C ~ 50°C (TA) | - | - | - | - |
|
SDE5-D10-O-Q6E-P-KSENSOR 145.04PSI |
1 |
|
Datasheet |
- | Module | Bulk | Active | - | Vacuum | 145.04PSI (1000kPa) | PNP-NO | - | ±0.3% | 15V ~ 30V | - | Threaded | - | Wire Leads | - | 0°C ~ 50°C (TA) | - | - | - | - |
|

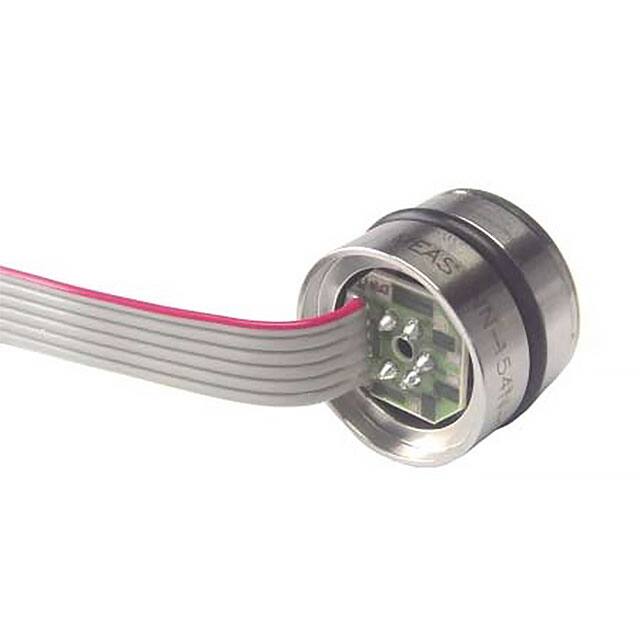

154N-300A-RSENSOR 300PSIA 0.1V |
0 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
89-01KA-0USENSOR 1000PSIA .208V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 1000PSI (6894.76kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 3000PSI (20684.27kPa) | -40°C ~ 125°C | - | - | - | - |
