Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
325541030-00SENSOR 435.1PSIA 16BIT |
32 |
|
Datasheet |
- | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 435.1PSI (3000kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 725.19PSI (5000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
77054-B01400135-01SWITCH 126PSI SPST-NC/NO 1/8"NPT |
0 |
|
- |
5000 | Cylinder, Threaded | Bulk | Obsolete | - | Switch | 101PSI ~ 126PSI (696.37kPa ~ 868.74kPa) | SPST-NC (1) NO (1) | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Connector | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
1220A-030G-3NSENSOR 30PSIG .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | - | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
24PCEFJ6GSENSOR 0.5PSIC 0.07" .035V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±0.5PSI (±3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 10V ~ 12V | Male - 0.07" (1.78mm) Tube | Needle | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
4515-SS5A020GPSENSOR PRESS GAUGE 20" H2O 8DIP |
11 |
|
Datasheet |
- | 8-DIP Module | Bulk | Active | - | Vented Gauge | 0.72PSI (4.98kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
ELVH-001D-HNNH-C-N2A4SENSOR 1.02PSID 14BIT |
10 |
|
Datasheet |
ELV | 4-SIP | Tray | Active | - | Differential | -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ADP42910SENSOR 142.24PSIG 0.1" .065V |
100 |
|
Datasheet |
PS | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 142.24PSI (980.7kPa) | Wheatstone Bridge | 0 mV ~ 65 mV | ±1% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 213.36PSI (1471.05kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42710SENSOR 71.11PSIG 0.1" 0.1V |
9 |
|
Datasheet |
PS | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ABP2DANT015PGAA5XXABP2 DIP AN 15SIG SILICONE GEL A |
78 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Medical Ventilation | Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.11" (2.79mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 240PSI (1654.74kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
ADP1271SENSOR 71.11PSIG 0.12" 0.1V |
100 |
|
Datasheet |
PF | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 71.11PSI (490.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 142.22PSI (980.57kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
KPY55-AKSENSOR 145.04PSIA 0.2" .13V TO8 |
100 |
|
Datasheet |
- | TO-8 Style, 8 Leads | Bulk | Active | Board Mount | Absolute | 145.04PSI (1000kPa) | Wheatstone Bridge | 0 mV ~ 130 mV | - | 12V | Male - 0.2" (5.1mm) Tube | Barbless | - | PC Pins | 435.11PSI (3000kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8-5 |
|
|
KPY52-AKSENSOR 8.7PSIA 0.2" .045V TO8-5 |
40 |
|
Datasheet |
- | TO-8 Style, 8 Leads | Bulk | Active | Board Mount | Absolute | 8.7PSI (60kPa) | Wheatstone Bridge | 0 mV ~ 45 mV | - | 12V | Male - 0.2" (5.1mm) Tube | Barbless | - | PC Pins | 87.02PSI (600kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8-5 |
|
|
KPY54-RKSENSOR 58.02PSI 0.2" .12V TO8-5 |
20 |
|
Datasheet |
- | TO-8 Style, 8 Leads | Bulk | Active | Board Mount | - | 58.02PSI (400kPa) | Wheatstone Bridge | 0 mV ~ 120 mV | - | 12V | Male - 0.2" (5.1mm) Tube | Barbless | - | PC Pins | 232.06PSI (1600kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8-5 |
|

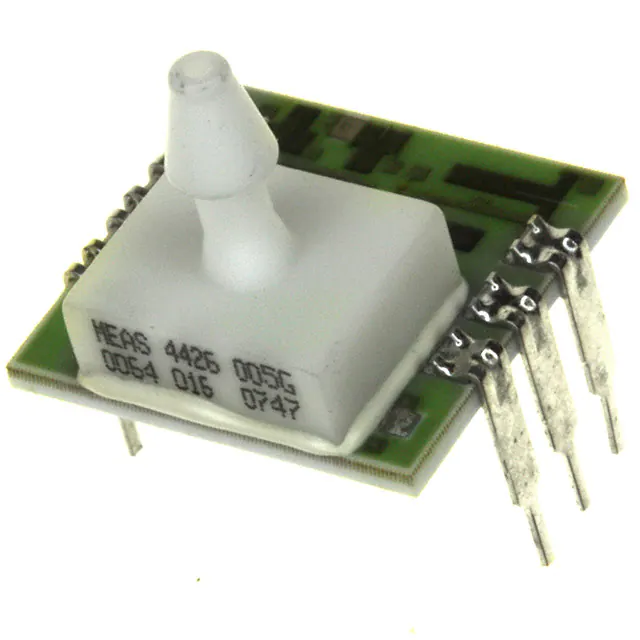

4426-005GSENSOR 5PSIG 0.13" .06V |
7 |
|
Datasheet |
4426 | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.15% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
76588-B00000100-01SWITCH 13PSI SPST-NC/NO 1/8"NPT |
0 |
|
- |
5000 | Cylinder, Threaded | Bulk | Obsolete | - | Switch | 8PSI ~ 13PSI (55.16kPa ~ 89.63kPa) | SPST-NC (1) NO (1) | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
ABPDANT060PGAA5Piezoresistive Sensor, Gage, 0Ps |
12 |
|
- |
ABP | 6-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Medical Ventilation | Gauge | 60PSI (413.69kPa) | Analog Voltage | - | ±0.25% | 3V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | - | PC Pins | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
4525-DS5A030DPSENSOR DIFF PRESS 30PSI PCB 8DIP |
11 |
|
Datasheet |
MS4525 | 8-DIP Module | Bulk | Active | - | Differential | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
ASDXACX015PA7A5SENSOR 15PSIA 0.09" 12BIT |
62 |
|
- |
ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
1451-030A-TSENSOR 30PSIA 0.09" .06V |
0 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | Male - 0.09" (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SSCMRRV100MD2A3Differential, -1.45Psi Min, 1.45 |
27 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
