Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG2452SENSOR 1450PSI 1/2" .02A |
5 |
|
Datasheet |
- | Module Box with Display | Box | Active | - | - | 1450.38PSI (10000kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.5% | 18V ~ 32V | Male - 1/2" (12.7mm) BSPP | Threaded | - | M12, 4 Pin | 9427.45PSI (65000kPa) | -20°C ~ 80°C | - | - | - | - |
|
PG2457SENSOR 14.5PSI 1/2" .02A |
2 |
|
Datasheet |
- | Module Box with Display | Box | Active | - | - | -0.73PSI ~ 14.5PSI (-5kPa ~ 100kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.5% | 18V ~ 32V | Male - 1/2" (12.7mm) BSPP | Threaded | - | M12, 4 Pin | 435.11PSI (3000kPa) | -20°C ~ 80°C | - | - | - | - |
|
PI2795SENSOR 58PSI 1" .02A |
2 |
|
Datasheet |
- | Module | Box | Active | - | Vacuum | -14.5PSI ~ 58PSI (-100kPa ~ 400kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12 | 1450.38PSI (10000kPa) | -25°C ~ 80°C | - | - | - | - |
|
200H-3-2-500/2500-46Mechanical Pressure Switch |
37 |
|
Datasheet |
200 | Cylinder, Threaded | Case | Active | Industrial Automation | Switch | 500PSI ~ 2500PSI (3447.38kPa ~ 17236.89kPa) | SPDT | - | - | - | Male - 1/4" (6.35mm) NPT | Threaded | - | Deutsch, 3 Pin | 9000PSI (62052.81kPa) | -20°C ~ 80°C | - | - | - | - |
|
NBPLLNN015PGUNVSENSOR 15PSIG 0.13" .075V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

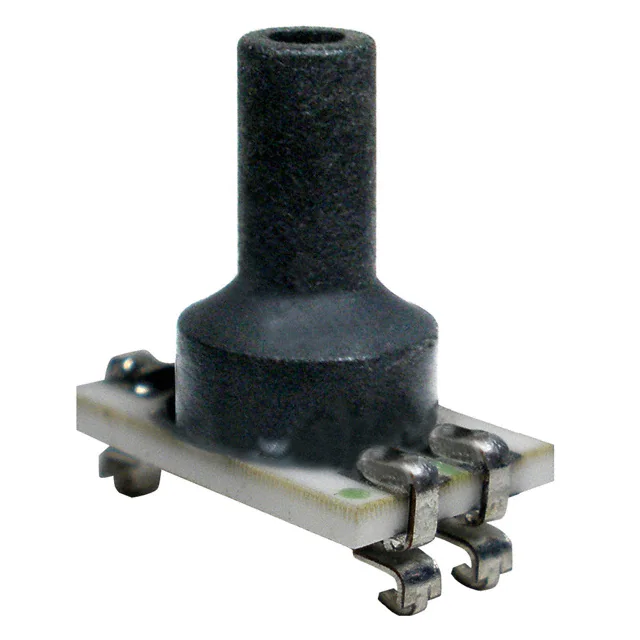

NBPMLNN060PGUNVSENSOR 60PSIG 0.13" .105V |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | J Lead | 120PSI (827.37kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
1451-005A-WSENSOR PRESSURE 5PSIA SMD |
64 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | - | No Port | - | SMD (SMT) Tab | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NBPMPNN030PAUNVSENSOR 30PSIA .105V |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | J Lead | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SXP30ASMTPSENSOR 30PSIA .099V 8SMD |
0 |
|
- |
SX SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 99 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SMD |
|
|
XGZP6899A100KPDNPressure Sensor 14.5PSI(-100~0kP |
79 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | -14.5PSI ~ 0PSI (-100kPa ~ 0kPa) | Analog | 0.5 V ~ 4.5 V | ±2% | 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | -14.5PSI (-100kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899A040KPDPNPressure Sensor 5.8PSI(-40~40kPa |
76 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | -5.8PSI ~ 5.8PSI (-40kPa ~ 40kPa) | Analog | 0.5 V ~ 4.5 V | ±2% | 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | 14.5PSI (100kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
TBPMANN060PGUCVSENSOR 60PSIG 0.08" .0065V 4SMT |
0 |
|
Datasheet |
TBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 6.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (2.54mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 145PSI (999.74kPa) | -40°C ~ 125°C | - | - | Surface Mount | 4-SMT |
|
MLX90809LXG-EAD-003-SPSENSOR 14.5PSID 4.5V 16SOIC |
38 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Bulk | Active | Board Mount | Differential | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | - | - | Surface Mount | 16-SOIC |
|
MPXV2202GC6T1SENSOR 29.01PSIG 0.13" .04V |
52 |
|
Datasheet |
MPX2202 | 8-SMD, Gull Wing, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NBPMLNN015PAUNVSENSOR 15PSIA 0.13" .075V |
0 |
|
Datasheet |
NBP | 4-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | J Lead | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
TBPDPNS100PGUCVSENSOR 100PSIG 0.26" .0255V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26" (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
NBPLLNS001PGUNVSENSOR 1PSIG 0.13" .0325V |
6 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
X213501ABPSENSOR PRESSURE 4.5 KPA |
50 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPVZ4006G7USENSOR 0.87PSIG 4.6V 8DIP |
55 |
|
Datasheet |
MPVZ4006G | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Through Hole | 8-DIP |
|
MPVZ7025G6USENSOR 3.63PSIC 4.7V |
53 |
|
Datasheet |
MPXV7025 | 8-SMD Module | Tray | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
