Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSCDANN015PAUNVSENSOR 15PSIA 0.19" .075V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCDLNN001PGUNVSENSOR 1PSIG 0.09" .0325V 8DIP |
0 |
|
- |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube | Barbless | - | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
D6F-PH5050AD4SENSOR 0.07PSID 0.19" 12BIT 4SIP |
40 |
|
Datasheet |
D6F-PH | 4-SIP, Dual Top Ports | Tray | Obsolete | - | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
BLCR-L20D-D4SENSOR 0.72PSID 0.12" .038V |
24 |
|
Datasheet |
BLCR | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.72PSI (±4.98kPa) | Analog Voltage | 0 mV ~ 38 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
BLCR-L10D-D4SENSOR 0.36PSID 0.12" .032V |
20 |
|
Datasheet |
BLCR | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | Analog Voltage | 0 mV ~ 32 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|

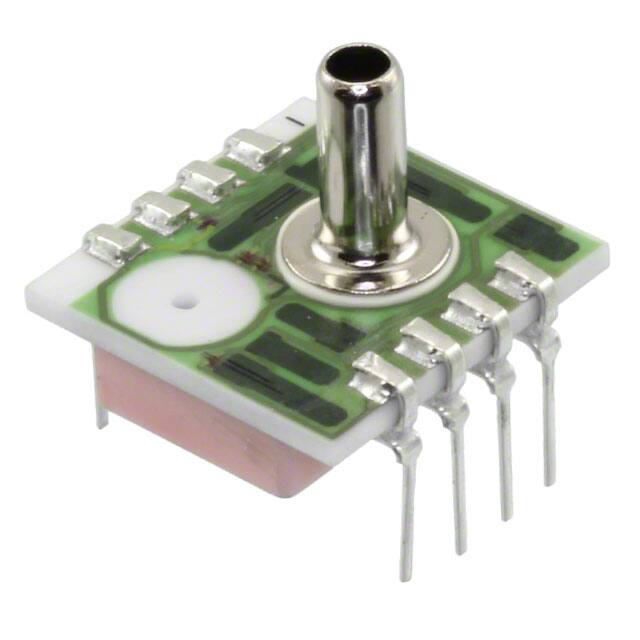

1210A-100G-3SSENSOR 100PSIG 0.13" 0.1V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

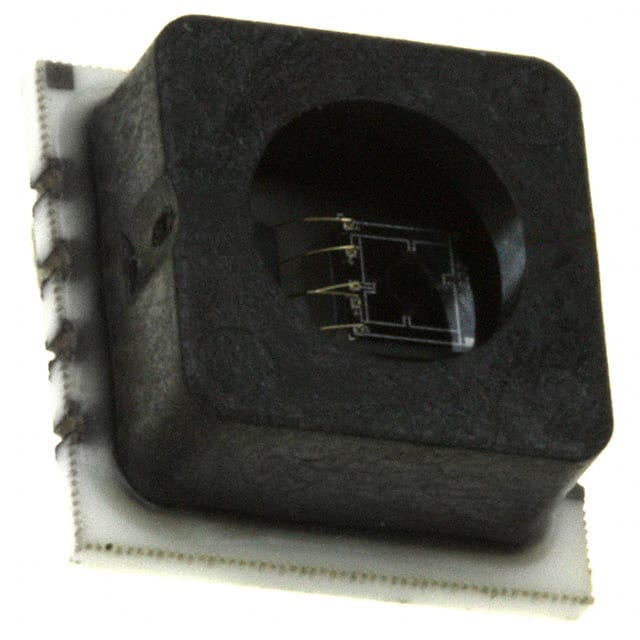

1451-050A-WSENSOR 50PSIA .06V |
20 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | - | No Port | - | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

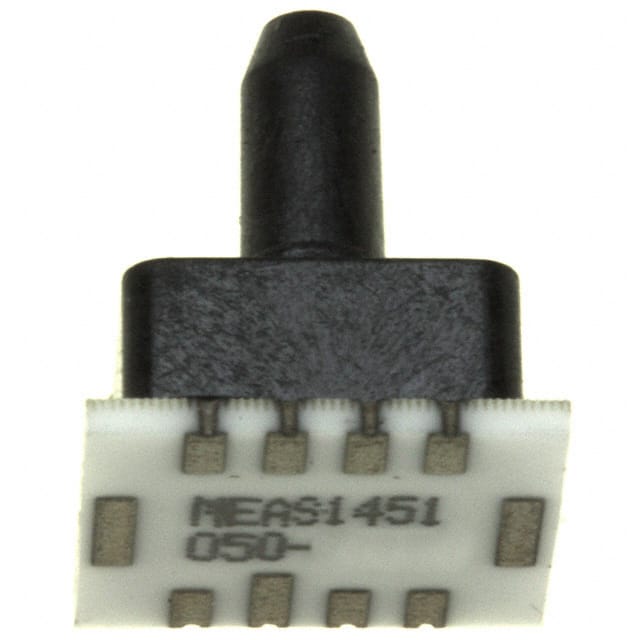

1451-050G-TSENSOR 50PSIG 0.09" .06V |
2 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | Male - 0.09" (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
ABPLLNV010BGSD3BASIC PRESSURE SENSOR |
0 |
|
- |
- | - | Bulk | Active | Medical Ventilation | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SSCMRND030PG2A3SENSOR 30PSIG 0.08" 12BIT 8SMT |
21 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCDANT015PGAA3SENSOR 15PSIG 0.19" 2.97V 8DIP |
72 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
24PCCFD6GSENSOR 15PSIC .225V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
1230-100D-3LSENSOR 100PSID 0.13" 0.1V |
0 |
|
Datasheet |
1230 | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NSCDRRN160MGUNVSENSOR 2.3PSIG 0.08" .0755V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 2.3PSI (15.86kPa) | Wheatstone Bridge | 0 mV ~ 75.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NSCDRRN001PGUNVSENSOR 1PSIG 0.08" .0325V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NSCDRRN030PDUNVSENSOR 30PSID 0.08" .207V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 207 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCSAAN100PDUCVSENSOR 100PSID 0.19" .06V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Discontinued at Digi-Key | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±245PSI (±1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NPA-100B-005DSENSOR 5PSID 0.12" .166V |
100 |
|
Datasheet |
NPA-100 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 100 mV ~ 166 mV | ±1.5% | - | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
TBPDANS005PGUCVSENSOR 5PSIG 0.11" .025V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
1210A-030D-3SSENSOR 30PSID 0.13" 0.1V |
0 |
|
Datasheet |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.13" (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
