Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABPDANT150PG4A5ABPDANT150PG4A5 |
0 |
|
- |
- | - | Bulk | Discontinued at Digi-Key | Medical Ventilation | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADP51B61SENSOR 0.87PSIG 0.12" 5V |
22 |
|
Datasheet |
PS-A | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0 V ~ 5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 1.74PSI (12kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
325401001-00SENSOR 14.5PSIA .24V |
0 |
|
Datasheet |
- | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 240 mV (5V) | ±0.4% | 20V | - | No Port | - | SMD (SMT) Tab | 72.52PSI (500kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
BLC-L30D-U2SENSOR 1.08PSIG 0.12" .042V |
17 |
|
Datasheet |
BLC | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±1.08PSI (±7.47kPa) | Analog Voltage | 0 mV ~ 42 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
BLC-L10D-U2SENSOR 0.36PSIG 0.12" .032V |
12 |
|
Datasheet |
BLC | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.36PSI (±2.5kPa) | Analog Voltage | 0 mV ~ 32 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|

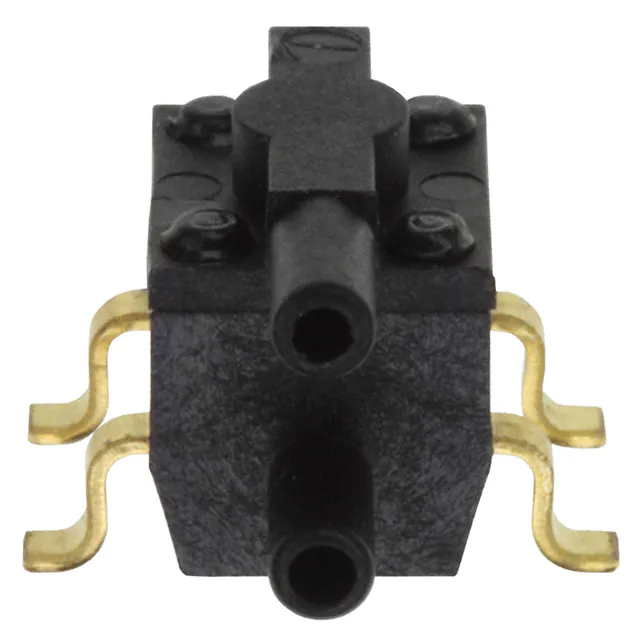

24PC05SMTSENSOR 5PSID 0.07" .115V |
35 |
|
Datasheet |
24PC SMT | 4-SMD Module | Tube | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 115 mV (10V) | ±0.2% | 2.5V ~ 12V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | - | Gull Wing | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
MLX90830-LXG-BAG-003-SPMEMS PRESSURE SENSORS |
10 |
|
Datasheet |
- | - | Tray | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

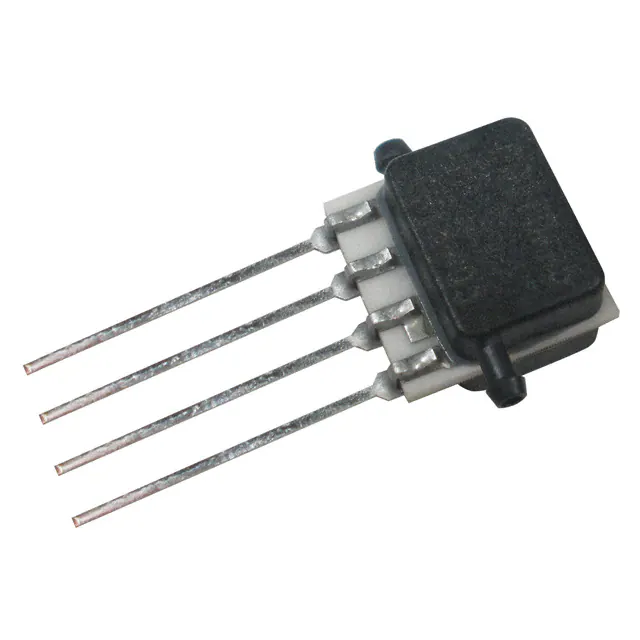

NSCSDRN060MDUNVSENSOR 0.87PSID 0.19" .0565V SIP |
18 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | Wheatstone Bridge | 0 mV ~ 56.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MPX2053DSENSOR 7.25PSID .04V 4SIP |
24 |
|
Datasheet |
MPX2053 | 4-SIP Module | Tray | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NPA-300B-005GSENSOR 5PSIG 0.12" 3V |
15 |
|
Datasheet |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 2 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-600B-015DSENSOR 15PSID 0.12" 14BIT |
11 |
|
Datasheet |
NPA-600 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 15PSI (103.42kPa) | ZACwire™ | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

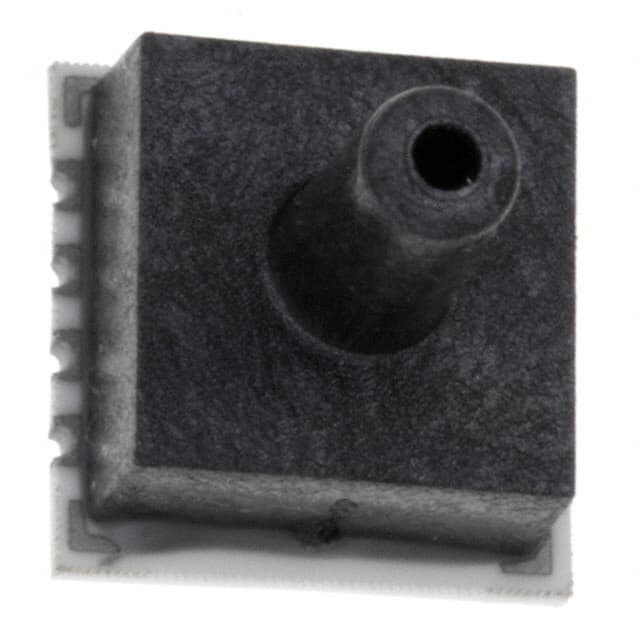

SCCP30ASMTPSENSOR 30PSIA 0.08" .15V |
0 |
|
Datasheet |
SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
24PCGNH6GSENSOR 250PSIC M5 .212V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - M5 | Threaded | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

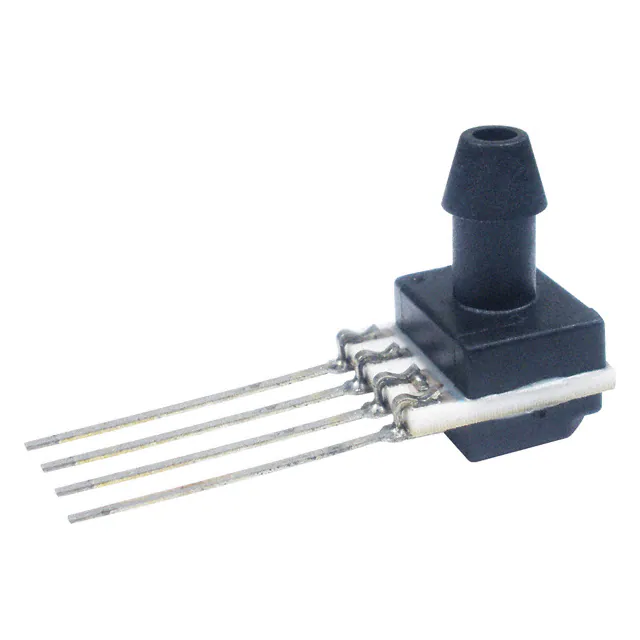

NSCSANN015PAUNVSENSOR 15PSIA 0.19" .075V 4SIP |
13 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
BLC-L05D-D4SENSOR 0.18PSID 0.12" .024V |
23 |
|
Datasheet |
BLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0 mV ~ 24 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
BLC-L30D-D4SENSOR 1.08PSID 0.12" .042V |
21 |
|
Datasheet |
BLC | 16-SOIC Module, Dual Top Ports | Tube | Active | Board Mount | Differential | ±1.08PSI (±7.47kPa) | Analog Voltage | 0 mV ~ 42 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
D6F-PH5050AMD4SENSOR 0.07PSID 0.16" 12BIT 4SIP |
86 |
|
Datasheet |
D6F-PH | 4-SIP, Dual Top Ports | Tray | Obsolete | - | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.16" (4mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
NSCSRRN004BGUNVSENSOR 58.02PSIG 0.08" 0.1V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 58.02PSI (400kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.92mm) Tube, Dual | Barbed | - | PC Pin | 116.03PSI (800kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN060MGUNVSENSOR 0.87PSIG 0.19" .0285V SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Wheatstone Bridge | 0 mV ~ 28.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSANN600MGUNVSENSOR 8.7PSIG 0.19" .045V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 8.7PSI (60kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 29.88PSI (206kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
