Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NH065MAGNET 0.630"D X 0.630"THICK CYL |
15 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Aluminum, Steel | - | - | 0.630" Dia x 0.630" H (16.00mm x 16.00mm) | - |
|
55.1-ND-48-15-5MAGNET 1.890"D X 0.197"THICK RND |
15 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel | - | - | 1.890" Dia x 0.197" H (48.00mm x 5.00mm) | 80°C (TA) |
|
N813MAGNET 0.39"DIAX0.20"H CYL PK10 |
23 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.39" Dia x 0.20" H (10.0mm x 5.0mm) | - |
|

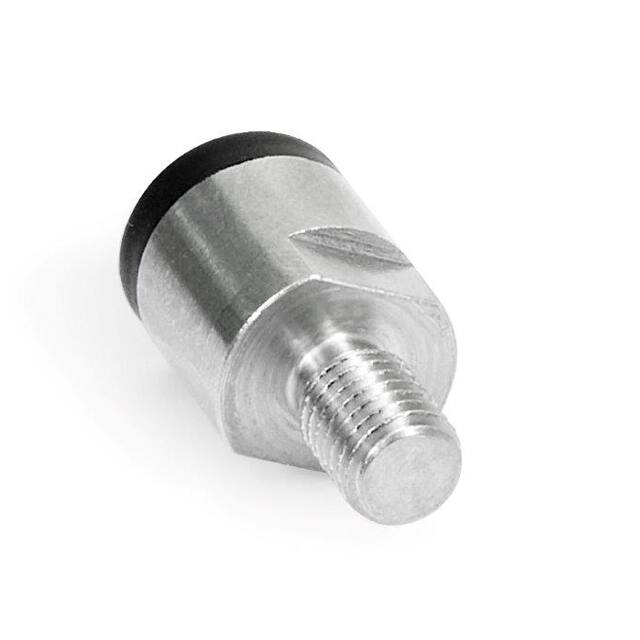

52.5-ND-20-M10MAGNET 0.787"D X 0.787"THICK CYL |
14 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Stainless Steel | - | - | 0.787" Dia x 0.787" H (20.00mm x 20.00mm) | 80°C (TA) |
|
E766SMCO SHALLOW POT 25X7MM |
10 |
|
- |
- | Box | Active | Cylindrical | Diametric | Samarium Cobalt (SmCo5) | Zinc | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 200°C |
|
60-AN-32MAGNET 1.260"D X 1.000"THICK CYL |
17 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 1.260" Dia x 1.000" H (32.00mm x 25.40mm) | 280°C (TA) |
|
LP2100RECT CERAMIC MAG 3/8"TX3.25"L, 1 |
49 |
|
Datasheet |
- | Bag | Active | Rectangular | Axial | Strontium Ferrite (SrFe) | Stainless Steel | Grade 8 | - | - | 148°C (300°F) |
|
51.6-ND-57-32-M6MAGNET 2.244"D X 0.445"THICK RND |
40 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 2.244" Dia x 0.445" H (57.00mm x 11.30mm) | 80°C (TA) |
|
|
N843MAGNET 0.591"DX0.039"H CYL 50PK |
35 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.591" Dia x 0.039" H (15.00mm x 1.00mm) | - |
|
828MAGNET 1.500"D X 0.407"THICK CYL |
15 |
|
Datasheet |
- | Retail Package | Active | Cylindrical | - | Alnico (AlNiCo) | Steel | - | - | 1.500" Dia x 0.407" H (38.10mm x 10.35mm) | 450°C |
|
YB-066-1MAGNET 2.283"D X 0.404"THICK CYL |
10 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Epoxy, Zinc | N35 | 11700G, 12200G | 2.283" Dia x 0.404" H (58.00mm x 10.25mm) | 80°C (TA) |
|

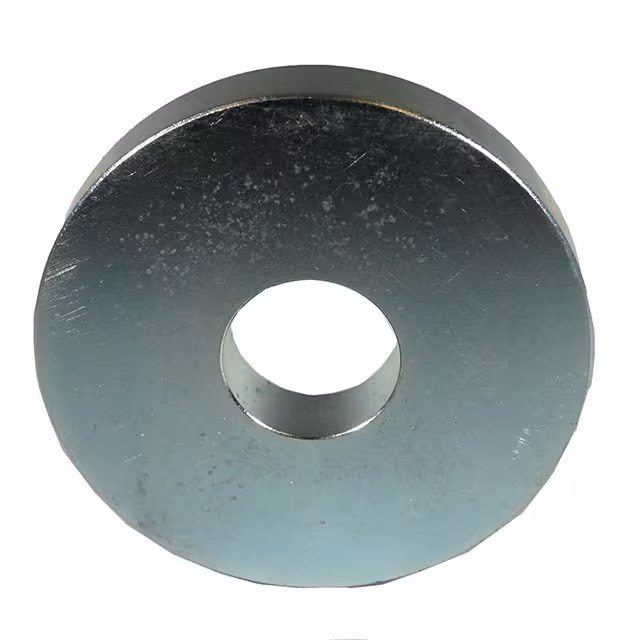

YB-068-1MAGNET 2.356"D X 0.400"THICK RND |
8 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | Epoxy, Zinc | N38SH | 12200G, 12600G | 2.356" Dia x 0.400" H (59.84mm x 10.16mm) | 150°C (TA) |
|
|
N829MAGNET 0.591"D X 0.197"H CYL 5PK |
13 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.591" Dia x 0.197" H (15.00mm x 5.00mm) | - |
|
|
N831MAGNET 0.984"D X 0.197"H CYL 5PK |
13 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.984" Dia x 0.197" H (25.00mm x 5.00mm) | - |
|
62-AN-39STEEL U-SHAPED MAGNET |
19 |
|
Datasheet |
- | Box | Active | - | - | Alnico (AlNiCo) | - | - | - | - | 350°C (TA) |
|

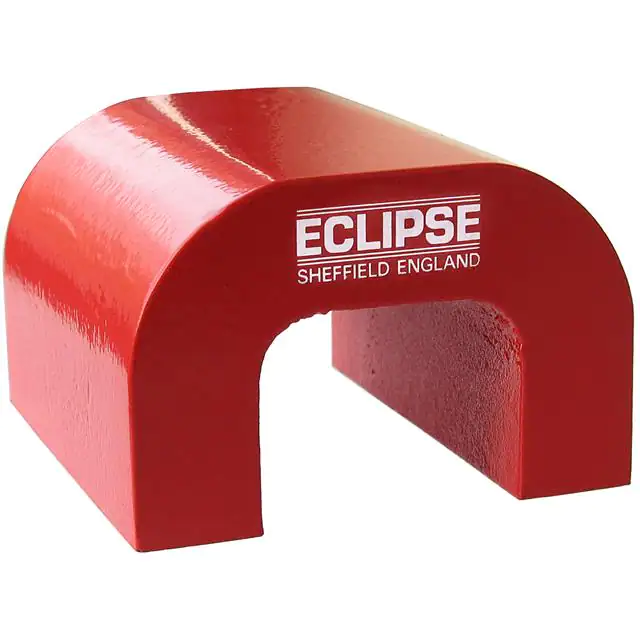

812MAGNET 1.575"LX0.984"WX0.984"H |
35 |
|
Datasheet |
- | Box | Active | Rectangular | - | Alnico 5 (AlNiCo) | - | - | - | 1.575" L x 0.984" W x 0.984" H (40.00mm x 25.00mm x 25.00mm) | 550°C |
|
834MAGNET 1.378"D X 1.181"THICK CYL |
14 |
|
Datasheet |
- | Retail Package | Active | Cylindrical | - | Alnico (AlNiCo) | Aluminum, Steel | - | - | 1.378" Dia x 1.181" H (35.00mm x 30.00mm) | 220°C |
|
M52173/24VDCMAGNET 1.181"D X 0.945"THICK CYL |
9 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 1.181" Dia x 0.945" H (30.00mm x 24.00mm) | - |
|
|
N830MAGNET 0.787"D X 0.197"H CYL 5PK |
13 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.787" Dia x 0.197" H (20.00mm x 5.00mm) | - |
|
|
MRA030X0050X100MAGNET 100' LX0.500" WX0.031" H |
29 |
|
Datasheet |
Mag-Mate® | Bag | Active | Flat Strip | - | Strontium Ferrite (SrFe) | - | - | - | 100.00' L x 0.500" W x 0.031" H (30.48m x 12.70mm x 0.079mm) | 71°C |
