Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M52183/24VDCMAGNET 3.150"D X 1.496"THICK CYL |
3 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 3.150" Dia x 1.496" H (80.00mm x 38.00mm) | - |
|
|
M52183/12VDCMAGNET 3.150"D X 1.496"THICK CYL |
5 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 3.150" Dia x 1.496" H (80.00mm x 38.00mm) | - |
|
55.3-AN-34-80MAGNET 1.339"D X 0.472"THICK CYL |
12 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 1.339" Dia x 0.472" H (34.00mm x 12.00mm) | - |
|

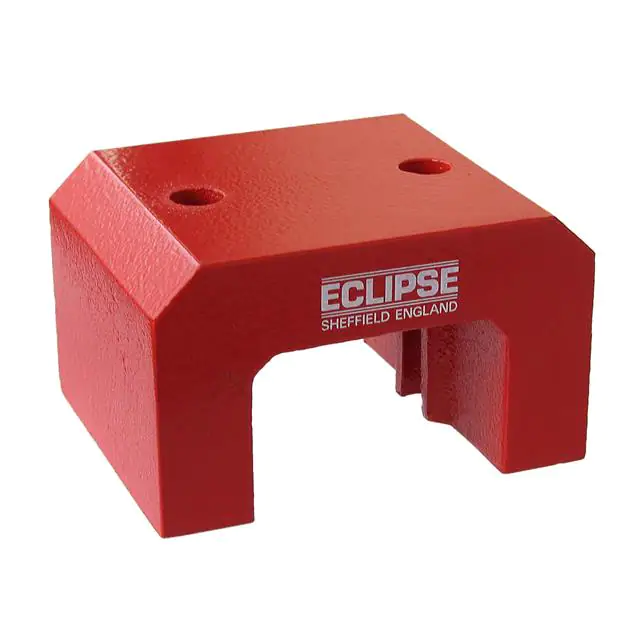

815MAGNET 2.756"LX2.252"WX1.626"H |
9 |
|
Datasheet |
- | Box | Active | Rectangular | - | Alnico (AlNiCo) | - | - | - | 2.756" L x 2.252" W x 1.626" H (70.00mm x 57.20mm x 41.30mm) | - |
|
M52177/24VDCMAGNET 1.378"D X 1.890"THICK CYL |
4 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 1.378" Dia x 1.890" H (35.00mm x 48.00mm) | - |
|
|
M52184/12VDCMAGNET 3.937"D X 1.693"THICK CYL |
4 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 3.937" Dia x 1.693" H (100.00mm x 43.00mm) | - |
|
|
M52178/240VAMAGNET 1.969"D X 2.480"THICK CYL |
2 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 1.969" Dia x 2.480" H (50.00mm x 63.00mm) | - |
|
|
816MAGNET 3.126"LX3.252"WX2.126"H |
5 |
|
Datasheet |
- | Box | Active | Rectangular | - | Alnico (AlNiCo) | - | - | - | 3.126" L x 3.252" W x 2.126" H (79.40mm x 82.60mm x 54.00mm) | - |
|
|
M52178/24VDCMAGNET 1.969"D X 2.480"THICK CYL |
12 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 1.969" Dia x 2.480" H (50.00mm x 63.00mm) | - |
|
862ALNICO MAJOR 103.5X50X111MM |
2 |
|
Datasheet |
- | Bag | Active | Rectangular | Axial, Pot | Alnico (AlNiCo) | - | - | 2000G | 4.075" L x 1.969" W x 4.370" H (103.50mm x 50.00mm x 111.00mm) | - |
|
|
NE3106NP35MAGNET 0.310"D X 0.062"THICK RND |
200 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.310" Dia x 0.062" H (7.87mm x 1.57mm) | 82.2°C |
|
CM-0007MAGNET 0.709"D X 0.197"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | - | C8 | - | 0.709" Dia x 0.197" H (18.01mm x 5.00mm) | 300°C |
|
EA-0107MAGNET 0.250"D X 0.100"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 0.250" Dia x 0.100" H (6.35mm x 2.54mm) | - |
|
|
NE2225NP35MAGNET 0.220"D X 0.250"THICK CYL |
400 |
|
Datasheet |
Mag-Mate® | Bag | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.220" Dia x 0.250" H (5.59mm x 6.35mm) | 82.2°C |
|
CM-0499MAGNET 1.000"D X 0.157"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | - | C8 | - | 1.000" Dia x 0.157" H (25.40mm x 4.00mm) | 300°C |
|
|
NE3710NP35MAGNET 0.375"D X 0.100"THICK RND |
500 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.100" H (9.53mm x 2.54mm) | 82.2°C |
|
CM-0559MAGNET 1.000"D X 0.157"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | - | C8 | - | 1.000" Dia x 0.157" H (25.40mm x 4.00mm) | 300°C |
|
|
NE2518NP35MAGNET 0.250"D X 0.187"THICK RND |
400 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.250" Dia x 0.187" H (6.35mm x 4.75mm) | 82.2°C |
|
EA-0112MAGNET 0.250"D X 0.200"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 0.250" Dia x 0.200" H (6.35mm x 5.00mm) | - |
|
|
NE5006NP35MAGNET 0.500"D X 0.062"THICK RND |
150 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.500" Dia x 0.062" H (12.70mm x 1.57mm) | 82.2°C |
