Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G32-B-945-85-0120MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-B-0750-85-100MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-B-0625-85-120MAGNET 2.005"D X 0.250"THICK CYL |
49 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
52.2-AN-25MAGNET 0.984"D X 1.378"THICK CYL |
16 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.984" Dia x 1.378" H (25.00mm x 35.00mm) | 450°C (TA) |
|
E872MAGNET 3.150"D X 0.709"THICK CYL |
11 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | Steel, Zinc | - | - | 3.150" Dia x 0.709" H (80.00mm x 18.00mm) | 120°C |
|
E1005/NEOMAGNET 1.890"D X 0.453"THICK CYL |
19 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.890" Dia x 0.453" H (48.00mm x 11.50mm) | - |
|
NH025MAGNET 0.500"D X 0.472"THICK CYL |
12 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Aluminum, Steel | - | - | 0.500" Dia x 0.472" H (12.70mm x 12.00mm) | - |
|
52.5-ND-16-M8MAGNET 0.630"D X 0.709"THICK CYL |
6 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Stainless Steel | - | - | 0.630" Dia x 0.709" H (16.00mm x 18.00mm) | 80°C (TA) |
|
55.1-SC-32-10.5-4MAGNET 1.260"D X 0.157"THICK RND |
9 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel | - | - | 1.260" Dia x 0.157" H (32.00mm x 4.00mm) | 200°C (TA) |
|

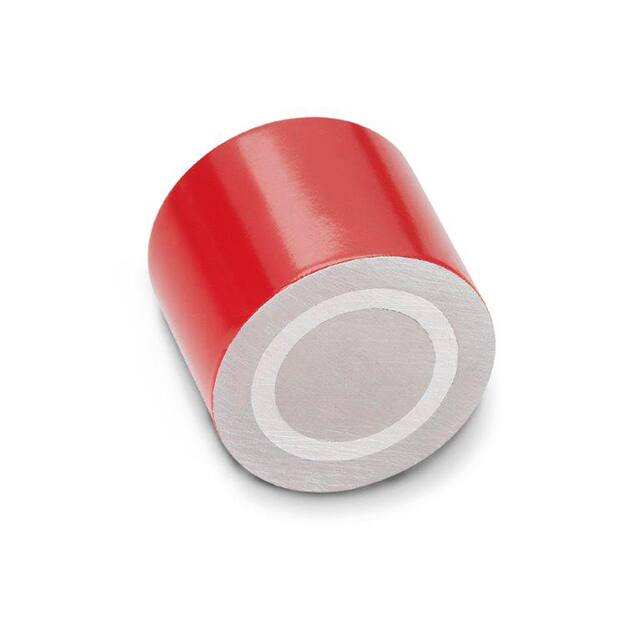

52.3-AN-35-RTMAGNET 1.378"D X 1.181"THICK CYL |
26 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Stainless Steel | - | - | 1.378" Dia x 1.181" H (35.00mm x 30.00mm) | 350°C (TA) |
|

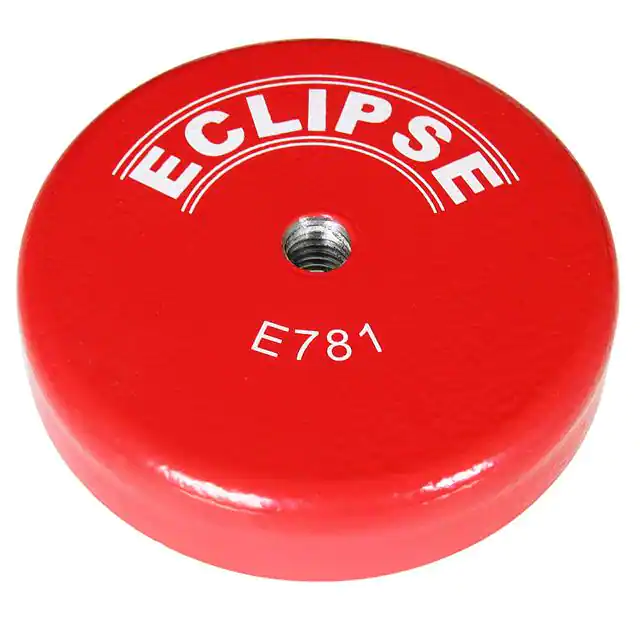

E781MAGNET 3.150"D X 0.709"THICK CYL |
8 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | Steel | - | - | 3.150" Dia x 0.709" H (80.00mm x 18.00mm) | 120°C |
|
51.2-ND-66-M5-SWMAGNET 2.598"D X 0.335"THICK RND |
8 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 2.598" Dia x 0.335" H (66.00mm x 8.50mm) | 80°C (TA) |
|

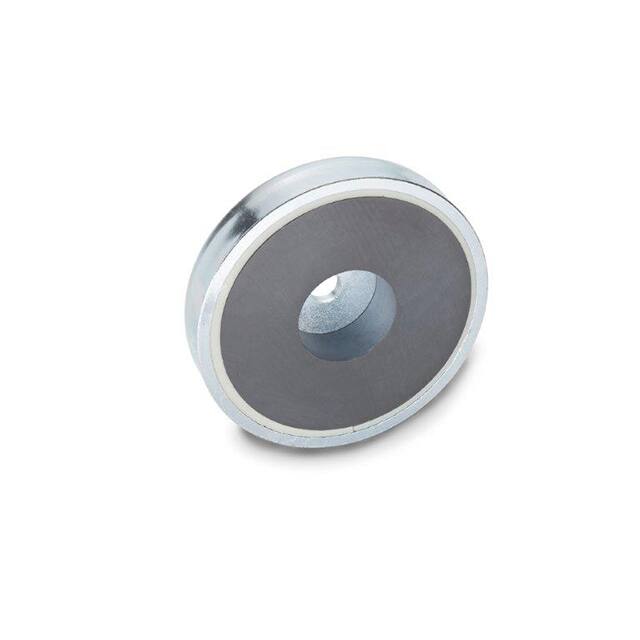

50.4-HF-80-18-6.5MAGNET 3.150"D X 0.709"THICK RND |
43 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 3.150" Dia x 0.709" H (80.00mm x 18.00mm) | 200°C (TA) |
|
52.1-ND-32-1MAGNET 1.260"D X 1.575"THICK CYL |
25 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 1.260" Dia x 1.575" H (32.00mm x 40.00mm) | 80°C (TA) |
|
|
CMP151212P2ADHMAGNET 1.500"D X 0.125"THICK RND |
20 |
|
Datasheet |
Max-Attach® | Bag | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.500" Dia x 0.125" H (38.10mm x 3.18mm) | 82.2°C |
|
833MAGNET 1.063"D X 0.984"THICK CYL |
7 |
|
Datasheet |
- | Retail Package | Active | Cylindrical | - | Alnico (AlNiCo) | Aluminum, Steel | - | - | 1.063" Dia x 0.984" H (27.00mm x 25.00mm) | 220°C |
|
51.4-ND-66-SWMAGNET 2.598"D X 0.335"THICK RND |
34 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 2.598" Dia x 0.335" H (66.00mm x 8.50mm) | 80°C (TA) |
|
G58-B-1875-25-050MAGNET 3.606"D X 0.620"THICK CYL |
17 |
|
Datasheet |
G58 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 3.606" Dia x 0.620" H (91.59mm x 15.75mm) | 125°C (TA) |
|
|
G58-B-2125-25-032MAGNET 3.606"D X 0.620"THICK CYL |
17 |
|
Datasheet |
G58 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 3.606" Dia x 0.620" H (91.59mm x 15.75mm) | 125°C (TA) |
|
|
G58-B-1750-25-032MAGNET 3.606"D X 0.620"THICK CYL |
17 |
|
Datasheet |
G58 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 3.606" Dia x 0.620" H (91.59mm x 15.75mm) | 125°C (TA) |
