Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62-AN-22STEEL U-SHAPED MAGNET |
7 |
|
Datasheet |
- | Box | Active | - | - | Alnico (AlNiCo) | - | - | - | - | 350°C (TA) |
|
E754MAGNET 0.630"D X 0.787"THICK CYL |
40 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Samarium Cobalt (SmCo5) | Brass | - | - | 0.630" Dia x 0.787" H (16.00mm x 20.00mm) | 200°C |
|
52.2-ND-25MAGNET 0.984"D X 1.378"THICK CYL |
26 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.984" Dia x 1.378" H (25.00mm x 35.00mm) | 80°C (TA) |
|
N806MAGNET 0.197"DX0.197"H CYL PK10 |
7 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.197" Dia x 0.197" H (5.00mm x 5.00mm) | - |
|
832MAGNET 0.807"D X 0.748"THICK CYL |
34 |
|
Datasheet |
- | Retail Package | Active | Cylindrical | - | Alnico (AlNiCo) | Aluminum, Steel | - | - | 0.807" Dia x 0.748" H (20.50mm x 19.00mm) | 220°C |
|
|
N828MAGNET 0.472"DX0.118"H CYL 10PK |
12 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.472" Dia x 0.118" H (12.00mm x 3.00mm) | - |
|
E1066/NEOMAGNET 1.102" DIA X 0.551" H CYL |
25 |
|
Datasheet |
- | Bag | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.102" Dia x 0.551" H (28.00mm x 14.00mm) | 80°C |
|
50.1-SC-25-7MAGNET 0.984"D X 0.276"THICK RND |
25 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 200°C (TA) |
|
251.6-M16-80-NDMAGNET 0.945"D X 0.394"THICK CYL |
20 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.945" Dia x 0.394" H (24.00mm x 10.00mm) | 80°C (TA) |
|
51.7-ND-31-AMAGNET 1.220"D X 0.236"THICK RND |
9 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | - | - | 1.220" Dia x 0.236" H (31.00mm x 6.00mm) | 80°C (TA) |
|
M52180/12VDCMAGNET 0.787"D X 0.709"THICK CYL |
9 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 0.787" Dia x 0.709" H (20.00mm x 18.00mm) | - |
|
51.7-ND-43-AMAGNET 1.693"D X 0.217"THICK RND |
10 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | - | - | 1.693" Dia x 0.217" H (43.00mm x 5.50mm) | 80°C (TA) |
|
E807MAGNET 0.394"D X 1.181"THICK CYL |
8 |
|
Datasheet |
- | Retail Package | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.394" Dia x 1.181" H (10.00mm x 30.00mm) | - |
|
55.1-ND-38-12-4MAGNET 1.496"D X 0.157"THICK RND |
20 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel | - | - | 1.496" Dia x 0.157" H (38.00mm x 4.00mm) | 80°C (TA) |
|
62-AN-30STEEL U-SHAPED MAGNET |
14 |
|
Datasheet |
- | Box | Active | - | - | Alnico (AlNiCo) | - | - | - | - | 350°C (TA) |
|
|
E1035/NEONDFEB SHALLOW POT 32X7MM, HOOK |
8 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.260" Dia x 1.181" H (32.00mm x 30.00mm) | 80°C |
|
E871MAGNET 2.480"D X 0.551"THICK CYL |
25 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 2.480" Dia x 0.551" H (63.00mm x 14.00mm) | 120°C |
|

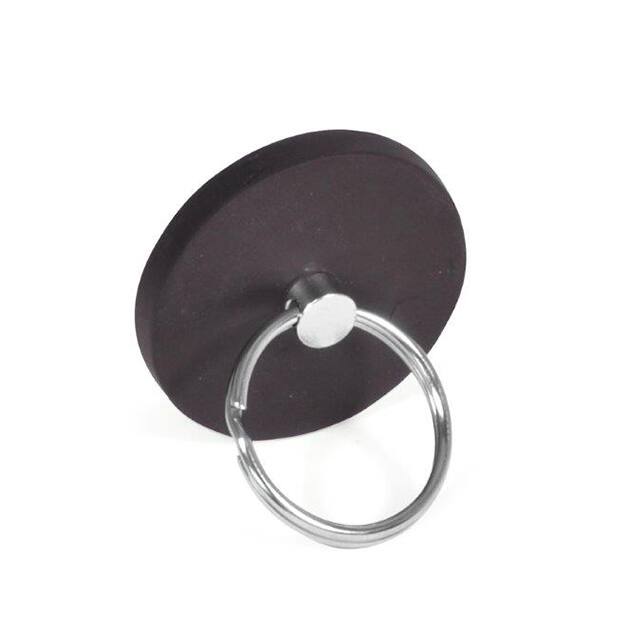

51.7-ND-43-BMAGNET 1.693"D X 0.217"THICK RND |
25 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | - | - | 1.693" Dia x 0.217" H (43.00mm x 5.50mm) | 80°C (TA) |
|
51.7-ND-31-BMAGNET 1.220"D X 0.236"THICK RND |
10 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | - | - | 1.220" Dia x 0.236" H (31.00mm x 6.00mm) | 80°C (TA) |
|
52.1-AN-25-1MAGNET 0.984"D X 1.378"THICK CYL |
29 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.984" Dia x 1.378" H (25.00mm x 35.00mm) | 450°C (TA) |
