Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSM-225MAGNET 0.197"D X 0.980"THICK CYL |
354 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11050G | 0.197" Dia x 0.980" H (5.00mm x 24.90mm) | 85°C (TA) |
|
MSM-2431MAGNET 0.366"D X 1.220"THICK CYL |
407 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | - | N35H | 11900G | 0.366" Dia x 1.220" H (9.30mm x 31.00mm) | 85°C (TA) |
|

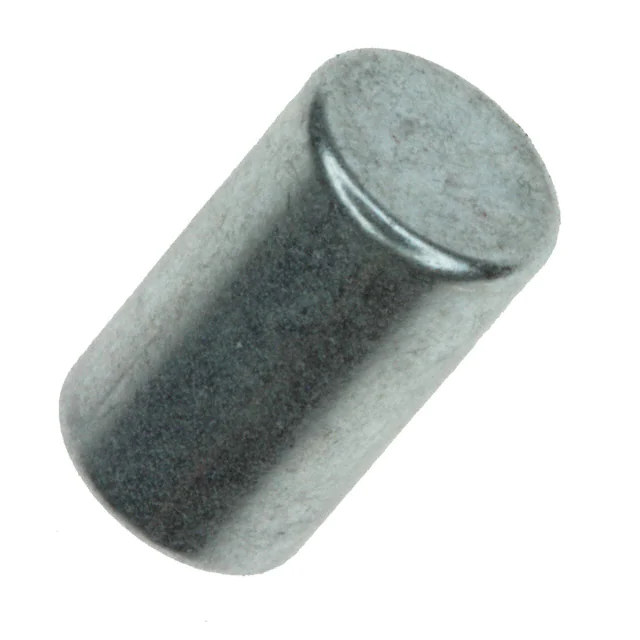

NDFEB 6X10MMMAGNET 0.236"D X 0.394"THICK CYL |
630 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | - | - | - | 0.236" Dia x 0.394" H (6.00mm x 10.0mm) | 160°C (TA) |
|
G10-A-0315-75-024MAGNET 0.628"D X 0.200"THICK CYL |
127 |
|
Datasheet |
G10 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 0.628" Dia x 0.200" H (15.95mm x 5.08mm) | 125°C (TA) |
|
|
G10-A-0197-75-024MAGNET 0.628"D X 0.200"THICK CYL |
118 |
|
Datasheet |
G10 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 0.628" Dia x 0.200" H (15.95mm x 5.08mm) | 125°C (TA) |
|

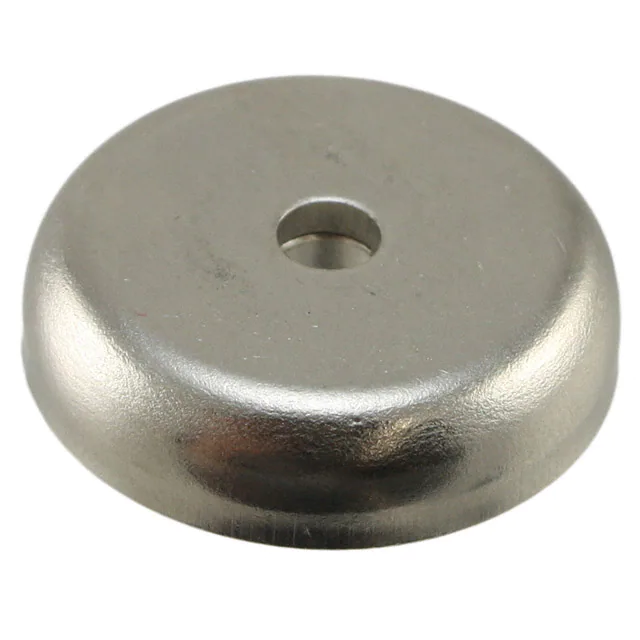

8220MAGNET 1.260"D X 0.310"THICK RND |
113 |
|
Datasheet |
- | Box | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5358G (Surface Gauss) | 1.260" Dia x 0.310" H (32.0mm x 8.00mm) | 80°C (TA) |
|
MSM-2212MMAGNET 0.472"D X 1.496"THICK CYL |
200 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11050G | 0.472" Dia x 1.496" H (12.00mm x 38.00mm) | 85°C (TA) |
|
790178420MM MAGNET W/MGT HOLE |
497 |
|
Datasheet |
- | Bulk | Active | Round | Axial, Pot | - | - | - | - | - | - |
|
101MG7MAGNET 0.248"D X 0.248"THICK CYL |
115 |
|
Datasheet |
MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.248" Dia x 0.248" H (6.30mm x 6.30mm) | 250°C (TA) |
|
G08-H-0157-75-016MAGNET 0.500"D X 0.300"THICK CYL |
150 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0250-75-016MAGNET 0.500"D X 0.300"THICK CYL |
150 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0188-75-016MAGNET 0.500"D X 0.300"THICK CYL |
150 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0250-50-012MAGNET 0.500"D X 0.300"THICK CYL |
150 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0125-75-020MAGNET 0.500"D X 0.300"THICK CYL |
150 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0125-25-008MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0125-50-012MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0157-50-012MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0157-75-020MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0236-25-008MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | - | - | - | - | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
|
|
G08-H-0197-50-012MAGNET 0.500"D X 0.300"THICK CYL |
149 |
|
Datasheet |
G8 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 0.500" Dia x 0.300" H (12.70mm x 7.62mm) | 125°C (TA) |
