Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSM-313MAGNET 0.500"LX0.138"WX0.390"H |
468 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Acrylonitrile Butadiene Styrene (ABS) | N48H | 13950G | 0.500" L x 0.138" W x 0.390" H (12.70mm x 3.50mm x 9.90mm) | 85°C (TA) |
|
H-36-MAGNETMAGNET 0.182"D X 1.000"THICK CYL |
109 |
|
Datasheet |
- | Tray | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 12800G (Flux Density) | 0.182" Dia x 1.000" H (4.62mm x 25.4mm) | 450°C (TA) |
|
MSM-332MAGNET 1.260"LX0.236"WX0.394"H |
699 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Acrylonitrile Butadiene Styrene (ABS) | N30H | 11050G | 1.260" L x 0.236" W x 0.394" H (32.00mm x 6.00mm x 10.00mm) | 85°C (TA) |
|
9168MAGNET 1.500"LX0.250"WX0.250"H |
181 |
|
Datasheet |
- | Bulk | Active | Rectangular | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 3799.69G | 1.500" L x 0.250" W x 0.250" H (38.10mm x 6.35mm x 6.35mm) | 80°C (TA) |
|
9161MAGNET 1.000"D X 0.125"THICK CYL |
6,183 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 1803G | 1.000" Dia x 0.125" H (25.40mm x 3.18mm) | 80°C (TA) |
|

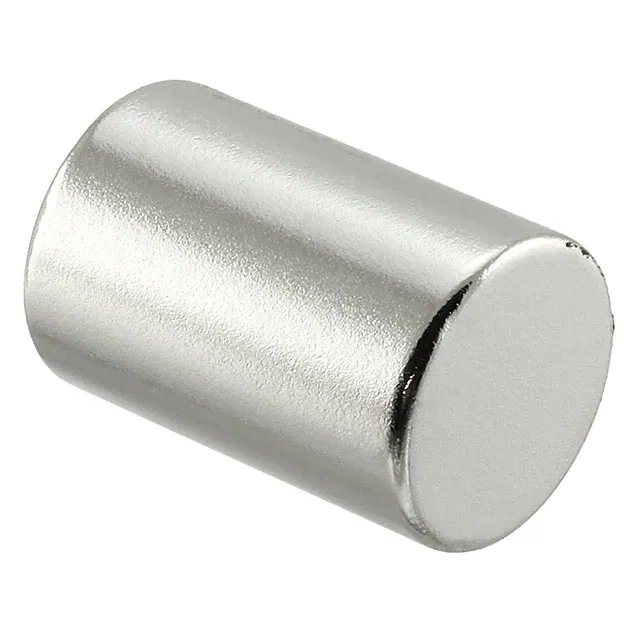

8197MAGNET 0.500"D X 0.750"THICK CYL |
166 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | - | - | 5505G (Surface Gauss) | 0.500" Dia x 0.750" H (12.7mm x 19.0mm) | - |
|

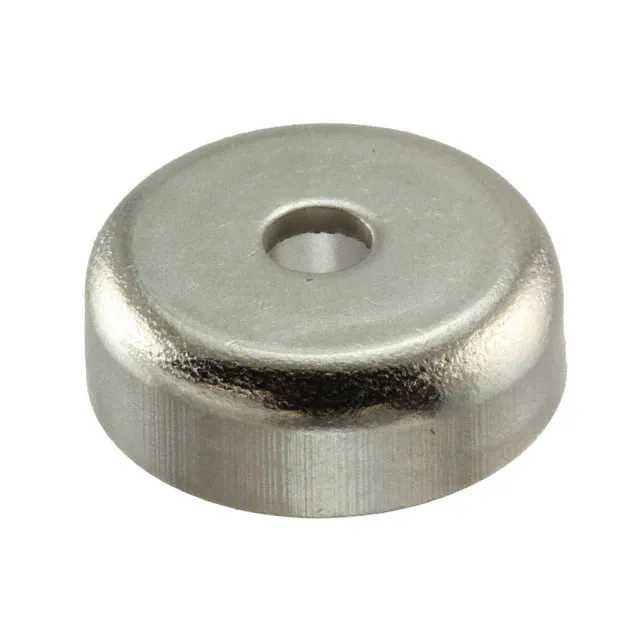

8223MAGNET 0.980"D X 0.310"THICK RND |
215 |
|
Datasheet |
- | Bulk | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.980" Dia x 0.310" H (25.0mm x 8.00mm) | 80°C (TA) |
|
8168MAGNET 1.000"D X 0.375"THICK CYL |
115 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3570G (Surface Gauss) | 1.000" Dia x 0.375" H (25.4mm x 9.53mm) | 80°C (TA) |
|
H-34-MAGNETMAGNET 0.250" SQ X 1.000" H RECT |
299 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | 1300G (Flux Density) | 0.250" Sq x 1.000" H (6.35mm x 25.4mm) | 450°C (TA) |
|
625-MAGNETMAGNET 0.236"D X 0.984"THICK CYL |
180 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 11000G (Flux Density) | 0.236" Dia x 0.984" H (6.00mm x 25.0mm) | - |
|

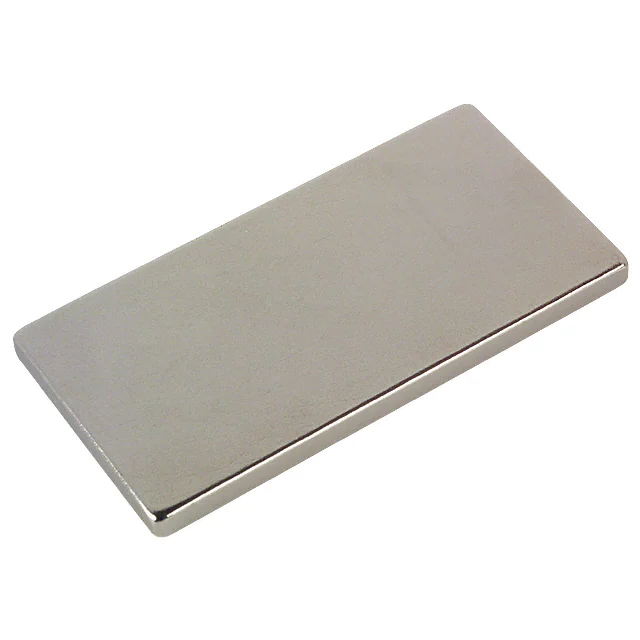

8027MAGNET 2.000"LX1.000"WX0.125"H |
586 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3423G (Surface Gauss) | 2.000" L x 1.000" W x 0.125" H (50.80mm x 25.4mm x 3.18mm) | 80°C (TA) |
|
8340MAGNET 1.650"D X 0.350"THICK RND |
103 |
|
Datasheet |
- | Box | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 1.650" Dia x 0.350" H (42.0mm x 9.00mm) | 80°C (TA) |
|

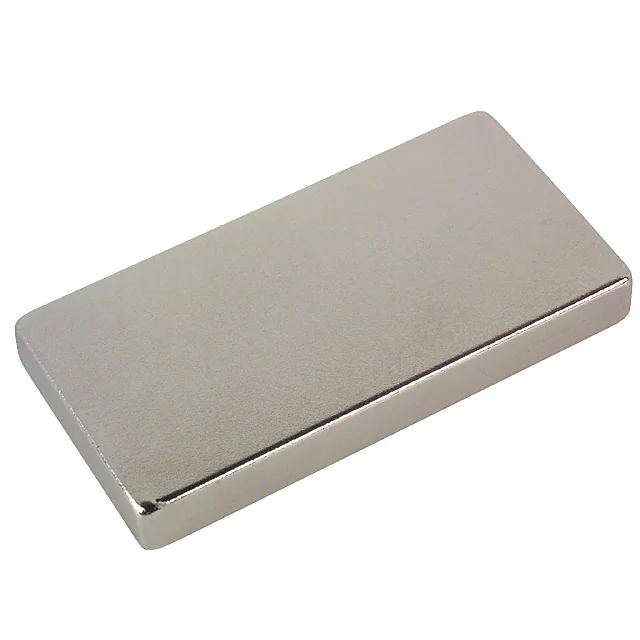

8117MAGNET 2.000"LX1.000"WX0.250"H |
979 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4499G (Surface Gauss) | 2.000" L x 1.000" W x 0.250" H (50.8mm x 25.4mm x 6.35mm) | 80°C (TA) |
|

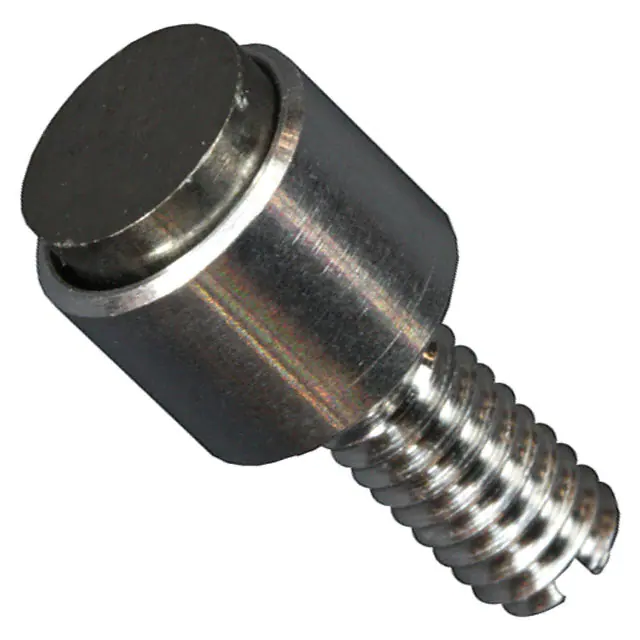

101MG7-BPMAGNET 0.248"D X 0.248"THICK CYL |
3,320 |
|
Datasheet |
MG | Bulk | Active | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.248" Dia x 0.248" H (6.30mm x 6.30mm) | 250°C (TA) |
|
102MG11-BPMAGNET 0.311"D X 0.669"THICK CYL |
119 |
|
Datasheet |
MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|

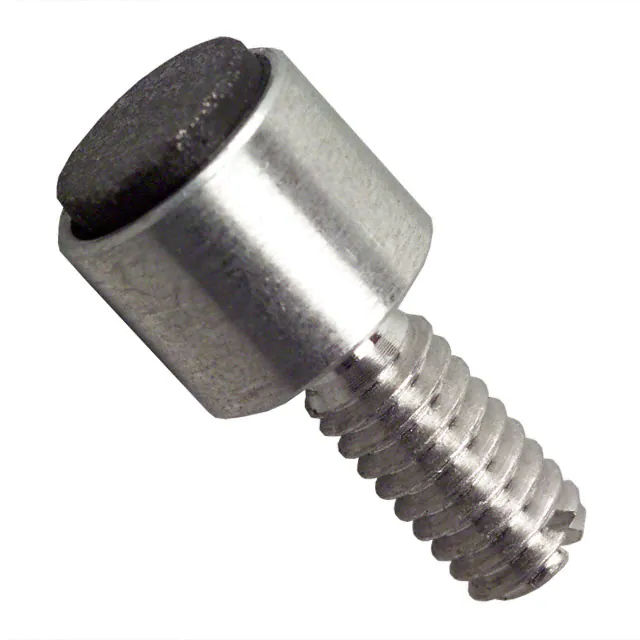

102MG11MAGNET 0.311"D X 0.669"THICK CYL |
1,451 |
|
Datasheet |
MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|
8177MAGNET 0.500"D X 0.200"THICK CYL |
185 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3649G (Surface Gauss) | 0.500" Dia x 0.200" H (12.7mm x 5.08mm) | 80°C (TA) |
|
|
8023MAGNET 0.750"D X 0.187"THICK CYL |
226 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 2663G (Surface Gauss) | 0.750" Dia x 0.187" H (19.0mm x 4.76mm) | 80°C (TA) |
|
MSM-320MAGNET 0.787"LX0.236"WX0.276"H |
288 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Polyamide, Glass Filled (PA-GF) | N35SH | 11900G | 0.787" L x 0.236" W x 0.276" H (20.00mm x 6.00mm x 7.00mm) | 85°C (TA) |
|
MSM-228MAGNET 0.315"D X 1.496"THICK CYL |
116 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Polyamide | N35H | 11900G | 0.315" Dia x 1.496" H (8.00mm x 38.00mm) | 85°C (TA) |
Multi Purpose Magnets Electronic Components
Explore Multi Purpose Magnets electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
