Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8005MAGNET 0.250"D X 0.100"THICK CYL |
5,398 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3514G (Surface Gauss) | 0.250" Dia x 0.100" H (6.35mm x 2.54mm) | 80°C (TA) |
|
8180MAGNET 0.187"D X 0.250"THICK CYL |
3,225 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5049G (Surface Gauss) | 0.187" Dia x 0.250" H (4.76mm x 6.35mm) | 80°C (TA) |
|
8194MAGNET 0.375"D X 0.125"THICK CYL |
1,420 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3212G (Surface Gauss) | 0.375" Dia x 0.125" H (9.53mm x 3.18mm) | 80°C (TA) |
|
8063MAGNET 0.125"D X 0.125"THICK CYL |
1,187 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N40 | 5769G | 0.125" Dia x 0.125" H (3.18mm x 3.18mm) | 80°C (TA) |
|

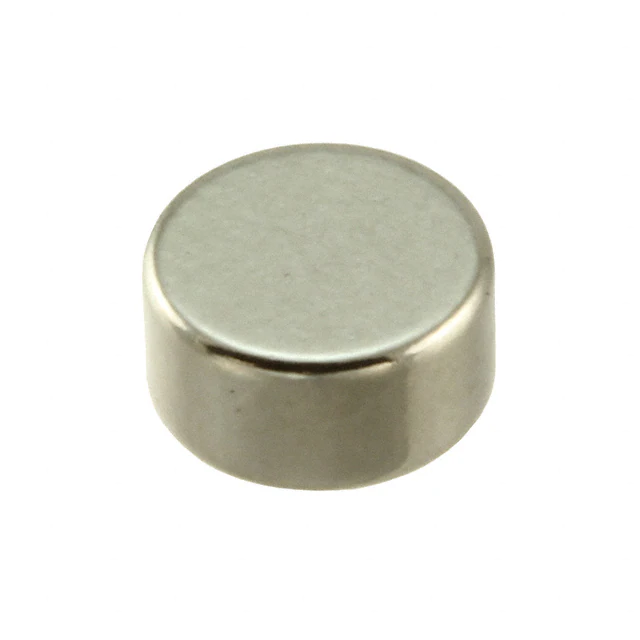

9043MAGNET 0.236"D X 0.118"THICK CYL |
1,071 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.236" Dia x 0.118" H (6.00mm x 3.00mm) | 80°C (TA) |
|
|
8008MAGNET 0.375"D X 0.100"THICK CYL |
1,420 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 2739G (Surface Gauss) | 0.375" Dia x 0.100" H (9.53mm x 2.54mm) | 80°C (TA) |
|
9038MAGNET 0.079"D X 0.315"THICK CYL |
1,707 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | - | 0.079" Dia x 0.315" H (2.00mm x 8.00mm) | 150°C (TA) |
|
8997MAGNET 0.236"D X 0.118"THICK CYL |
3,901 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Samarium Cobalt (SmCo5) | - | - | - | 0.236" Dia x 0.118" H (6.00mm x 3.00mm) | - |
|
8173MAGNET 0.625"D X 0.063"THICK CYL |
2,690 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 1182G (Surface Gauss) | 0.625" Dia x 0.063" H (15.9mm x 1.59mm) | 80°C (TA) |
|
9029MAGNET 0.315"D X 0.098"THICK CYL |
2,519 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | 3498G (Surface Gauss) | 0.315" Dia x 0.098" H (8.00mm x 2.50mm) | 150°C (TA) |
|
8010MAGNET 0.500"D X 0.063"THICK CYL |
1,446 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 1453.98G | 0.500" Dia x 0.063" H (12.70mm x 1.59mm) | 80°C (TA) |
|

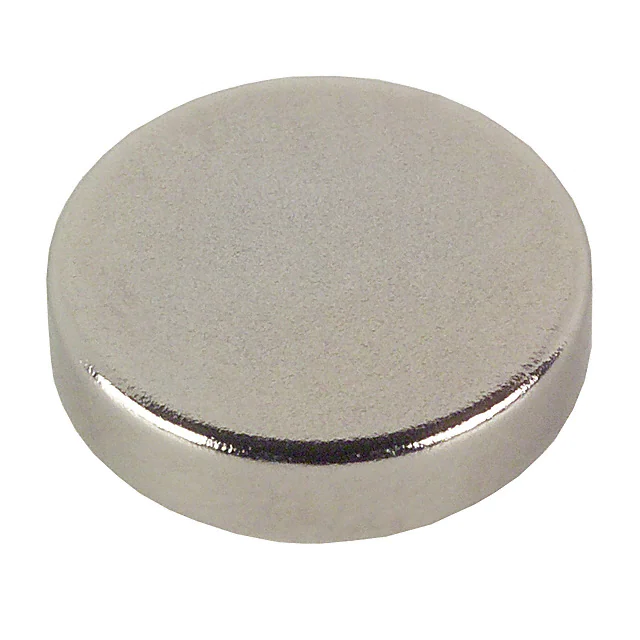

8184MAGNET 0.500"D X 0.100"THICK CYL |
1,193 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 2194G (Surface Gauss) | 0.500" Dia x 0.100" H (12.7mm x 2.54mm) | 80°C (TA) |
|

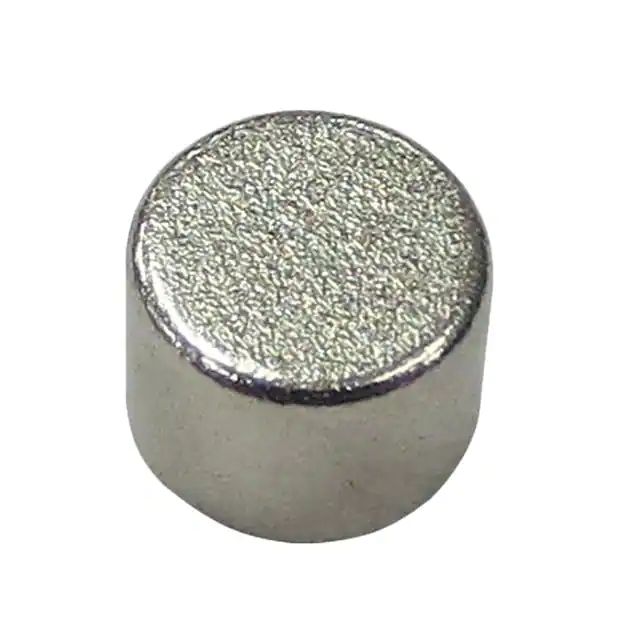

M1219-4MAGNET 0.24"DIA X 0.08"THICK CYL |
1,107 |
|
Datasheet |
- | Bulk | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | N35H | 2500G | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) | 120°C (TA) |
|
|
M1219-3MAGNET 0.16"DIA X 0.12"THICK CYL |
3,953 |
|
Datasheet |
- | Bulk | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | N35H | 3200G | 0.16" Dia x 0.12" H (4.0mm x 3.0mm) | 140°C (TA) |
|
NDFEB 10X5X1.9MMMAGNET 0.394"LX0.2"WX0.070"H |
1,459 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | - | - | - | 0.394" L x 0.200" W x 0.070" H (10.0mm x 5.00mm x 1.90mm) | 160°C (TA) |
|
SMCO5 3X4MMMAGNET 0.118"D X 0.157"THICK CYL |
2,524 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Samarium Cobalt (SmCo5) | - | - | - | 0.118" Dia x 0.157" H (3.00mm x 4.00mm) | 250°C (TA) |
|
RSH01MAGNET 0.500"LX0.125"WX0.063"H |
1,688 |
|
Datasheet |
- | Bulk | Active | Rectangular | - | Alnico 5 (AlNiCo) | - | - | 80G | 0.500" L x 0.125" W x 0.063" H (12.70mm x 3.18mm x 1.59mm) | 500°C (TA) |
|
SMCO5 1.9X3MMMAGNET 0.074"D X 0.118"THICK CYL |
203 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Samarium Cobalt (SmCo5) | - | - | - | 0.074" Dia x 0.118" H (1.88mm x 3.00mm) | 250°C (TA) |
|

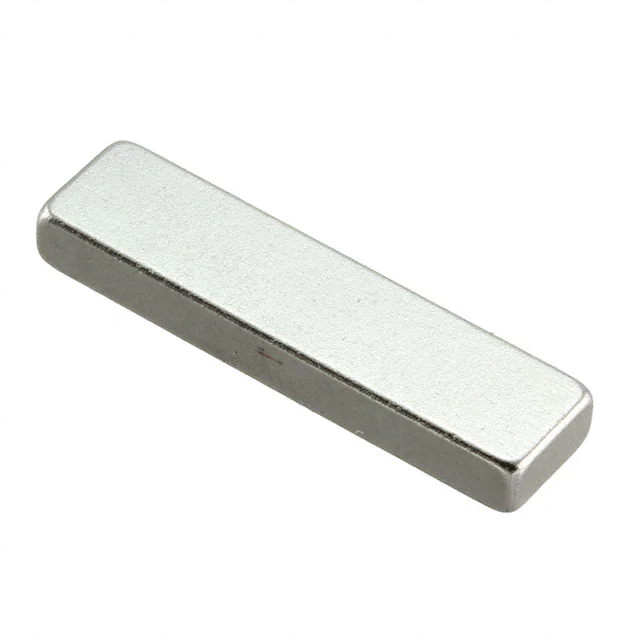

8110MAGNET 1.000"LX0.250"WX0.125"H |
765 |
|
Datasheet |
- | Bulk | Active | Rectangular | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 2772G (Surface Gauss) | 1.000" L x 0.250" W x 0.125" H (25.4mm x 6.35mm x 3.175mm) | 80°C (TA) |
|
8181MAGNET 0.500"D X 0.375"THICK CYL |
138 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4832G (Surface Gauss) | 0.500" Dia x 0.375" H (12.7mm x 9.53mm) | 80°C (TA) |
