Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALNICO500 19X3.2X3.2MMMAGNET 0.126" SQ X 0.748" H RECT |
277 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | - | 0.126" Sq x 0.748" H (3.20mm x 19.0mm) | 450°C (TA) |
|

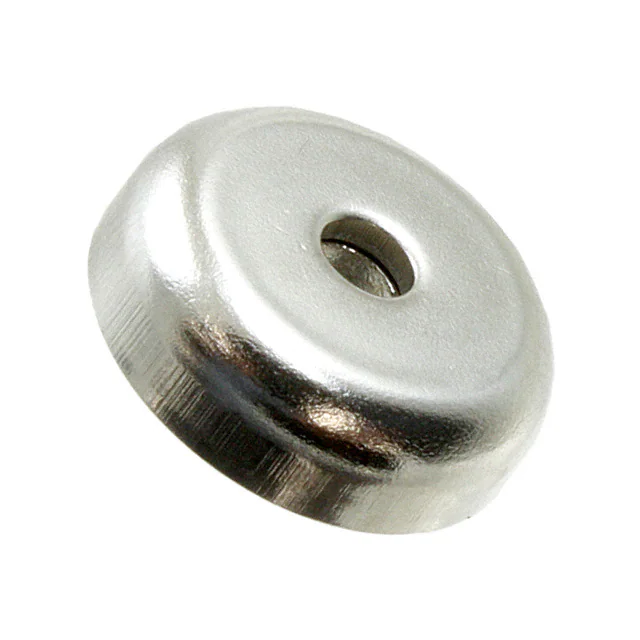

8217MAGNET 0.630"D X 0.200"THICK RND |
1,358 |
|
Datasheet |
- | Box | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.630" Dia x 0.200" H (16.0mm x 5.00mm) | 80°C (TA) |
|

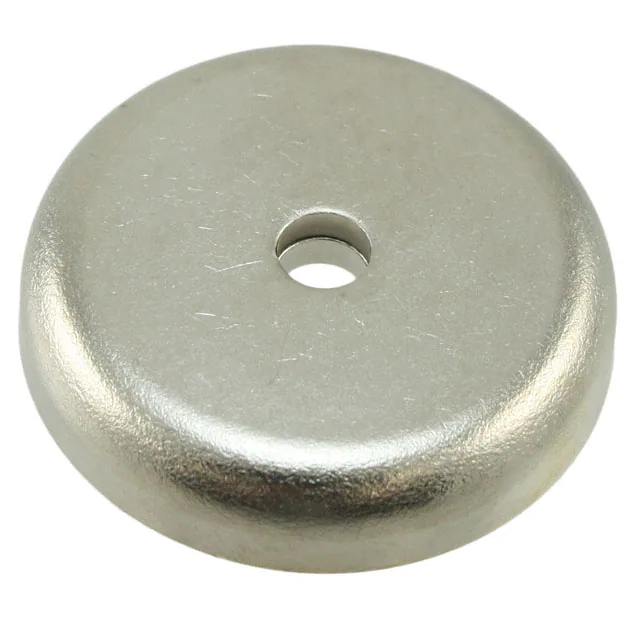

8221MAGNET 0.630"D X 0.200"THICK RND |
200 |
|
Datasheet |
- | Bulk | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.630" Dia x 0.200" H (16.0mm x 5.00mm) | 80°C (TA) |
|
8118MAGNET 0.250" SQ X 0.750" H RECT |
140 |
|
- |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3341G (Surface Gauss) | 0.250" Sq x 0.750" H (6.35mm x 19.0mm) | 80°C (TA) |
|

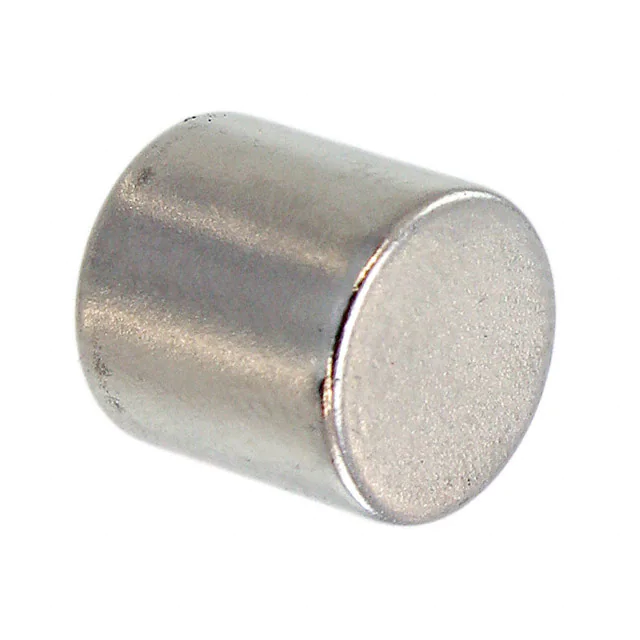

8009MAGNET 0.375"D X 0.375"THICK CYL |
634 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5117G (Surface Gauss) | 0.375" Dia x 0.375" H (9.53mm x 9.53mm) | 80°C (TA) |
|
8190MAGNET 0.500"D X 0.500"THICK CYL |
346 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5411G (Surface Gauss) | 0.500" Dia x 0.500" H (12.7mm x 12.7mm) | 80°C (TA) |
|
9160MAGNET 0.625"D X 0.125"THICK CYL |
134 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 2748G | 0.625" Dia x 0.125" H (15.88mm x 3.18mm) | 80°C (TA) |
|

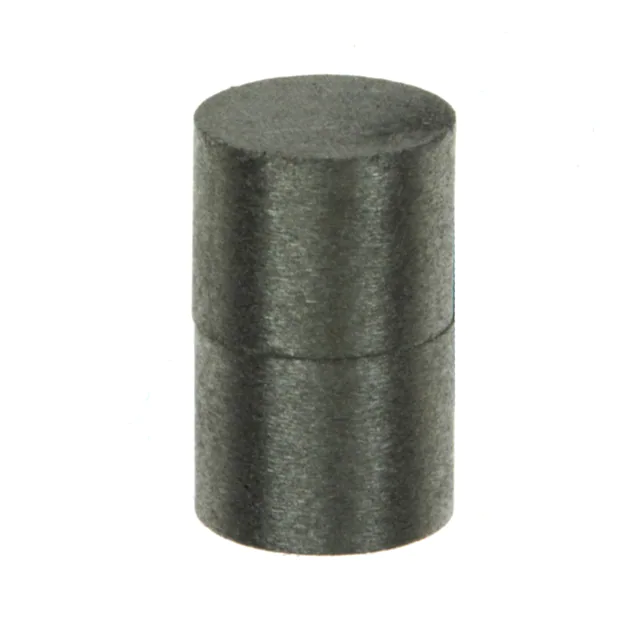

SMCO5 5X4MMMAGNET 0.197"D X 0.157"THICK CYL |
119 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Samarium Cobalt (SmCo5) | - | - | - | 0.197" Dia x 0.157" H (5.00mm x 4.00mm) | 250°C (TA) |
|
9159MAGNET 0.375"D X 0.250"THICK CYL |
455 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 5920G | 0.375" Dia x 0.250" H (9.53mm x 6.35mm) | 80°C (TA) |
|

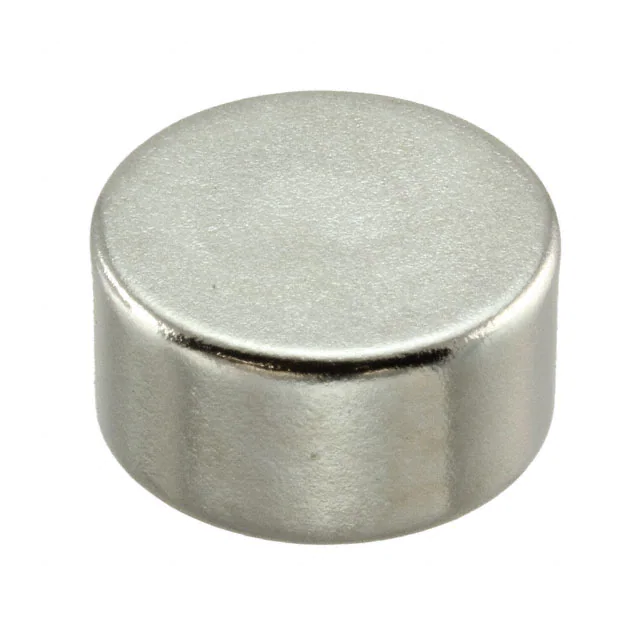

8176MAGNET 0.500"D X 0.250"THICK CYL |
7,341 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4119G (Surface Gauss) | 0.500" Dia x 0.250" H (12.7mm x 6.35mm) | 80°C (TA) |
|
H-31-MAGNETMAGNET 0.063" SQ X 0.500" H RECT |
4,923 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | 10900G (Flux Density) | 0.063" Sq x 0.500" H (1.60mm x 12.7mm) | 450°C (TA) |
|

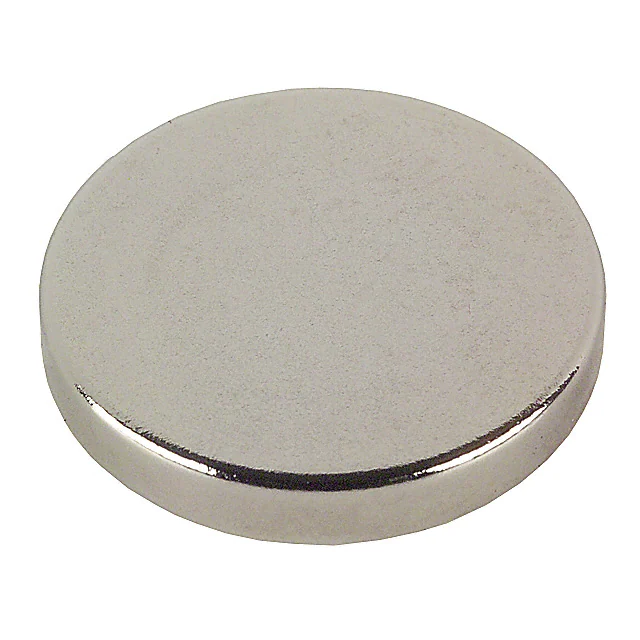

8013MAGNET 0.750"D X 0.125"THICK CYL |
1,032 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 1887G (Surface Gauss) | 0.750" Dia x 0.125" H (19.0mm x 3.18mm) | 80°C (TA) |
|
H-33-MAGNETMAGNET 0.125" SQ X 0.750" H RECT |
4,200 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | 10900G (Flux Density) | 0.125" Sq x 0.750" H (3.20mm x 19.0mm) | 450°C (TA) |
|
RSH33MAGNET 0.750"LX0.125"WX0.125"H |
1,214 |
|
Datasheet |
- | Bulk | Active | Rectangular | - | Alnico, Alcomax | - | - | 200G, 250G | 0.750" L x 0.125" W x 0.125" H (19.05mm x 3.18mm x 3.18mm) | 550°C (TA) |
|
|
8012MAGNET 1.000"D X 0.063"THICK CYL |
242 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 753G (Surface Gauss) | 1.000" Dia x 0.063" H (25.4mm x 1.59mm) | 80°C (TA) |
|
MSM-324MAGNET 0.906"LX0.232"WX0.547"H |
430 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Acrylonitrile Butadiene Styrene (ABS) | N30H | 11050G | 0.906" L x 0.232" W x 0.547" H (23.00mm x 5.90mm x 13.90mm) | 85°C (TA) |
|

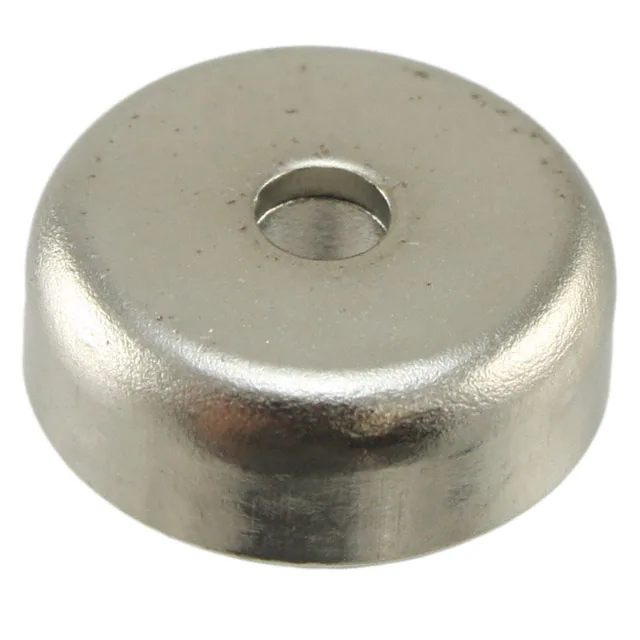

8218MAGNET 0.790"D X 0.280"THICK RND |
316 |
|
Datasheet |
- | Box | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5358G (Surface Gauss) | 0.790" Dia x 0.280" H (20.0mm x 7.00mm) | 80°C (TA) |
|
420-MAGNETMAGNET 0.157"D X 0.787"THICK CYL |
1,202 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 130G (Flux Density) | 0.157" Dia x 0.787" H (4.00mm x 20.0mm) | - |
|

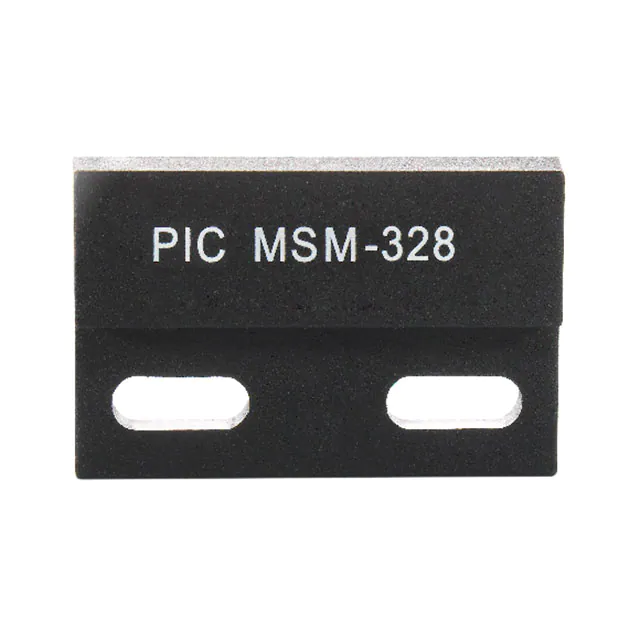

MSM-328MAGNET 1.122"LX0.248"WX0.748"H |
555 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Polyamide, Glass Filled (PA-GF) | N30H | 11050G | 1.122" L x 0.248" W x 0.748" H (28.50mm x 6.30mm x 19.00mm) | 85°C (TA) |
|
315-MAGNETMAGNET 0.118"D X 0.590"THICK CYL |
130 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 11000G (Flux Density) | 0.118" Dia x 0.590" H (3.00mm x 15.0mm) | - |
