Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
52.2-ND-20MAGNET 0.787"D X 0.984"THICK CYL |
78 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.984" H (20.00mm x 25.00mm) | 80°C (TA) |
|
52.1-ND-20-1MAGNET 0.787"D X 0.984"THICK CYL |
67 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.984" H (20.00mm x 25.00mm) | 80°C (TA) |
|
51.3-ND-22-M4-SWMAGNET 0.866"D X 0.236"THICK CYL |
64 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.866" Dia x 0.236" H (22.00mm x 6.00mm) | 60°C (TA) |
|
E869MAGNET 1.969"D X 0.394"THICK CYL |
46 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 1.969" Dia x 0.394" H (50.00mm x 10.00mm) | 120°C |
|
55.1-ND-32-10.5-2MAGNET 1.260"D X 0.079"THICK RND |
30 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel | - | - | 1.260" Dia x 0.079" H (32.00mm x 2.00mm) | 80°C (TA) |
|

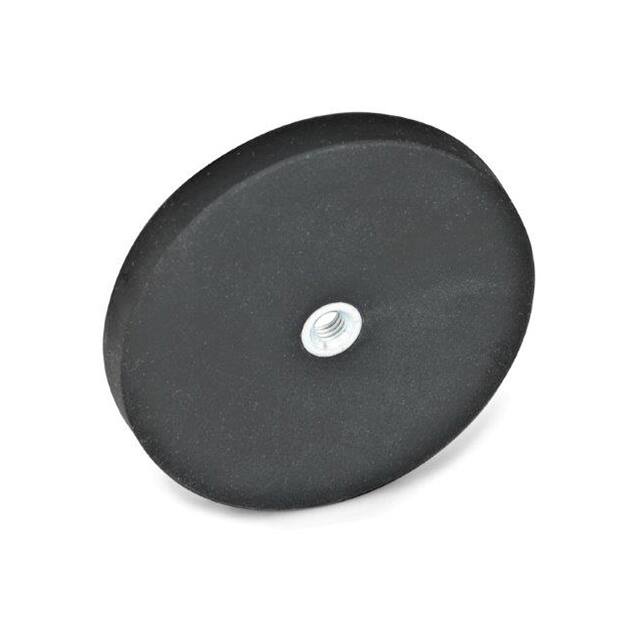

51.5-ND-22-SWMAGNET 0.866"D X 0.236"THICK RND |
19 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.866" Dia x 0.236" H (22.00mm x 6.00mm) | 80°C (TA) |
|
N801MAGNET 0.16"DIAX0.08"H CYL PK10 |
16 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.16" Dia x 0.08" H (4.0mm x 2.0mm) | - |
|
52.3-AN-21-RTMAGNET 0.827"D X 0.748"THICK CYL |
26 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Stainless Steel | - | - | 0.827" Dia x 0.748" H (21.00mm x 19.00mm) | 350°C (TA) |
|
E1014/NEOMAGNET 1.654"D X 0.354"THICK CYL |
9 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.654" Dia x 0.354" H (42.00mm x 9.00mm) | 80°C |
|
251.6-M10-50-NDMAGNET 0.669"D X 0.252"THICK CYL |
72 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.669" Dia x 0.252" H (17.00mm x 6.40mm) | 80°C (TA) |
|
54.1-ND-16MAGNET 0.630"D X 0.787"THICK CYL |
16 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Brass | - | - | 0.630" Dia x 0.787" H (16.00mm x 20.00mm) | 80°C (TA) |
|
55.2-SC-18-3MAGNET 0.709"D X 0.118"THICK RND |
20 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | - | - | - | 0.709" Dia x 0.118" H (18.00mm x 3.00mm) | 200°C (TA) |
|
|
N838MAGNET 0.236"DX0.039"H CYL PK50 |
16 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.236" Dia x 0.039" H (6.00mm x 1.00mm) | - |
|
55.3-AN-12-40MAGNET 0.472"D X 1.575"THICK CYL |
11 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.472" Dia x 1.575" H (12.00mm x 40.00mm) | - |
|
M52171/30ARMMAGNET 1.181"D X 0.157"THICK CYL |
6 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 1.181" Dia x 0.157" H (30.00mm x 4.00mm) | - |
|
55.1-SC-18-8-4MAGNET 0.709"D X 0.157"THICK RND |
13 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel | - | - | 0.709" Dia x 0.157" H (18.00mm x 4.00mm) | 200°C (TA) |
|

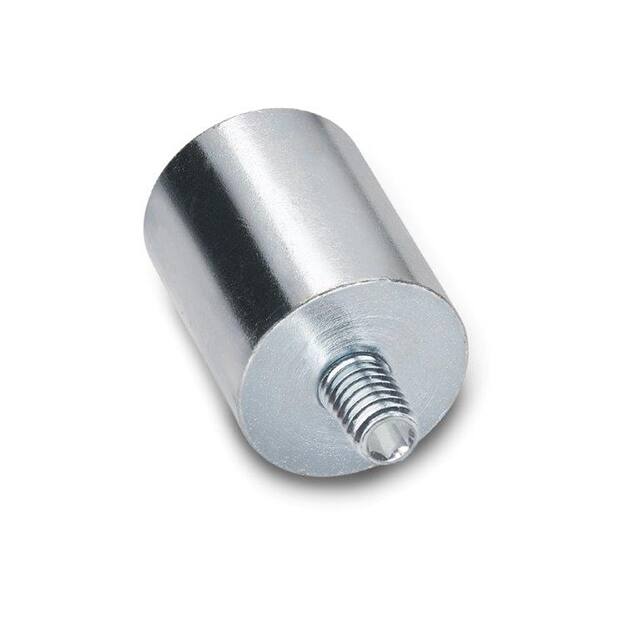

52.4-AN-13-M4-EMAGNET 0.512"D X 0.787"THICK CYL |
15 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 450°C (TA) |
|
52.4-ND-20-M6-EMAGNET 0.787"D X 0.984"THICK CYL |
53 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.984" H (20.00mm x 25.00mm) | 80°C (TA) |
|
|
N804MAGNET 0.197"DX0.079"H CYL PK10 |
8 |
|
Datasheet |
- | Tube | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.197" Dia x 0.079" H (5.00mm x 2.00mm) | - |
|
251.6-M12-30-NDMAGNET 0.748"D X 0.295"THICK CYL |
65 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.748" Dia x 0.295" H (19.00mm x 7.50mm) | 80°C (TA) |
Multi Purpose Magnets Electronic Components
Frequently Asked Questions
Q1: What products are included in Multi Purpose Magnets?
This category includes related Multi Purpose Magnets subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Multi Purpose Magnets components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Multi Purpose Magnets and other electronic components.
