Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

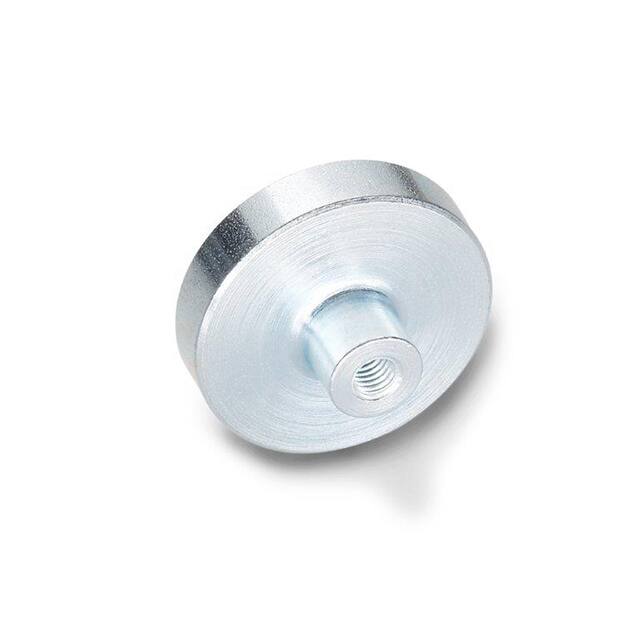

50.2-ND-20-6-M4MAGNET 0.787"D X 0.236"THICK RND |
57 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | 80°C (TA) |
|
251.6-M6-20-NDMAGNET 0.394"D X 0.157"THICK CYL |
75 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.394" Dia x 0.157" H (10.00mm x 4.00mm) | 80°C (TA) |
|
251.6-M6-25-NDMAGNET 0.394"D X 0.157"THICK CYL |
87 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.394" Dia x 0.157" H (10.00mm x 4.00mm) | 80°C (TA) |
|
50.3-HF-47-M6MAGNET 1.850"D X 0.276"THICK RND |
60 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 1.850" Dia x 0.276" H (47.00mm x 7.00mm) | 200°C (TA) |
|
251.6-M6-30-NDMAGNET 0.394"D X 0.157"THICK CYL |
99 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.394" Dia x 0.157" H (10.00mm x 4.00mm) | 80°C (TA) |
|
50.1-SC-16-4.5MAGNET 0.630"D X 0.177"THICK RND |
31 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.630" Dia x 0.177" H (16.00mm x 4.50mm) | 200°C (TA) |
|
52.1-ND-16-1MAGNET 0.630"D X 0.787"THICK CYL |
75 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.630" Dia x 0.787" H (16.00mm x 20.00mm) | 80°C (TA) |
|
50.25-HF-32-7-M5MAGNET 1.260"D X 0.276"THICK RND |
33 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Stainless Steel | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | 220°C (TA) |
|
52.1-AN-13-1MAGNET 0.512"D X 0.787"THICK CYL |
31 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 450°C (TA) |
|
50.2-HF-50-10-M6MAGNET 1.969"D X 0.394"THICK RND |
57 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 1.969" Dia x 0.394" H (50.00mm x 10.00mm) | 200°C (TA) |
|

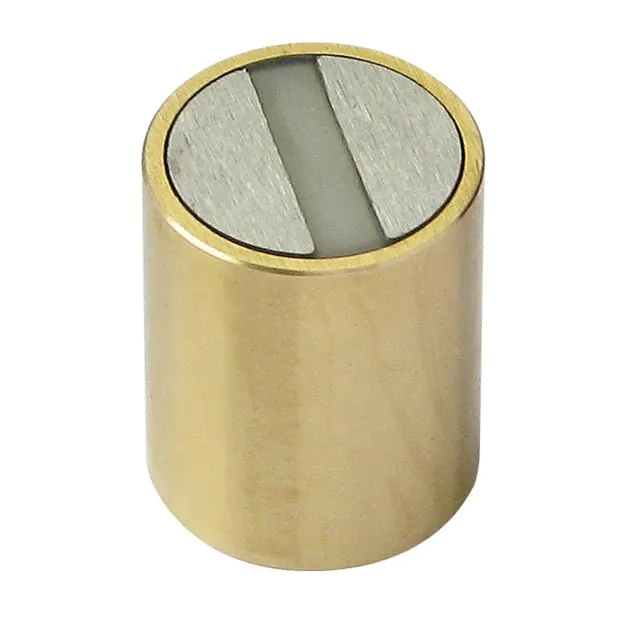

E750MAGNET 0.236"D X 0.787"THICK CYL |
38 |
|
- |
- | Box | Active | Cylindrical | Axial, Pot | Samarium Cobalt (SmCo5) | Brass | - | - | 0.236" Dia x 0.787" H (6.00mm x 20.00mm) | 200°C |
|
CMP011010P1N42MAGNET 1.000"LX1.000"WX0.125"H |
50 |
|
Datasheet |
Max-Attach® | Bag | Active | Rectangular | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" L x 1.000" W x 0.125" H (25.40mm x 25.40mm x 3.18mm) | 82.2°C |
|
52.2-AN-10MAGNET 0.394"D X 0.787"THICK CYL |
47 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.394" Dia x 0.787" H (10.00mm x 20.00mm) | 450°C (TA) |
|
G32-A-0625-75-080MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0985-85-120MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0985-75-080MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0985-85-100MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0875-75-080MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-1500-75-064MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-1375-75-064MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
