Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G32-A-1181-75-080MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-1181-75-064MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0945-85-100MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0625-85-120MAGNET 2.005"D X 0.250"THICK CYL |
50 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-0625-85-100MAGNET 2.005"D X 0.250"THICK CYL |
49 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-1125-85-100MAGNET 2.005"D X 0.250"THICK CYL |
48 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
|
G32-A-1102-85-120MAGNET 2.005"D X 0.250"THICK CYL |
40 |
|
Datasheet |
G32 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 2.005" Dia x 0.250" H (50.93mm x 6.35mm) | 125°C (TA) |
|
ALC10060MAGNET 0.394"D X 0.236"THICK CYL |
80 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Samarium Cobalt (SmCo5) | - | S22 | 9500G, 10000G | 0.394" Dia x 0.236" H (10.00mm x 6.00mm) | 250°C (TA) |
|

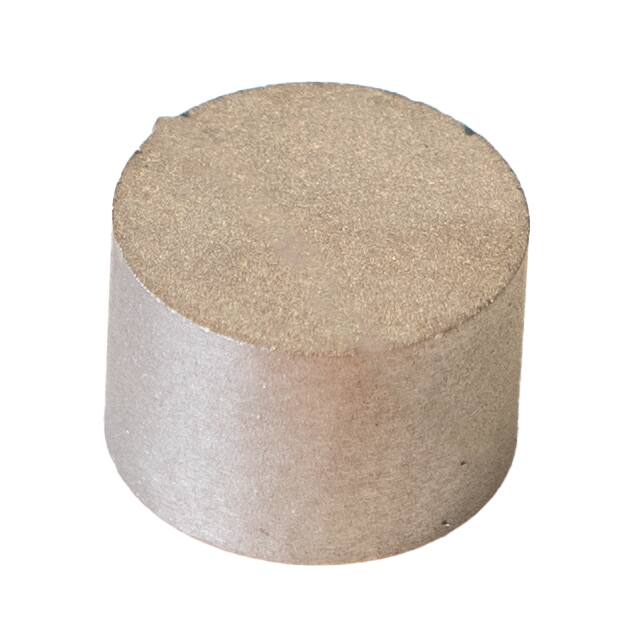

ALC15010MAGNET 0.591"D X 0.394"THICK CYL |
65 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Samarium Cobalt (SmCo5) | - | S22 | 9500G, 10000G | 0.591" Dia x 0.394" H (15.00mm x 10.00mm) | 250°C (TA) |
|
50.25-HF-40-8-M5MAGNET 1.575"D X 0.315"THICK RND |
11 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Stainless Steel | - | - | 1.575" Dia x 0.315" H (40.00mm x 8.00mm) | 220°C (TA) |
|
E1033/NEOMAGNET 0.787"D X 0.236"THICK CYL |
35 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | 80°C |
|
52.1-AN-16-1MAGNET 0.630"D X 0.787"THICK CYL |
41 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.630" Dia x 0.787" H (16.00mm x 20.00mm) | 450°C (TA) |
|
MX1500RRAREEARTH CUP MAGNET 1.41"DIA 42 |
70 |
|
Datasheet |
- | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | - | 82°C (180°F) |
|
251.6-M10-20-NDMAGNET 0.669"D X 0.252"THICK CYL |
98 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.669" Dia x 0.252" H (17.00mm x 6.40mm) | 80°C (TA) |
|
251.6-M10-25-NDMAGNET 0.669"D X 0.252"THICK CYL |
85 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.669" Dia x 0.252" H (17.00mm x 6.40mm) | 80°C (TA) |
|
52.2-AN-13MAGNET 0.512"D X 0.787"THICK CYL |
19 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 450°C (TA) |
|
58-AN-29-RTMAGNET 1.142"D X 0.335"THICK RND |
14 |
|
Datasheet |
- | Box | Active | Round | - | Alnico (AlNiCo) | Stainless Steel | - | - | 1.142" Dia x 0.335" H (29.00mm x 8.50mm) | 280°C (TA) |
|
251.6-M10-30-NDMAGNET 0.669"D X 0.252"THICK CYL |
35 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.669" Dia x 0.252" H (17.00mm x 6.40mm) | 80°C (TA) |
|
CMP10012CSP2N42MAGNET 1.000"D X 0.125"THICK RND |
21 |
|
Datasheet |
Max-Attach® | Bag | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" Dia x 0.125" H (25.40mm x 3.18mm) | 82.2°C |
|
E775NEOMAGNET 0.787"D X 0.236"THICK CYL |
18 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | - |
