Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E877MAGNET 1.260"D X 0.276"THICK CYL |
30 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | - |
|
E867MAGNET 1.575"D X 0.315"THICK CYL |
70 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 1.575" Dia x 0.315" H (40.00mm x 8.00mm) | 120°C |
|
55.1-ND-18-4.5-4MAGNET 0.709"D X 0.157"THICK RND |
34 |
|
Datasheet |
GN 55.1 | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel | - | - | 0.709" Dia x 0.157" H (18.00mm x 4.00mm) | 80°C (TA) |
|
ALC1040EMAGNET 0.394"D X 0.157"THICK CYL |
40 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Epoxy | N35SH | 11700G, 12200G | 0.394" Dia x 0.157" H (10.00mm x 4.00mm) | 150°C (TA) |
|
UR801000MAGNET 0.315"D X 0.394"THICK CYL |
50 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel, Zinc | N35 | 11700G, 12100G | 0.315" Dia x 0.394" H (8.00mm x 10.00mm) | 80°C |
|
G22-A-0875-75-064MAGNET 1.375"D X 0.250"THICK CYL |
85 |
|
Datasheet |
G22 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.375" Dia x 0.250" H (34.93mm x 6.35mm) | 125°C (TA) |
|
|
G22-A-0985-75-064MAGNET 1.375"D X 0.250"THICK CYL |
85 |
|
Datasheet |
G22 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.375" Dia x 0.250" H (34.93mm x 6.35mm) | 125°C (TA) |
|
|
G22-A-0750-75-064MAGNET 1.375"D X 0.250"THICK CYL |
83 |
|
Datasheet |
G22 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.375" Dia x 0.250" H (34.93mm x 6.35mm) | 125°C (TA) |
|
|
E864MAGNET 0.984"D X 0.276"THICK CYL |
69 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 120°C |
|
E774NEOMAGNET 0.630"D X 0.177"THICK CYL |
31 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.630" Dia x 0.177" H (16.00mm x 4.50mm) | - |
|

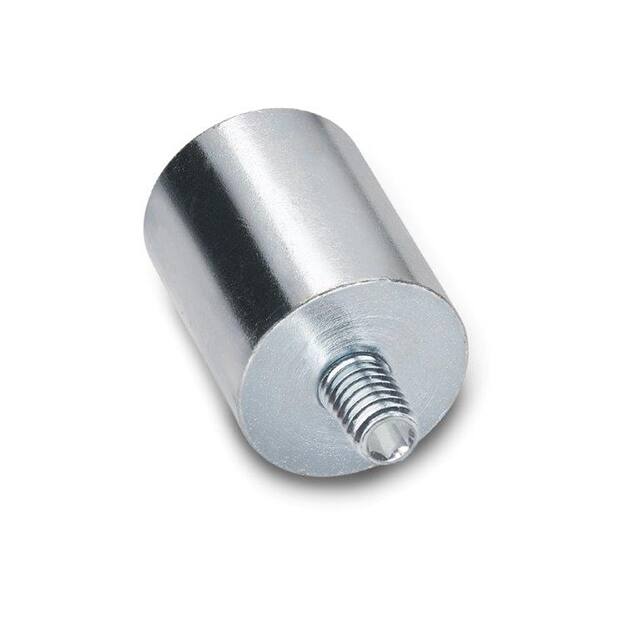

52.4-ND-8-M3-EMAGNET 0.315"D X 0.787"THICK CYL |
97 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.315" Dia x 0.787" H (8.00mm x 20.00mm) | 80°C (TA) |
|
50.1-SC-13-4.5MAGNET 0.512"D X 0.177"THICK RND |
47 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 200°C (TA) |
|
52.1-ND-10-1MAGNET 0.394"D X 0.787"THICK CYL |
43 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.394" Dia x 0.787" H (10.00mm x 20.00mm) | 80°C (TA) |
|

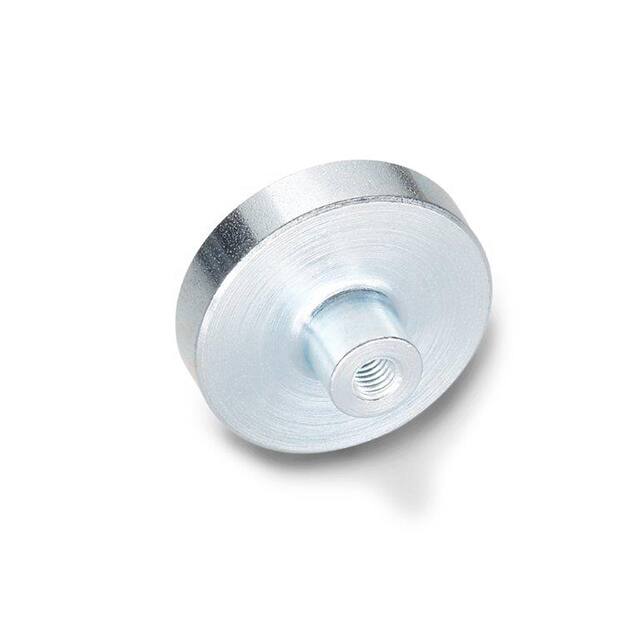

50.2-HF-40-8-M5MAGNET 1.575"D X 0.315"THICK RND |
86 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 1.575" Dia x 0.315" H (40.00mm x 8.00mm) | 200°C (TA) |
|
|
E865MAGNET 1.260"D X 0.276"THICK CYL |
29 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | - | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | 120°C |
|
E753NEOMAGNET 0.512"D X 0.787"THICK CYL |
80 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Brass, Steel | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 80°C |
|
52.1-ND-13-1MAGNET 0.512"D X 0.787"THICK CYL |
97 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 80°C (TA) |
|
50.25-HF-25-7-M5MAGNET 0.984"D X 0.276"THICK RND |
28 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Stainless Steel | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 220°C (TA) |
|
|
CMP010510P1ADHMAGNET 1.000"LX0.500"WX0.125"H |
60 |
|
Datasheet |
Max-Attach® | Bag | Active | Rectangular | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" L x 0.500" W x 0.125" H (25.40mm x 12.70mm x 3.18mm) | 82.2°C |
|
|
CMP10006P1ADHMAGNET 1.000"D X 0.062"THICK RND |
30 |
|
Datasheet |
SmartMag®Max-Attach® | Bag | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" Dia x 0.062" H (25.40mm x 1.57mm) | 82.2°C |
