Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LS27PCIC GATE NOR 3CH 3-INP 14DIP |
0 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Bulk | Active | NOR Gate | 3 | 3 | - | 4.75V ~ 5.25V | 6.8 mA | - | - | - | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|

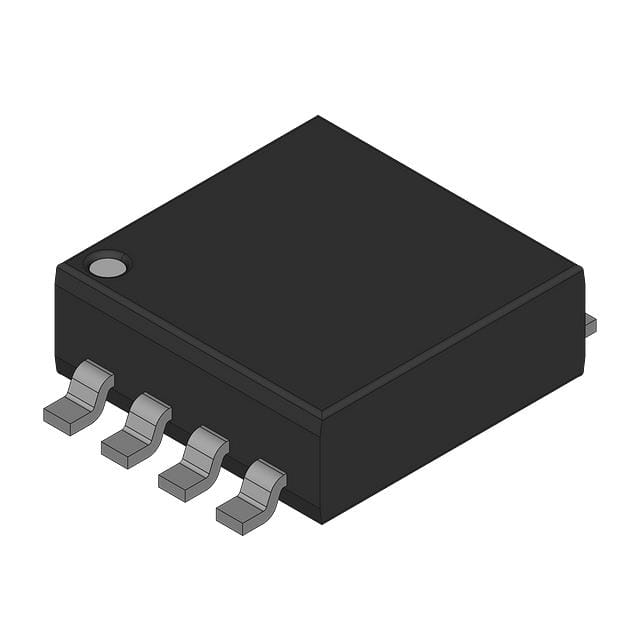

74AHC3G04DP/C125IC INVERTER |
0 |
|
Datasheet |
74AHC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Inverter | 3 | 3 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
MC74HC86ADTIC GATE XOR 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
NC7ST08P5X-F40IC INVERTER 2-INP |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN7486NIC GATE XOR 4CH 2-INP 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 4.75V ~ 5.25V | 50 mA | 800µA, 16mA | 0.8V | 2V | 30ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
54ALS00AE/883IC GATE NAND |
0 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLVVHC1GT86DFT2GIC GATE XOR 1CH 2-INP SC88A |
0 |
|
- |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NC7SZ14P5X-F40IC INVERTER |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC86AFL1IC GATE XOR 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NC7SZ32M5IC GATE OR 1CH 2-INP SOT23-5 |
0 |
|
Datasheet |
7SZ | SC-74A, SOT-753 | Bulk | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
9015FMIC GATE NOR 4CH 10-INP 16CFP |
0 |
|
Datasheet |
- | 16-CFlatpack | Bulk | Active | NOR Gate | 4 | 10 | - | 4.5V ~ 5.5V | 8.14 mA | 1.32mA, 17.6mA | 0.9V | 1.7V | 12ns @ 5V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 16-CFP |
|
|
74H40DCIC GATE NAND 2CH 4-INP 14CDIP |
0 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 2 | 4 | - | 4.75V ~ 5.25V | 40 mA | - | - | - | 12ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-CDIP |
|
|
JM38510/65101BCAIC GATE NOR 4CH 2-INP 14CDIP |
0 |
|
Datasheet |
SN54HC02 | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NOR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
MC74HC4049DIC BUFFER INVERT 6V |
0 |
|
Datasheet |
74HC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HEF4001BT-Q100/AUJIC GATE NOR 4CH 2-INP 14SO |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 40ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HC32BQ-Q100,115IC GATE OR 4CH 2-INP 14DHVQFN |
0 |
|
Datasheet |
74HC | 14-VFQFN Exposed Pad | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-DHVQFN (2.5x3) |
|
MM74HCT08MTCXIC GATE AND 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4.8mA, 4.8mA | 0.8V | 2V | 18ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74AUP1G04GN,132IC INVERTER 1CH 1-INP 6XSON |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
SNJ54HC132JIC NAND QUAD |
0 |
|
Datasheet |
54HC | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
NC7SZ11L6XIC GATE AND 1CH 3-INP 6MICROPAK |
0 |
|
Datasheet |
7SZ | 6-UFDFN | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
