Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV74HCT04ADGIC INVERTER 6CH 1-INP 14SOIC |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 15ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
NLV74HCT14ADGIC INVERT SCHMITT 6CH 1IN 14SOIC |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
SN74LVC1G14DRY2IC INVERT SCHMITT 1CH 1-INP 6SON |
0 |
|
Datasheet |
74LVC | 6-UFDFN | Bulk | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 6.5ns @ 2.5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SN74LVC1G14DSF2IC INVERT SCHMITT 1CH 1-INP 6SON |
0 |
|
Datasheet |
74LVC | 6-XFDFN | Bulk | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 6.5ns @ 2.5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-SON (1x1) |
|
74AXP1G11GMHIC GATE AND 1CH 3-INP 6XSON |
0 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.2ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AXP1G11GSHIC GATE AND 1CH 3-INP 6XSON |
0 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.2ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AXP1G86GMHIC GATE XOR 1CH 2-INP 6XSON |
0 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.8ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
MCW100E101IC GATE OR/NOR QUAD |
0 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT00DIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 17ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74HCT02DIC GATE NOR 4CH 2-INP 14SOIC |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 16ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74HCT08DIC GATE AND 4CH 2-INP 14SOIC |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
NC7S32M5X_F080IC GATE OR 1CH 2-INP SOT23-5 |
0 |
|
- |
7S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

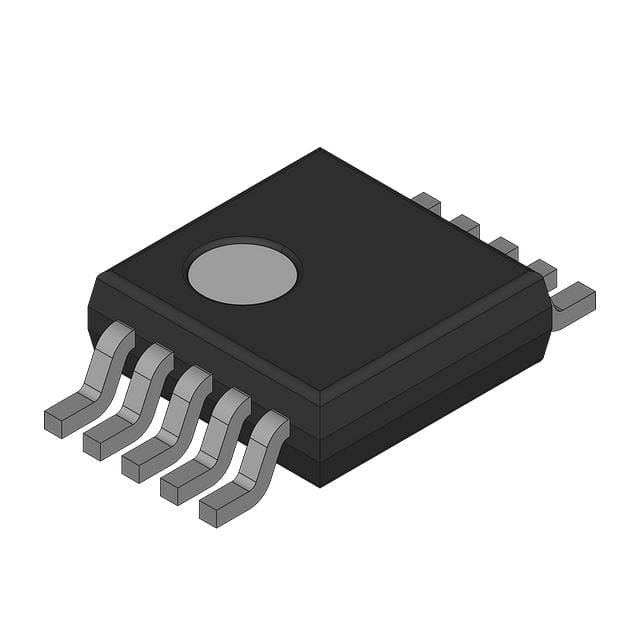

74AXP2T08DPJIC GATE AND 2CH 2-INP 10TSSOP |
0 |
|
Datasheet |
74AXP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | Schmitt Trigger | 0.7V ~ 2.75V | 500 nA | 12mA, 12mA | 0.35V ~ 0.8V | 1.05V ~ 3.7V | 6.5ns @ 5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 10-TSSOP |
|
|
NC7S08M5X_F40IC GATE AND 1CH 2-INP |
0 |
|
- |
7S | - | Bulk | Obsolete | AND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | - | - |
|
|
NC7SZ04M5X_F40IC INVERTER 1CH 1-INP SOT23-5 |
0 |
|
- |
7SZ | SC-74A, SOT-753 | Bulk | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NC7SZ32M5X_F40IC GATE OR 1CH 2-INP SC74A |
0 |
|
- |
7SZ | SC-74A, SOT-753 | Bulk | Obsolete | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-74A |
|
|
CC01366AC2TR/NOPBIC GATE MTL CMOS 44-PLCC |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CC01366AC2TRIC GATE MTL CMOS 44-PLCC |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2170345IC MCU NOR 48FBGA |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AC14CWIC INVERT SCHMITT 6CH 6IN DIE |
0 |
|
- |
74AC | Die | Tube | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | Die |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
