Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74ACT04CWIC INVERTER 6CH 1IN DIE |
0 |
|
- |
74ACT | Die | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | Die |
|
|
MC74VHC1G86MU1TCGIC GATE XOR 1CH 2-INP 6UDFN |
0 |
|
Datasheet |
74HC | 6-UFDFN | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL17SZ11MU1TCGIC GATE AND 1CH 3-INP 6UDFN |
0 |
|
Datasheet |
17SZ | 6-UFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL17SZ32MU1TCGIC GATE OR 1CH 2-INP 6UDFN |
0 |
|
Datasheet |
17SZ | 6-UFDFN | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NLX2G32DMUTCGIC GATE OR 2CH 2-INP 8UDFN |
0 |
|
Datasheet |
- | 8-UFDFN | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-UDFN (1.95x1) |
|
|
SC14011BDR2GIC PLL CLOCK DRIVER |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD74HC4075E-NGIC GATE OR 3CH 3-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Active | OR Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74HC00EIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74HC14EIC INVERT SCHMITT 6CH 1INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|

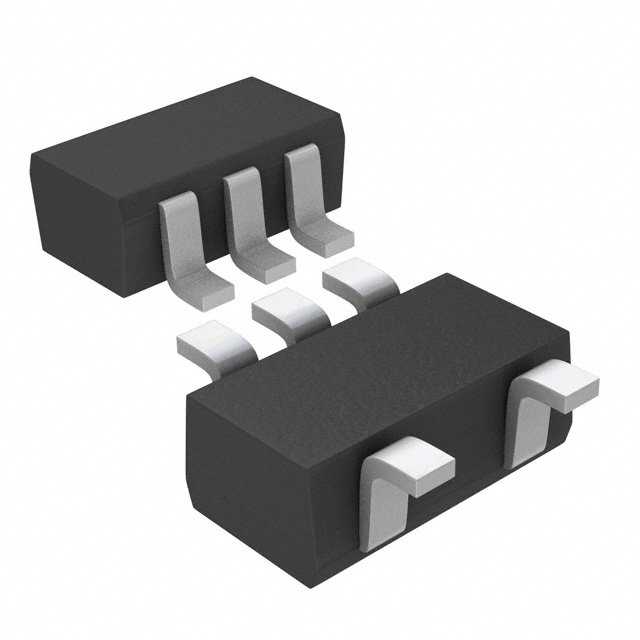

BU4S71-TRIC GATE OR 1CH 2-INP SMP5 |
0 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4SU69-TRIC INVERTER 1CH 1-INP SMP5 |
0 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1V ~ 3V | 4V ~ 12V | 25ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S584-TRIC INVERT SCHMITT 1CH 1-INP SMP5 |
0 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 50ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S81-TRIC GATE AND 1CH 2-INP SMP5 |
0 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
74AUP1G32GW-Q100/HIC GATE OR 1CH 2-INP 5TSSOP |
0 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
74LVC14APW/S505118IC INVERTER |
0 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | - | - | Schmitt Trigger | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

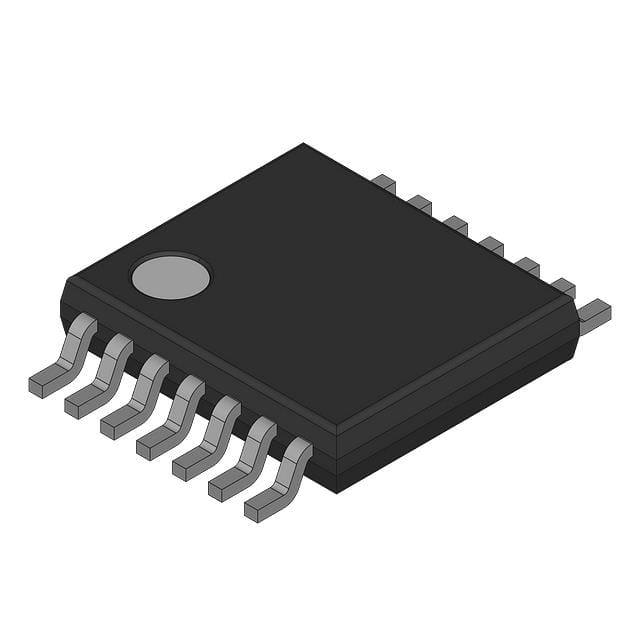

74LVC14APW/C2118IC INVERTER 6CH 6-INP 14TSSOP |
0 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
DM7430NIC GATE NAND 1CH 8-INP 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 1 | 8 | - | 4.75V ~ 5.25V | 6 mA | 400µA, 16mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
DM7432NIC GATE OR 4CH 2-INP 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | 38 mA | 800µA, 16mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|

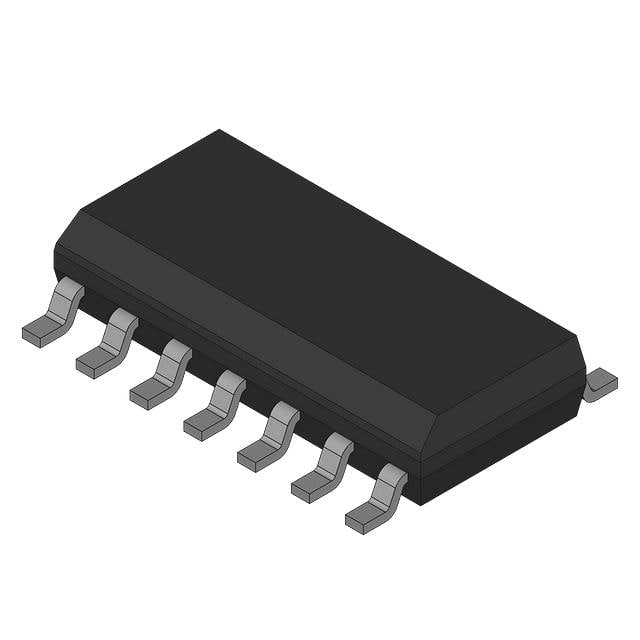

74HC86D/S400118IC GATE XOR 4CH 2-INP 14SO |
0 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
54H11FMIC GATE AND 3CH 3-INP 14CFP |
0 |
|
Datasheet |
54H | 14-CFlatPack | Bulk | Active | AND Gate | 3 | 3 | - | 4.5V ~ 5.5V | 48 mA | - | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
