Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G08GF/S505125IC GATE AND |
0 |
|
Datasheet |
74LVC | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|
74AUP1G04GX/S500125IC INVERTER 1CH 1-INP 5X2SON |
0 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Bulk | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|

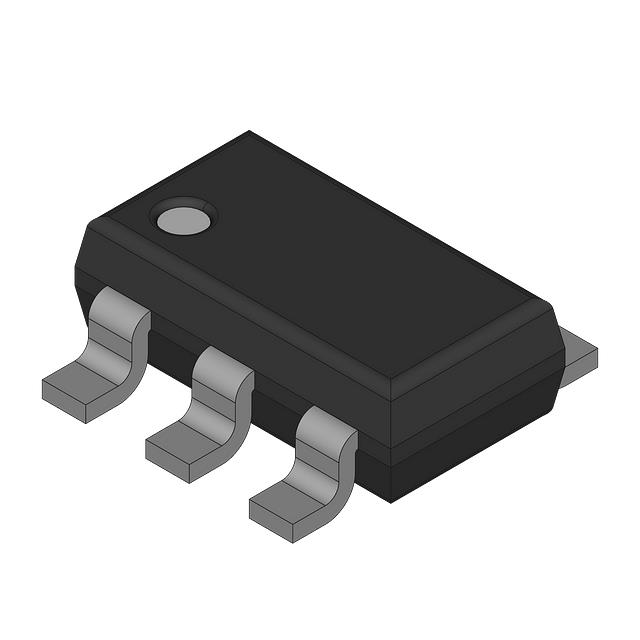

74LVC1G11GV132IC GATE AND |
0 |
|
Datasheet |
74LVC | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
74AUP1G06GW-Q100125IC INVERTER 1CH 1-INP 5TSSOP |
0 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
74AUP1G08GM/S711115IC GATE AND 1CH 2-INP 6XSON |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|

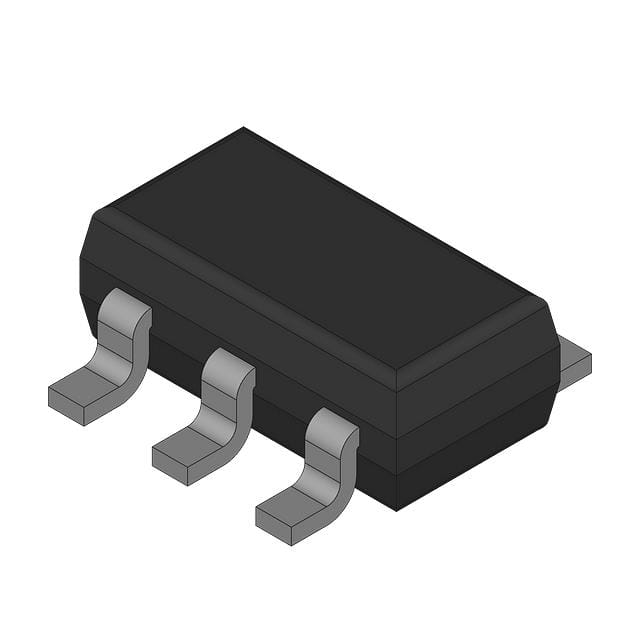

74LVC1G14GV-Q100125IC INVERT SCHMITT 1CH 1INP SC74A |
0 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-74A |
|
74HCT14D/C4118IC INVERT SCHMITT 6CH 1-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 34ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74AUP1G08GX/S500125IC GATE AND 1CH 2-INP 5X2SON |
0 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Bulk | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|
7420PCIC GATE NAND 2CH 4-INP 14DIP |
0 |
|
Datasheet |
- | 14-DIP | Bulk | Active | NAND Gate | 2 | 4 | - | 4.75V ~ 5.25V | 11 mA | - | - | - | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
74AUP2G04GM125IC INVERTER 2CH 2-INP 6XSON |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | Inverter | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
|
74HCT1G08GW/S400125IC GATE AND 1CH 2-INP 5TSSOP |
0 |
|
Datasheet |
74HCT | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | AND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 27ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74LVC1G86GV-Q100125IC GATE XOR |
0 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Bulk | Active | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
74HC10D/S400118IC GATE NAND 3CH 3-INP 14SO |
0 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
54LS26DMIC GATE NAND 4CH 2-INP 14CDIP |
0 |
|
Datasheet |
54LS | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | Open Collector | 4.5V ~ 5.5V | 4.4 mA | 1mA, - | - | - | - | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
CD4078BNSIC GATE OR/NOR 8-INP |
0 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74HC1GU04GV-Q100125IC INVERTER 1CH 1-INP 5TSOP |
0 |
|
Datasheet |
74HC | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 18ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
74HC1GU04GW/C125IC INVERTER 1CH 1-INP 5TSSOP |
0 |
|
Datasheet |
74HC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 18ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74LVC32APW/DG118IC GATE OR 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HC2G04GV-Q100125IC INVERT SCHMITT 2CH 2INP 6TSOP |
0 |
|
Datasheet |
74HC | SC-74, SOT-457 | Bulk | Active | Inverter | 2 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
|
74HC30PW/S400118IC GATE NAND 1CH 8-INP 14TSSOP |
0 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
