Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E19-00KSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 212gf | - | 0.718" (18.24mm) | 0.250" (6.35mm) | 0.093" (2.36mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
E19-50HSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 130gf | - | 0.280" (7.1mm) | 0.400" (10.1mm) | 0.140" (3.55mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
E19-50KSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | - | 0.687" (17.45mm) | 0.312" (7.9mm) | 0.140" (3.55mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|

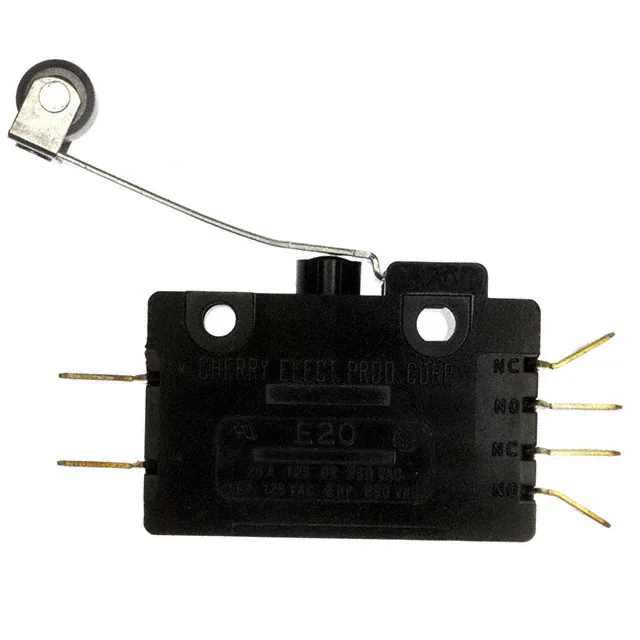

E20-50KSWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 312gf | - | 0.825" (21.0mm) | 0.524" (13.3mm) | 0.075" (1.9mm) | 0.146" (3.7mm) | -40°C ~ 105°C |
|

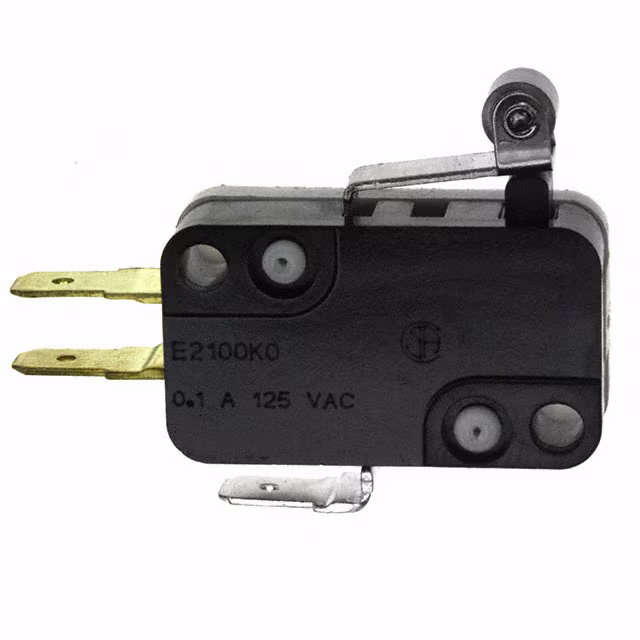

E21-00KSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | - | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
E21-50HSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 35gf | - | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|

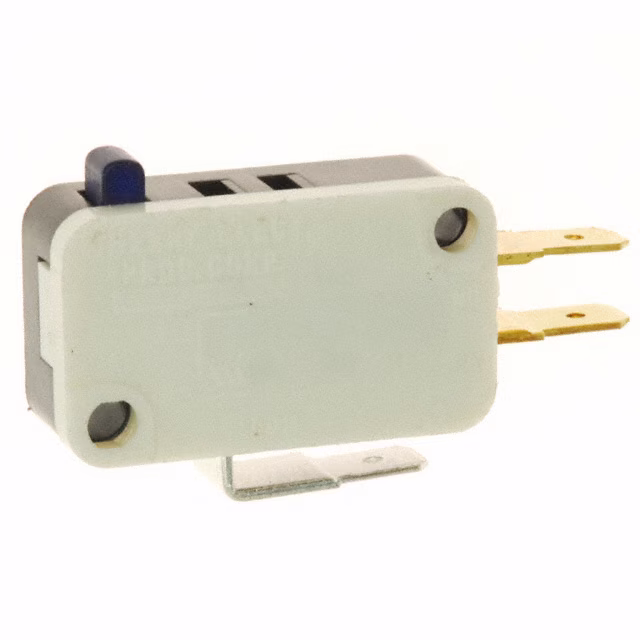

E22-00AXSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

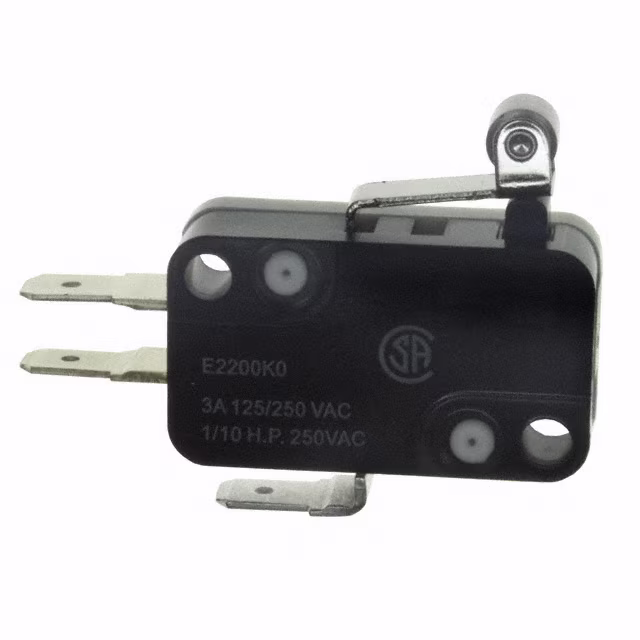

E22-00KSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | - | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
E22-50HXSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 8.000gf | - | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|
E22-50KSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 35gf | - | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|
E22-55HXSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 4.000gf | - | 0.600" (15.2mm) | 0.300" (7.6mm) | 0.065" (1.7mm) | 0.187" (4.75mm) | -40°C ~ 85°C |
|
E22-85HXSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 2.000gf | - | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.100" (2.54mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|

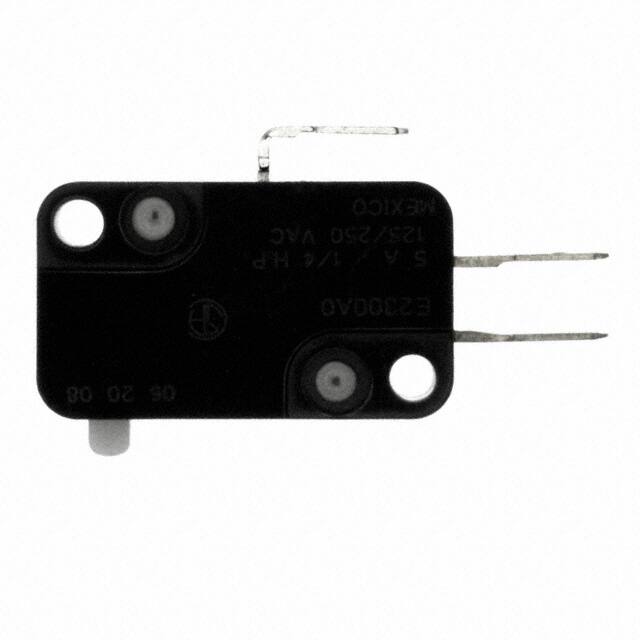

E23-00ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
E23-00KSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170gf | - | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
E23-50KSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 86gf | - | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
E23-55HXSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 10gf | - | 0.600" (15.2mm) | 0.300" (7.6mm) | 0.065" (1.7mm) | 0.187" (4.75mm) | -40°C ~ 85°C |
|
E23-85HXSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 6.000gf | - | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.100" (2.54mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|
E33-00ASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 285gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

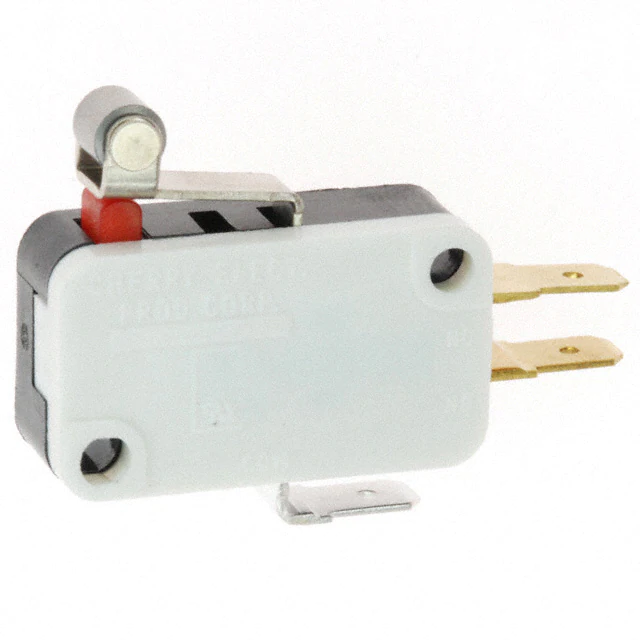

E33-00KSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 285gf | - | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

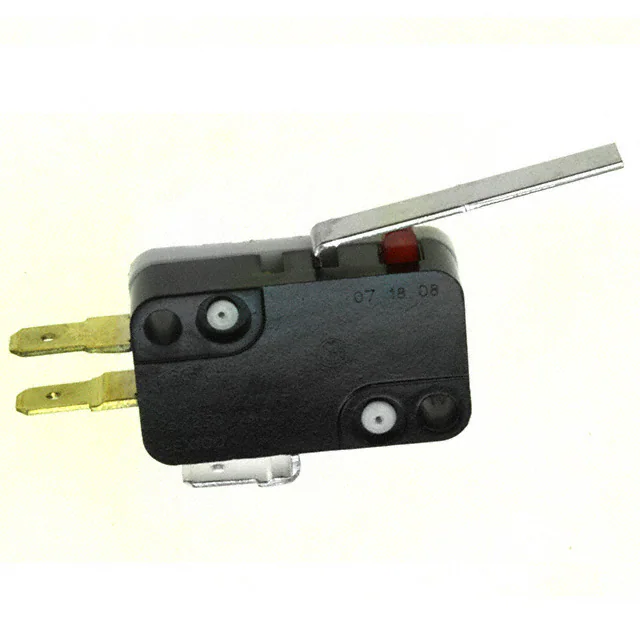

E33-50HSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 144gf | - | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
