Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V-10G3-1A4-KSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
V-10G4-1A4-KSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V-15G-6A5-KSWITCH SNAP ACT SPST-NO 15A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPST-NO | Off-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
X-10GL-BSWITCH SNAP ACTION SPDT 10A 30V |
0 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 200gf | 14gf | 0.685" (17.4mm) | - | 0.090" (2.3mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
E13-01HSWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | - | 0.312" (7.9mm) | 0.250" (6.35mm) | 0.093" (2.36mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
E22-50KLSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 100mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | - | 0.806" (20.5mm) | 0.200" (5.1mm) | 0.040" (1.0mm) | 0.120" (3.05mm) | -40°C ~ 85°C |
|

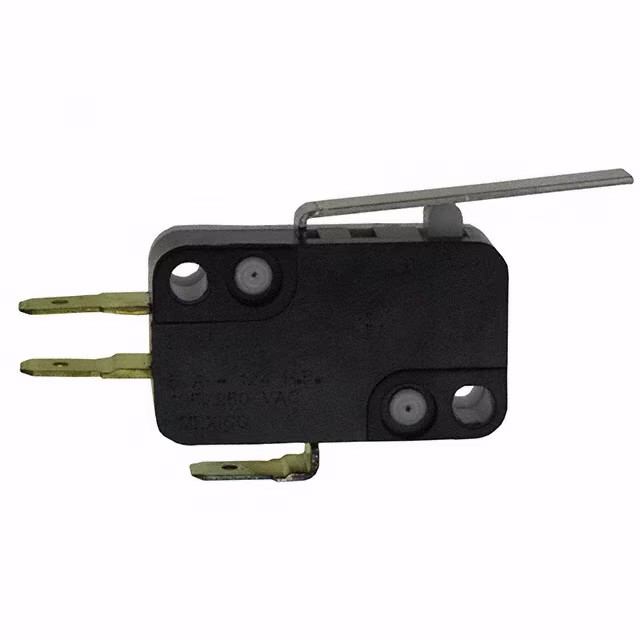

E23-50HSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | - | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|
E33-00AXSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
E33-50HLSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 86gf | - | 0.600" (15.2mm) | 0.219" (5.6mm) | 0.040" (1.0mm) | 0.130" (3.3mm) | -40°C ~ 85°C |
|
E51-50BSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Clockwise Rotation | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|
|
E51-50ESWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Counterclockwise Operation Only | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|

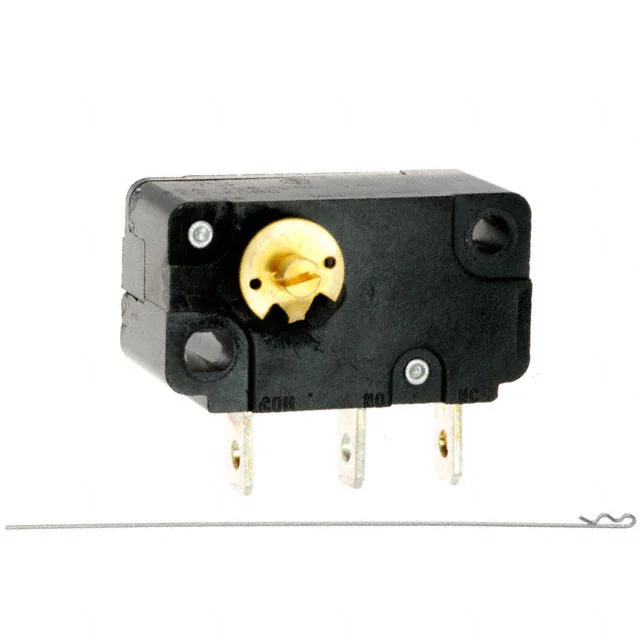

E51-60BSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Clockwise Rotation | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|
|
E51-60ESWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Counterclockwise Operation Only | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|

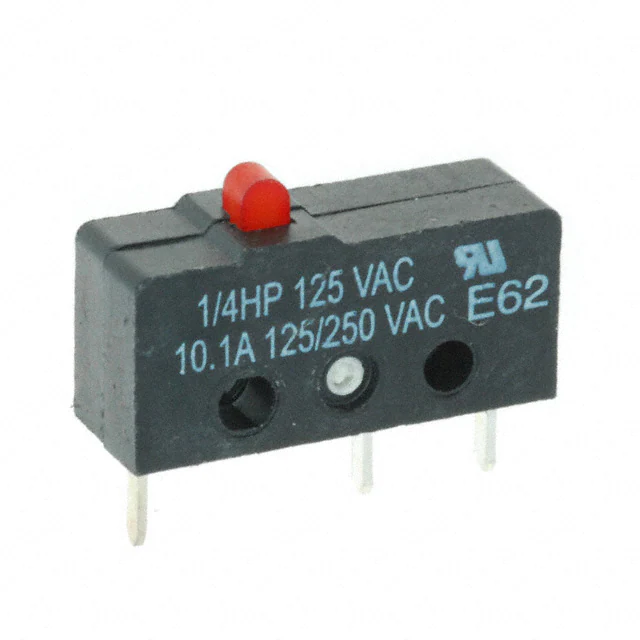

E62-50ASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 212gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

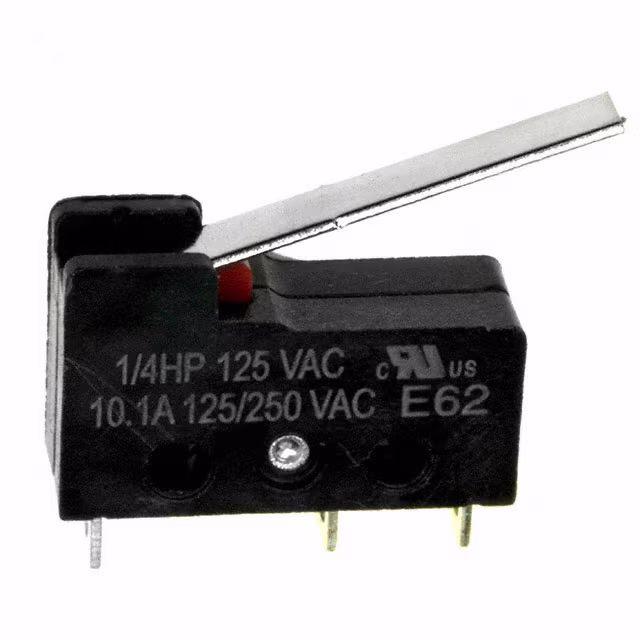

E62-60HSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 20gf | - | 0.350" (8.9mm) | 0.416" (10.6mm) | 0.050" (1.3mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
E63-10HSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 27gf | - | 0.350" (8.9mm) | 0.144" (3.66mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
E63-10KSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|

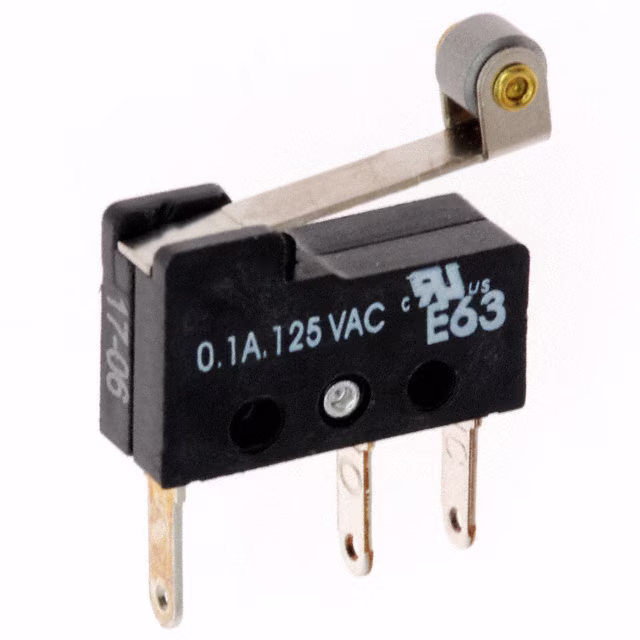

E63-30KSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 30gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|
E78-00ASWITCH SNAP ACT DPDT 0.1A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
|

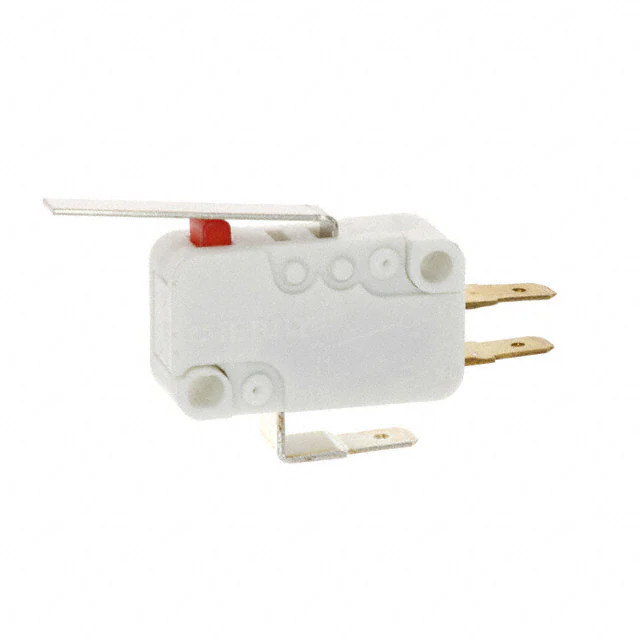

D44C-R1LDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 147gf | - | 0.551" (14.0mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
