Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH-131SWITCH PUSH/PULL SPDTX6 7A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38HE13-CASWITCH SNAP ACTION DPDT 1A 28V |
0 |
|
Datasheet |
HE | Bulk | Active | DPDT | On-Mom | 1A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | - | 2268 ~ 5443gf | 1361gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | - |
|
|
XF9F1152LIMIT SWITCH-WORLD SERVICE PARTS |
0 |
|
Datasheet |
XF9 | Bulk | Active | 3PST-NO | Off-Mom | - | - | - | - | - | - | IP43 | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XF9F1151LIMIT SWITCH-WORLD SERVICE PARTS |
0 |
|
Datasheet |
XF9 | Bulk | Active | 3PST-NO | Off-Mom | - | - | - | - | - | - | IP43 | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
59220-020SWITCH DETECT SPST-NC 0.5A 200V |
0 |
|
Datasheet |
59200 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 200 V | Angled Toggle (Detector) | Chassis Mount | Connector | - | Magnetic | 4.000gf | - | 2° | - | - | - | - |
|

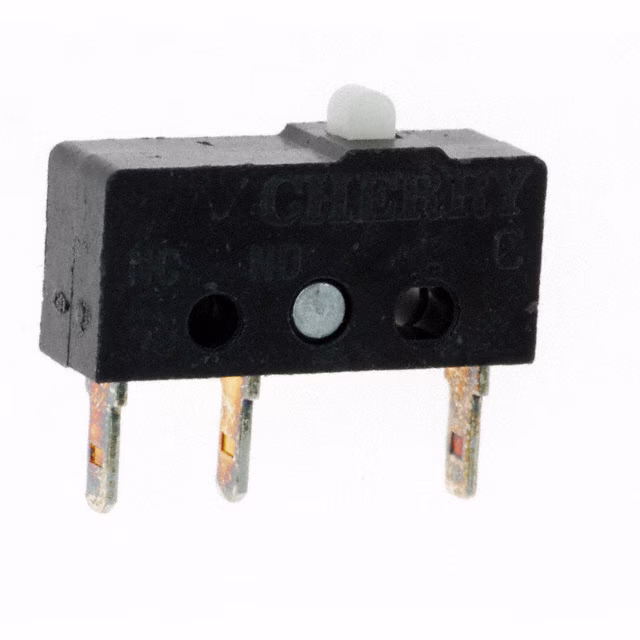

E61-00ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

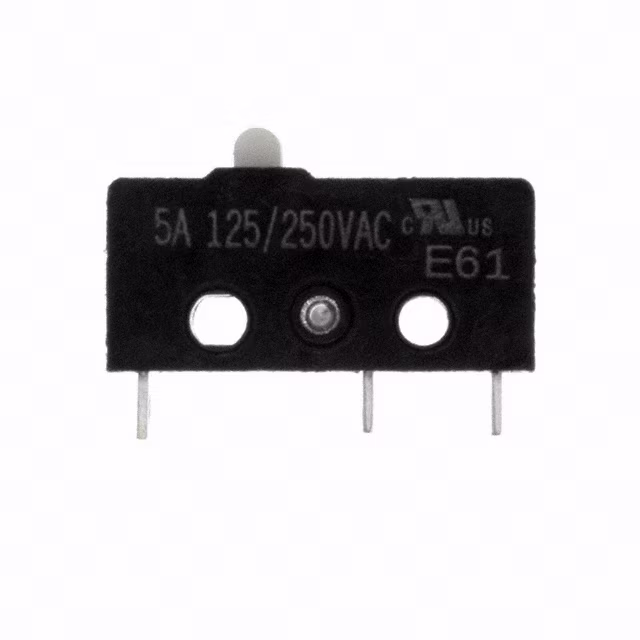

E61-10ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

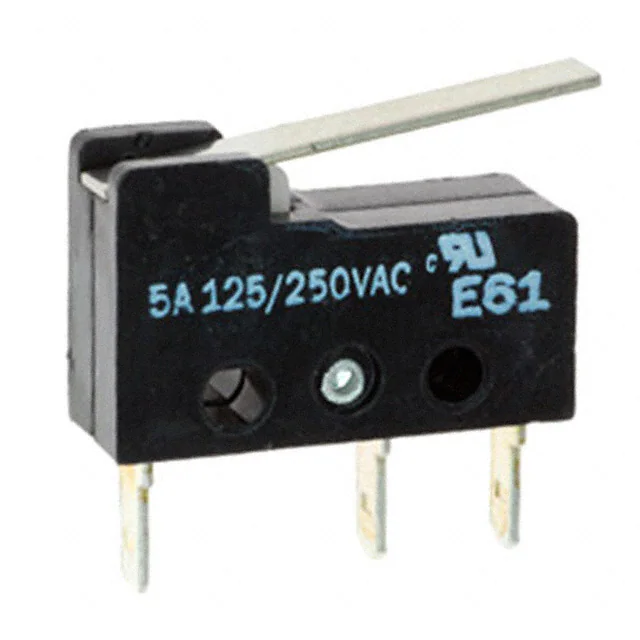

E61-00HSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 27gf | - | 0.350" (8.9mm) | 0.144" (3.66mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

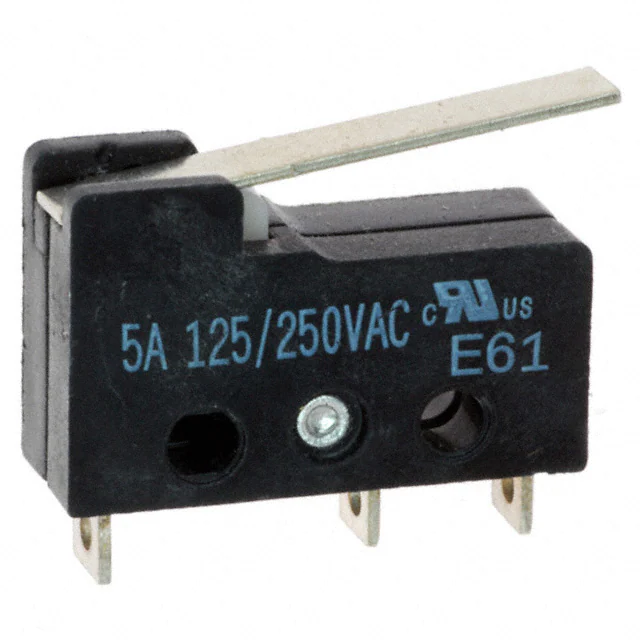

E61-10HSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 27gf | - | 0.350" (8.9mm) | 0.144" (3.66mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

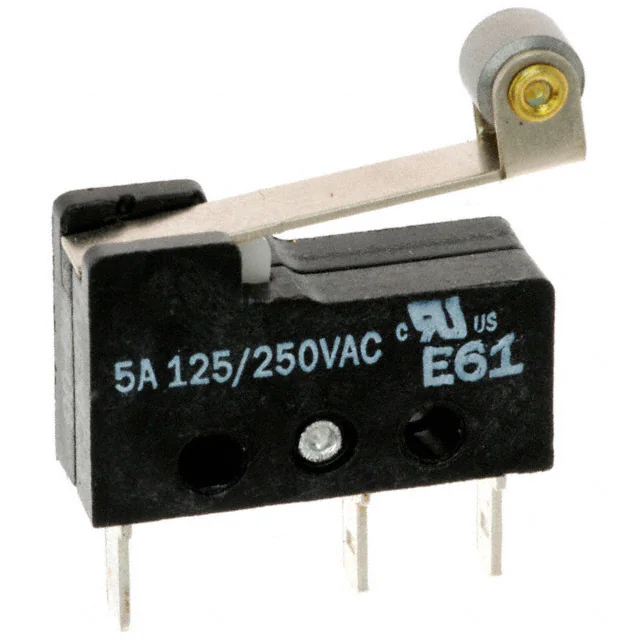

E61-00KSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 30gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|

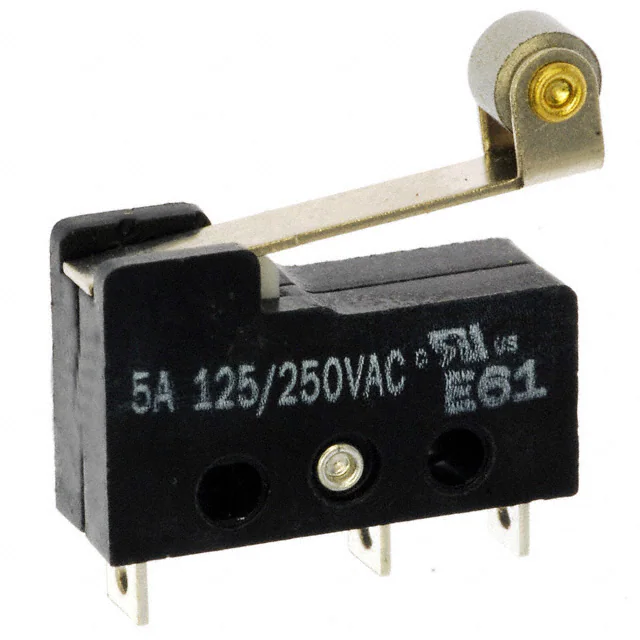

E61-10KSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
E | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|

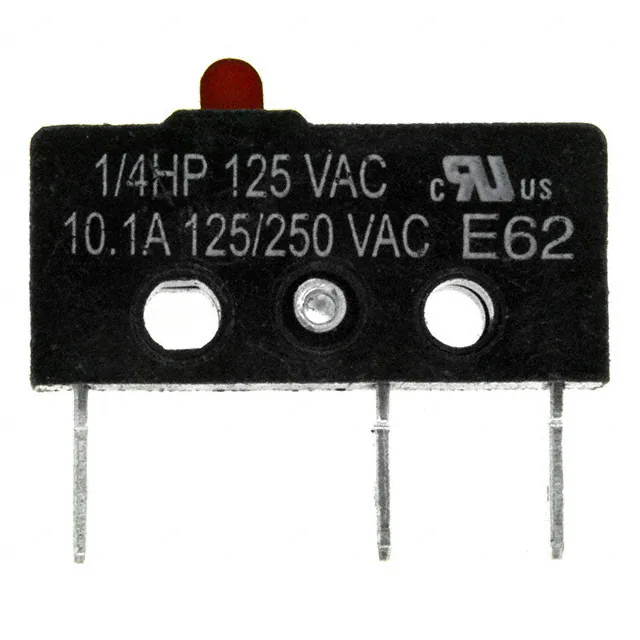

E62-00ASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 212gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

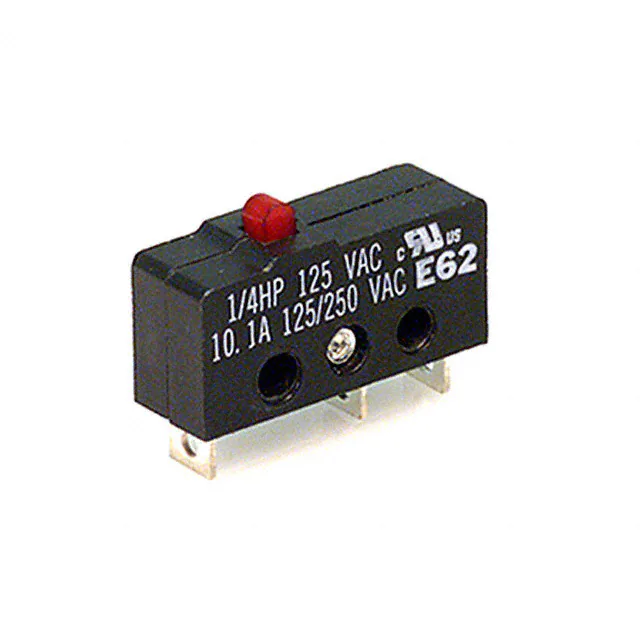

E62-10ASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 212gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

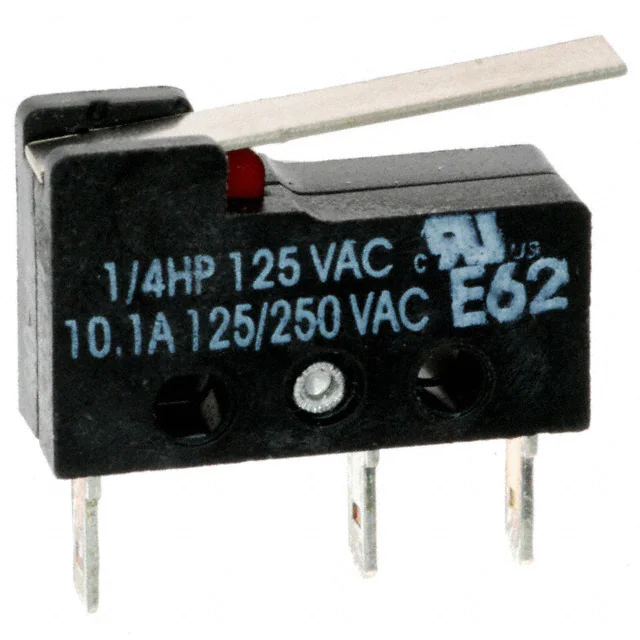

E62-00HSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 56gf | - | 0.350" (8.9mm) | 0.144" (3.66mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

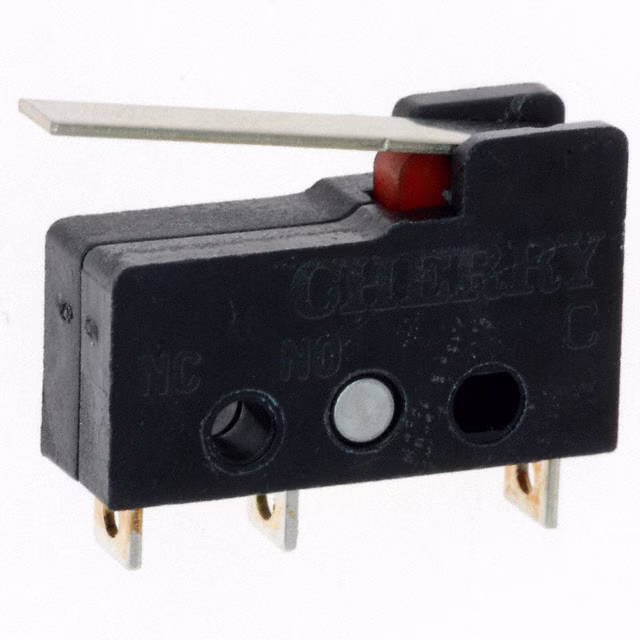

E62-10HSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 56gf | - | 0.350" (8.9mm) | 0.144" (3.66mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

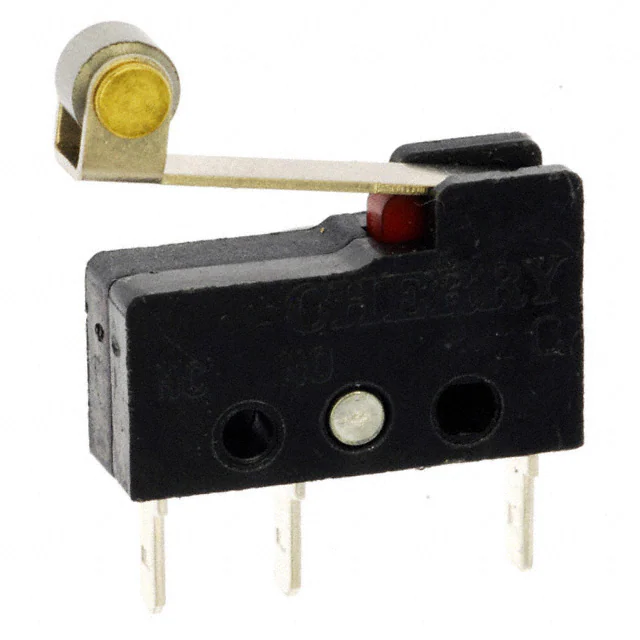

E62-00KSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 65gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|

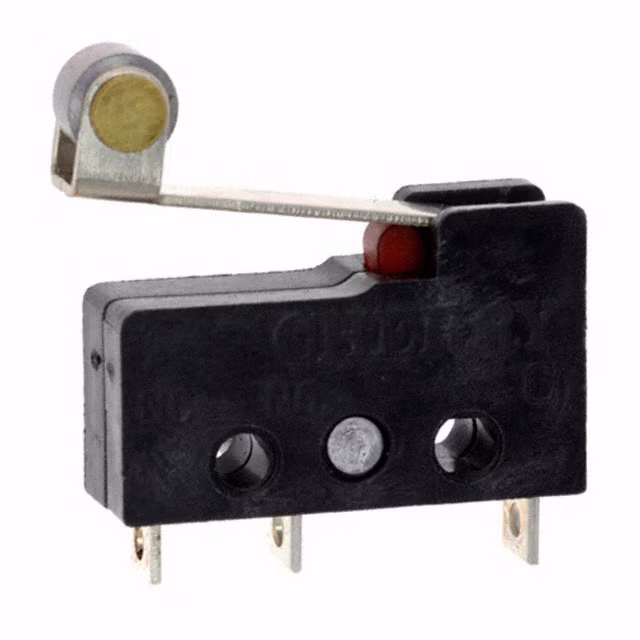

E62-10KSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 65gf | - | 0.571" (14.5mm) | 0.114" (2.9mm) | 0.015" (0.38mm) | 0.019" (0.48mm) | -40°C ~ 85°C |
|
D41C-R1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 173gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
D41C-R1LASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 194gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

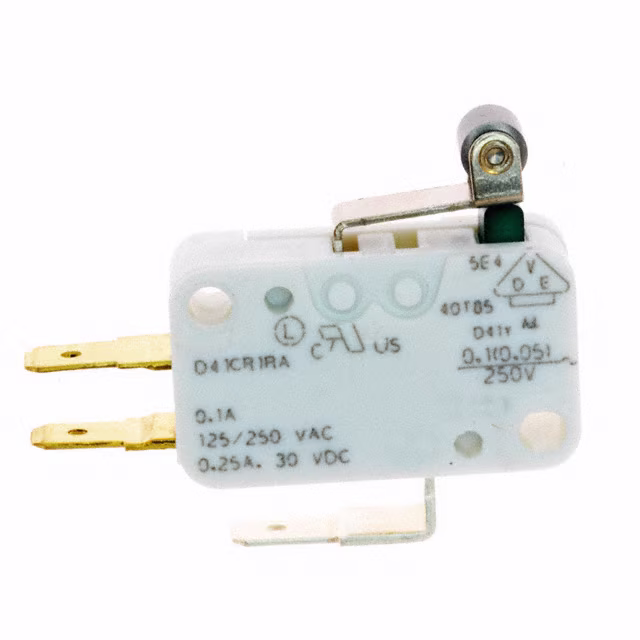

D41C-R1RASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 194gf | - | 0.776" (19.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
