Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D41L-R1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 46gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
D42L-R1XLSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 2.000gf | - | - | - | - | - | -40°C ~ 85°C |
|
D42L-R1AASWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 46gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

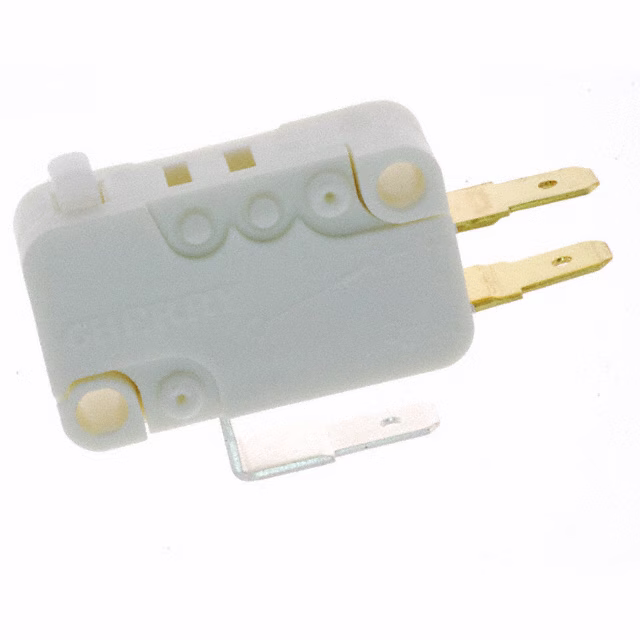

D43C-R1AASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 173gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

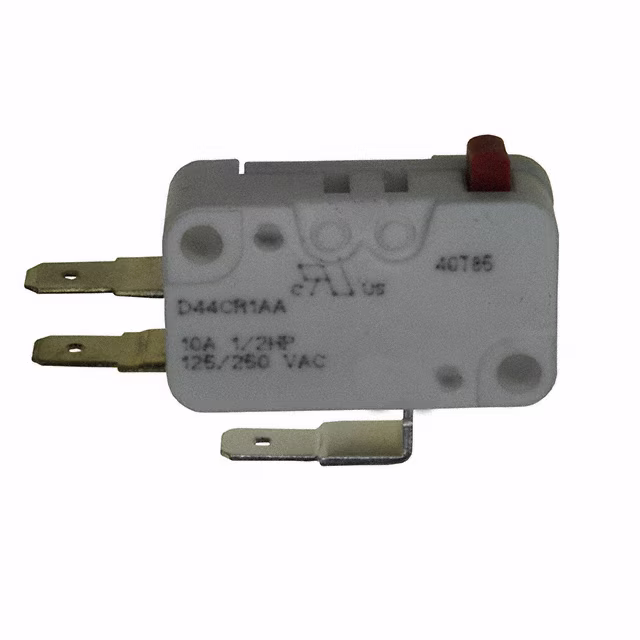

D44C-R1AASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 291gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
D44C-R1RASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 337gf | - | 0.776" (19.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
D44L-R1MLSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 10gf | - | 0.433" (11.0mm) | 0.500" (12.7mm) | 0.098" (2.5mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|

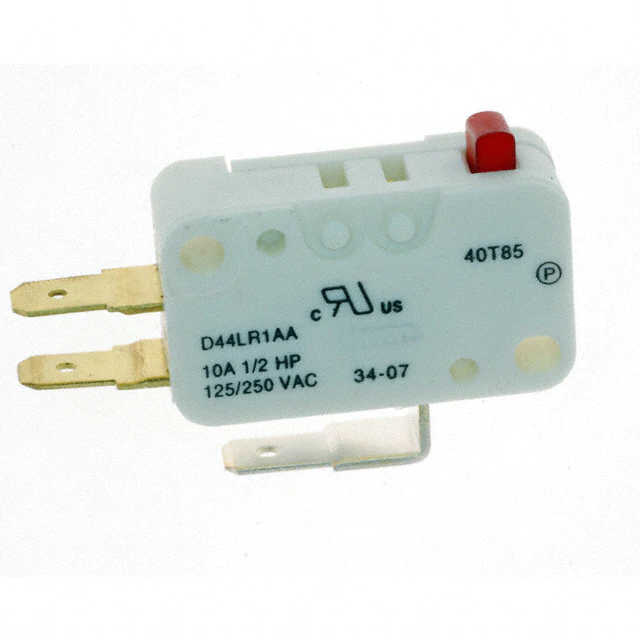

D44L-R1AASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 76gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
D45C-R1AASWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 408gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
D45L-R1MLSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 13gf | - | 0.433" (11.0mm) | 0.500" (12.7mm) | 0.098" (2.5mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|

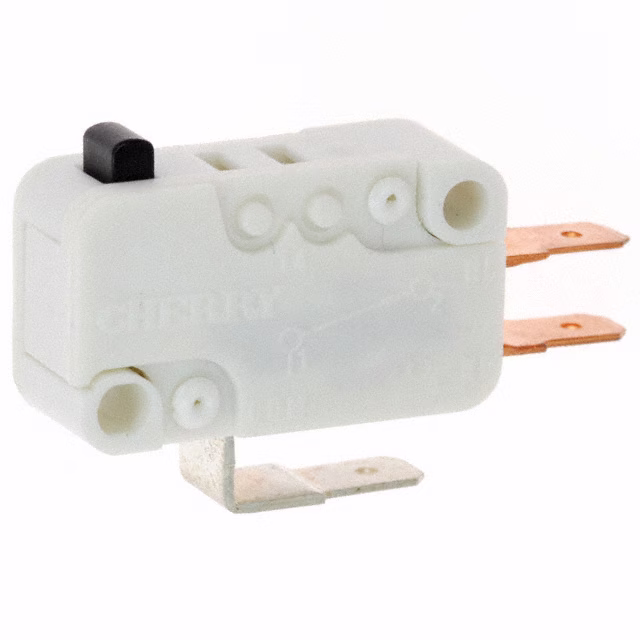

D45L-R1AASWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 102gf | - | 0.560" (14.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
DA3C-D1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.007" (0.18mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
|
DA3C-F1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 90gf | - | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.007" (0.18mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
|
DA3C-F1LBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 27gf | - | 0.350" (8.9mm) | 0.140" (3.6mm) | 0.027" (0.7mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
DA3C-D1LBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 27gf | - | 0.350" (8.9mm) | 0.140" (3.6mm) | 0.027" (0.7mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

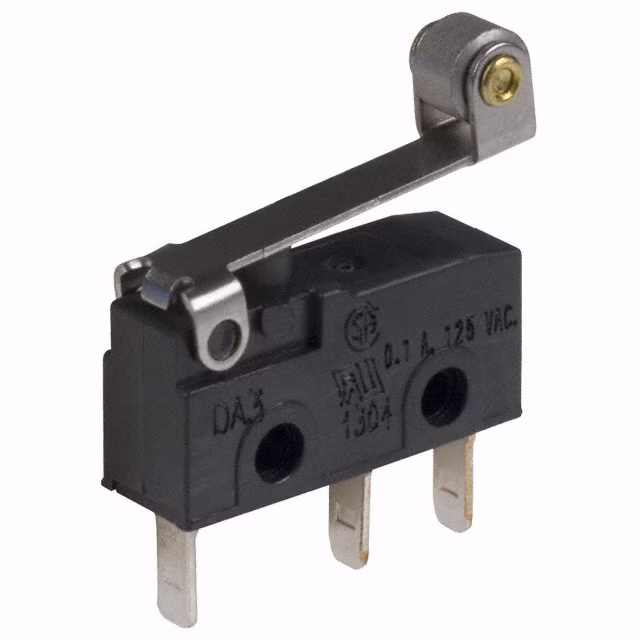

DA3C-F1RBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 30gf | - | 0.571" (14.5mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
DA3C-D1RBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.571" (14.5mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
E51-00BSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Clockwise Rotation | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|
|
E51-00ESWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Solder Lug | - | Counterclockwise Operation Only | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
|
|
E51-00RSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Clockwise Rotation | 0.101gfm | - | 15° | 15° | 3° | 17° | -40°C ~ 85°C |
