Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V3-1078SWITCH PLUNGER SPST 1A SCREW |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-2R389-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 227 ~ 368gf | 43 ~ 99gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
311SM8092-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 22gf | 6.118gf | 0.560" (14.2mm) | 0.100" (2.5mm) | 0.013" (0.33mm) | 0.020" (0.5mm) | -55°C ~ 125°C |
|
|
1DM181SWITCH SNAP ACTION 10A 125V |
0 |
|
- |
DM | Bulk | Active | - | - | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | - | - | - | - | -37°C ~ 82°C |
|
|
21SM157-TSWITCH SNAP ACTION SPDT 10A 30V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

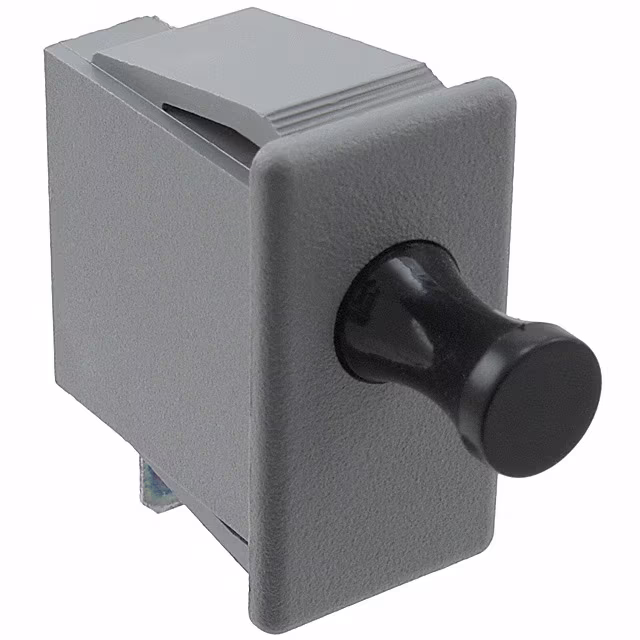

1DM301SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
DM | Bulk | Obsolete | SPDT | On-On | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | - | - | - | 0.625" (15.9mm) | -37°C ~ 82°C |
|
|
AP-HCM04SWITCH AUX MINI CONTACTOR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-HCM13SWITCH AUX MINI CONTACTOR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-HCM22SWITCH AUX MINI CONTACTOR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-HCM31SWITCH AUX MINI CONTACTOR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP-HCM40SWITCH AUX MINI CONTACTOR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-2R53-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
HBS1KAB4SP055CSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 255gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.0005" (0.013mm) | 0.005" (0.13mm) | -55°C ~ 150°C |
|

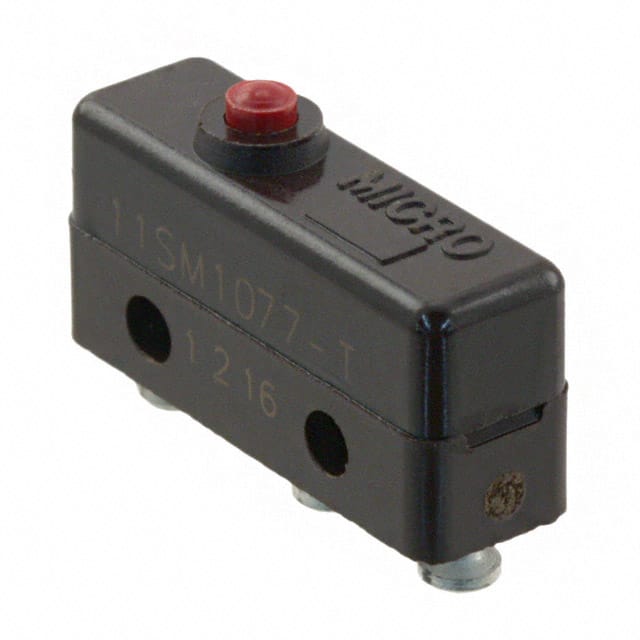

11SM1077-TSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
83181005SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
83181004SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
TFCGF5SP0040CSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
21SX39-H391SWITCH SNAP ACTION SPDT 7A 115V |
0 |
|
- |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
D2SW-3MS-0SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
BM-1R373SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 283gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
