Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BA-2R62-A2SWITCH BASIC LARGE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BM-1R231-A4SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
BM | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 283gf | - | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
BZ-2RQ124-D6SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|
ADPFF3T04ACSWITCH SNAP ACTION DPDT 25A 125V |
0 |
|
Datasheet |
A | Tray | Active | DPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 283gf | 28gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
311SM1005-TSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.453" (11.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
83160702SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 408gf | 153gf | 0.583" (14.8mm) | - | - | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
83160602SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | - | - | - | 510gf | 77gf | - | 0.125" (3.2mm) | 0.060" (1.5mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|

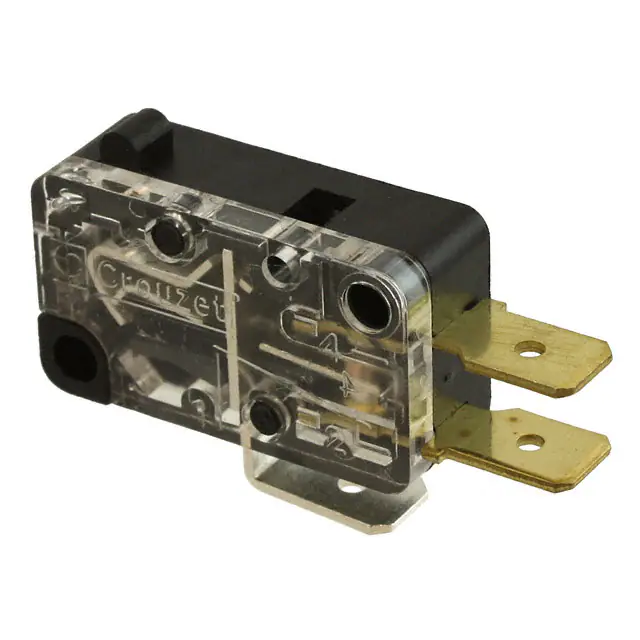

83160704SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | 250 V | Telescopic Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
D2HW-C271MSSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LCGGV6P00SCUESWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
LC | Bulk | Not For New Designs | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | Epoxy Sealed Terminals | 142gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
BZ-2RW80237-A2SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2SW-3L1MS-0SWITCH SNAP ACTION MINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-R2433-A2SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-R812SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198gf | 85gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0007" (0.018mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
BZ-RW84431-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 283gf | - | 0.750" (19.1mm) | - | 0.015" (0.38mm) | 0.125" (3.2mm) | -55°C ~ 85°C |
|
BZ-2R268-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 227 ~ 368gf | 43 ~ 99gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
DS2F5BQ3SWITCH SNAP ACT DPDT 100MA 125V |
0 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
|
WA-2R-A21SWITCH SNAP ACT SPST-NC 20A 125V |
0 |
|
Datasheet |
WA | Bulk | Active | SPST-NC | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
BA-2R62SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

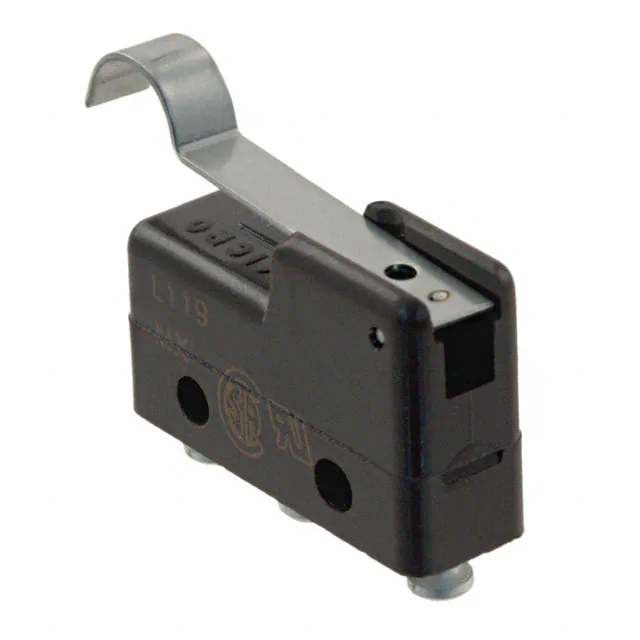

311SM704-TSWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 16gf | 3.059gf | 0.460" (11.7mm) | 0.085" (2.16mm) | 0.013" (0.33mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
