Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HK3141DAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141DABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141AABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141CAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
ASKHF3BB4ACSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Red Button | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
D2HW-BR272MSSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
11SM866SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
D2FW-G282MSWITCH SNAP ACT SPST-NC 1A 30V |
0 |
|
Datasheet |
D2FW-G | Tray | Active | SPST-NC | On-Mom | 1A (DC) | - | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 60gf | 0.472" (12.0mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
V15W-WP200A06-W2SWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
V15W | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 20gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
10BS108LARGE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D2FW-G272M(D)SWITCH SNAP ACT SPST-NC 1A 30V |
0 |
|
Datasheet |
D2FW-G | Tray | Active | SPST-NC | On-Mom | 1A (DC) | - | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 250gf | 30gf | 0.453" (11.5mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
D2HW-BL243MRSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 3.059gf | 0.551" (14.0mm) | - | 0.025" (0.6mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
LCGGV6P00ECUSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
LC | Bulk | Not For New Designs | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 142gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|

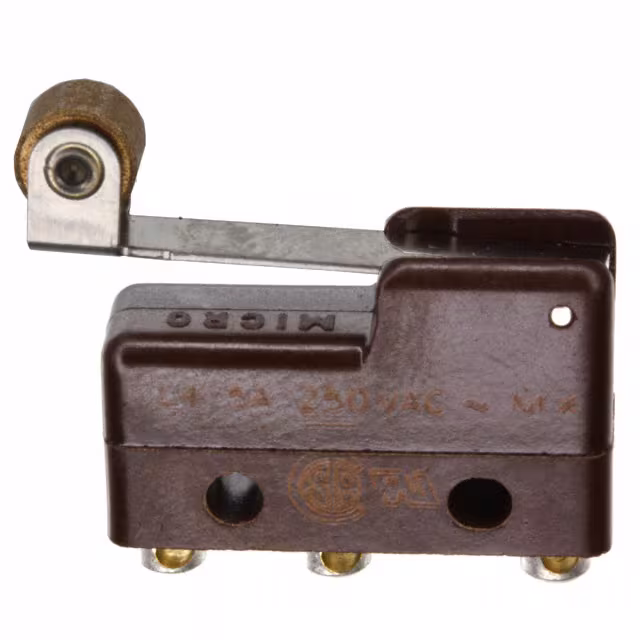

311SM6SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
|
11SM1077-H4SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
TFCJJ6ST145ACSWITCH SNAP ACTION SPDT 15A 227V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 227 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 10gf | 0.730" (18.5mm) | 0.100" (2.54mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
ZW10F90AW1SWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
831830CFD0.0SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
.jpg)
|
D2FW-G081M(D)SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D2FW-G | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 60gf | 0.472" (12.0mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
BZ-R1692SWITCH BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
