Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW-3-3MS-0SWITCH SNAP ACT SPST-NO 3A 125V |
0 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.025" (0.65mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
BA-2R233-A4SWITCH BASIC LARGE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
41SM301SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
D2MC-5F1SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2MC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Without | Chassis Mount | Quick Connect - 0.205" (5.2mm) | IP40 | - | 0.076gfm | 0.009gfm | - | 21° | 3° | 17° | -25°C ~ 80°C |
|
|
YE-2R-A4SWITCH SNAP ACTION SPST-NO 25A |
0 |
|
- |
YE | Bulk | Obsolete | SPST-NO | Off-Mom | 25A | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
AZH1224SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 250gf | 40gf | 1.350" (34.3mm) | 0.157" (4.0mm) | 0.025" (0.6mm) | 0.276" (7.0mm) | -10°C ~ 80°C |
|
|
AZH1244SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
BM-1R392-A2SWITCH BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S-3-BESWITCH MICRO SPDT 6A 250V |
0 |
|
- |
- | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | - | - | - | - | - | - | -20°C ~ 85°C |
|

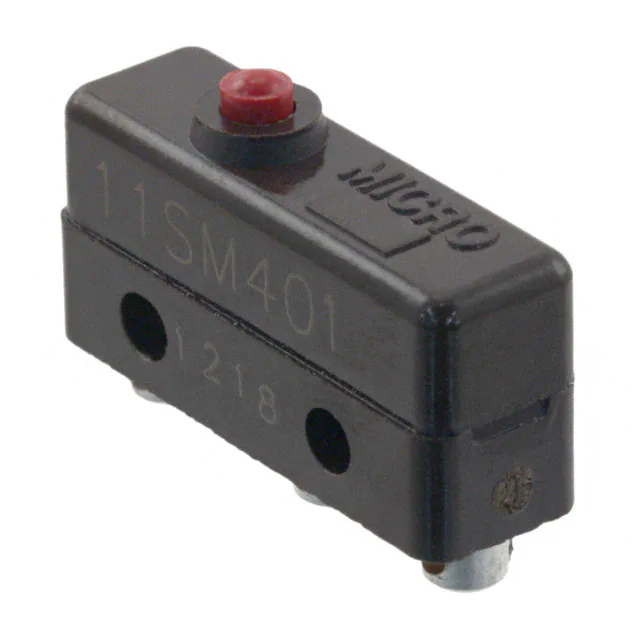

11SM401SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
83132030SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83132 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 163gf | 41gf | 0.303" (7.7mm) | - | 0.018" (0.45mm) | 0.011" (0.3mm) | -20°C ~ 125°C |
|

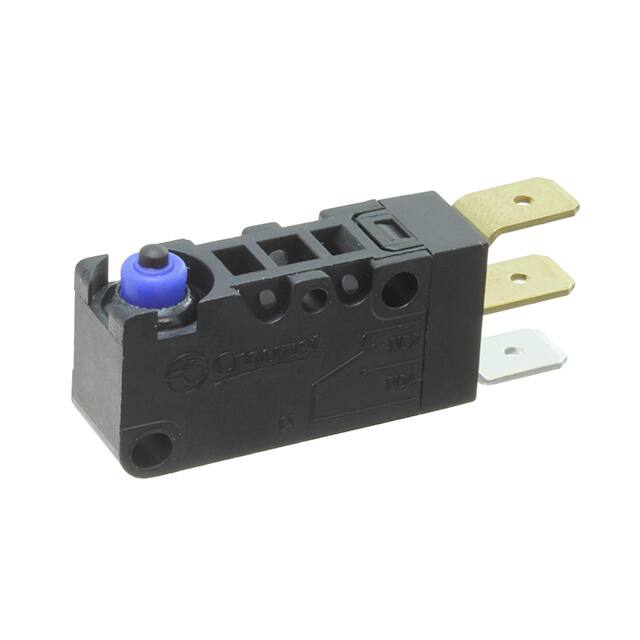

83299001SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
V3DS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | 102gf | 10gf | 0.579" (14.7mm) | - | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
83180004SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
83180005SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
BZ-R173-A4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 283gf | - | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0005" (0.013mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
2DM438SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DM | Bulk | Obsolete | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 680gf | - | 0.745" (18.9mm) | - | - | 0.590" (15.0mm) | -37°C ~ 82°C |
|
ADPDC2A24ACSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
A | Tray | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 28gf | 0.718" (18.24mm) | 0.250" (6.35mm) | - | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
11SM1-TN189SUBMINIATURE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZW50F92SW1-ASWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
- |
ZW | Box | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | - | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
|
BZ-R294SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
