Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BA-2RV339-A2LARGE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V15W11-DZ200A02-W2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
ZD20SH35EASWITCH SNP ACT SPDT-NO 0.01A 12V |
0 |
|
- |
ZD | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Lever, Simulated Roller | - | - | IP00 | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

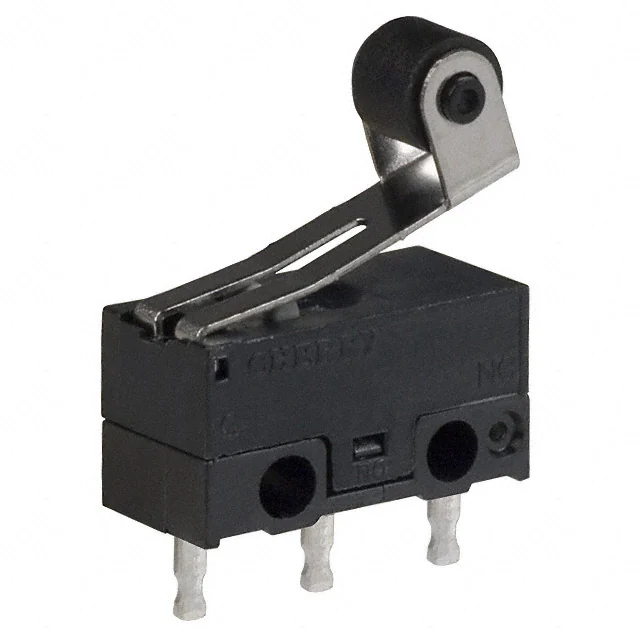

DG23-B1RASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
ASKHF3J04ACSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
LCGGX1A10EWSWITCH SNAP ACT SPST-NC 1A 125V |
0 |
|
Datasheet |
LC | Bulk | Active | SPST-NC | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
TFCCH8SP004AYSWITCH SNAP ACT SPST-NO 5A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 15gf | 6.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
ABV1616513SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 13gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|
TMCGD6ST1640CSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 20gf | 5.000gf | 0.600" (15.2mm) | 0.312" (7.9mm) | 0.090" (2.3mm) | 0.141" (3.6mm) | -55°C ~ 150°C |
|
|
TFECF5VA1540CSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 130gf | 20gf | 0.264" (6.7mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
AV6352643-ASWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.618" (15.7mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
MDU-ZM1-004SWITCH BASIC ASSEMBLY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

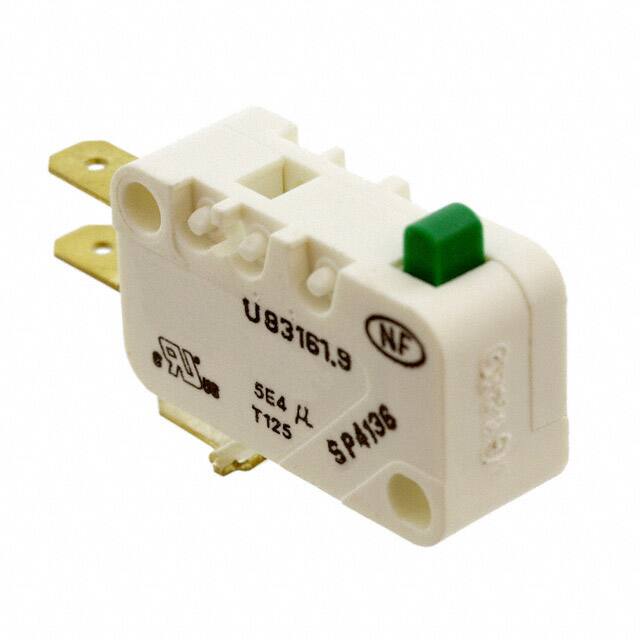

83161911SWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | 4.000gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
ABV1610403SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
TFCDH8ST1640CSWITCH SNAP ACTION SPDT 5A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 8.000gf | 2.000gf | 0.600" (15.2mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
ABV1622503SWITCH SNAP ACT SPST-NC 5A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 13gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
TFCJK6ST155ACSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 8.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

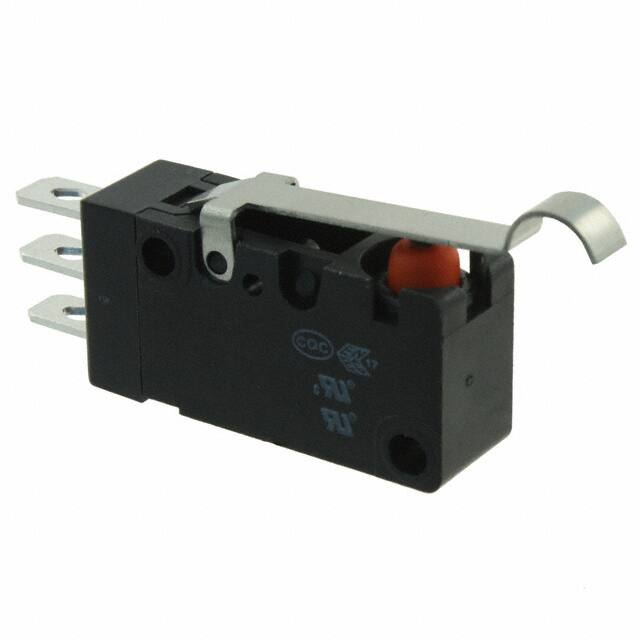

V15W11-DZ200A04-W2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
TFCDH8VP0040CSWITCH SNAP ACTION SPDT 5A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
ZW50F70AD1SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZW | Tray | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP00 | - | 203gf | - | - | - | - | - | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
