Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABV1634513SWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 13gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
TMCJG6SP0040CSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 60gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
|
10-10064LIMIT SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABS5610318SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 75gf | 10gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
|
83262023SWITCH SNAP ACTION SPDT 20A 250V |
0 |
|
Datasheet |
V3D | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 25gf | 0.606" (15.4mm) | - | 0.031" (0.8mm) | 0.079" (2.0mm) | -20°C ~ 125°C |
|
|
831614C6.CB.MRSWITCH SNAP ACTION 6A 3-16 |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VM3SCGF3002L00SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
|
ABV1215413RSWITCH SNAP ACTION SPDT 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 1A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 110gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
V-155-1B5SWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
TMCGD6SP0040WSWITCH SNAP ACT SPST-NC 10A 125V |
0 |
|
Datasheet |
TM | Bulk | Active | SPST-NC | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
D2MV11C2SWITCH SNAP ACTION SPDT 1A 125V |
2 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 1.020gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.051" (1.3mm) | -25°C ~ 80°C |
|
V7-1V29E9-263SWITCH SNAP ACT SPST-NO 21A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 21A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 110gf | 7.000gf | 0.730" (18.5mm) | 0.114" (2.9mm) | 0.025" (0.6mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
TFS01ST2040CSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
TFS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 90gf | 10gf | 0.591" (15.00mm) | 0.200" (5.1mm) | 0.045" (1.1mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
AV6322643-ASWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.394" (10.0mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AV6342643-ASWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.480" (12.2mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
VM3SCGF3002L04SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
|
ABV1630503SWITCH SNAP ACT SPST-NO 5A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
VM3SCGF3002L02SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 180gf | 0.720" (18.3mm) | 0.118" (3.0mm) | 0.060" (1.5mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|

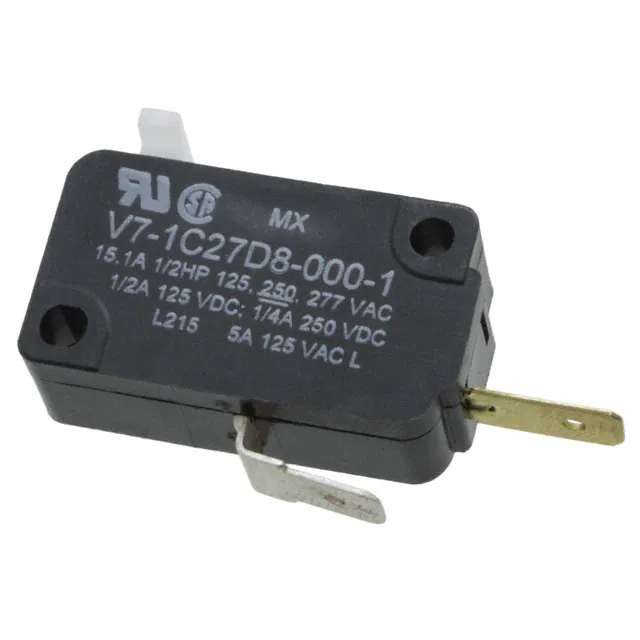

V7-1C27D8-000-1SWITCH SNAP ACT SPST-NO 15A 125V |
25 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.630" (16.0mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
V7-1B17D8-122-1SWITCH STRGHT LVR SPDT 11A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
