Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
87316-00SWITCH AUTO OPERATOR CONTROL |
0 |
|
- |
* | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABV1615503RSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 220gf | 40gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ABV1620619SWITCH SNAP ACT SPST-NC 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Obsolete | SPST-NC | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 60gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
11SM98-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.321" (8.2mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
ABV1612618SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
- |
ABV | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
11SM3-T2-MSCSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
83186002SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
83186006SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
V15W-WC150A04-KW3SWITCH BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V15W-WC200A04-KW3SWITCH BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V7-1B17D8-048-SSWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Actuator Seal Boot | 50gf | 4.000gf | 0.610" (15.5mm) | 0.236" (6.0mm) | 0.050" (1.3mm) | 0.115" (2.9mm) | -40°C ~ 85°C |
|
|
TFS01SA0540CSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
TFS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 30gf | 0.812" (20.6mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
ZW50F15CD1SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZW | Tray | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | - | - | - | - | - | - | -40°C ~ 120°C |
|

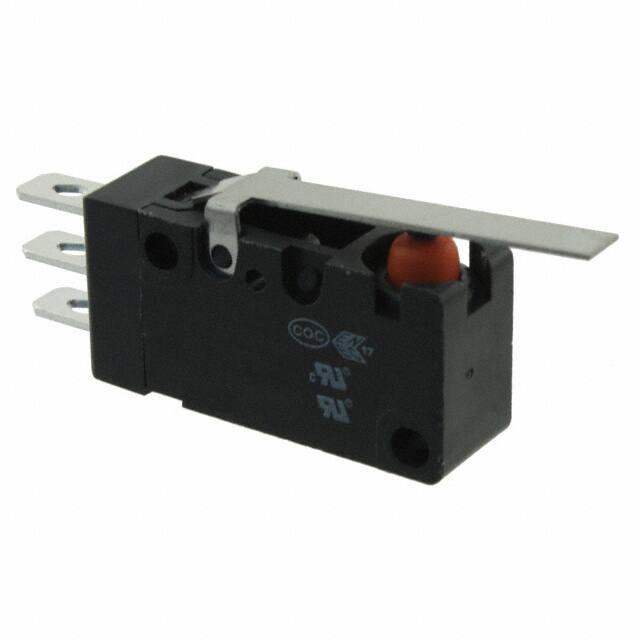

V15W11DZ200A02-AW1SWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
TFECJ6VP004ACSWITCH SNAP ACTION SPDT 15A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 56gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
TMCJD6ST1440CSWITCH SNAP ACTION SPDT 10A 125V |
22 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 20gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
|
|
ABV1622413SWITCH SNAP ACT SPST-NC 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 1A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABV1632413SWITCH SNAP ACT SPST-NO 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
X0230013SWITCH SNAP ACTION SPDT 12A 250V |
0 |
|
Datasheet |
83170 | Box | Active | SPDT | On-Mom | 12A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 224gf | - | - | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -40°C ~ 150°C |
|
|
V3L-63SWITCH SIM ROLL SPDT 15A SOLDER |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
