Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83183002SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
ABV1630403SWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Tube | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
TFS10ST20WCCBSSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
TFS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP40 | - | 90gf | 10gf | 0.264" (6.7mm) | 0.020" (0.5mm) | 0.045" (1.1mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
AV632264-ASWITCH SNAP ACTION |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASGGF5P04ACSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 227gf | 28gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
TFEEJ6ST104AYSWITCH SNAP ACT SPST-NO 15A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 400gf | 110gf | 0.600" (15.2mm) | 0.060" (1.5mm) | 0.015" (0.38mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
VM3SCGF3002L01SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
V15T22-CZ300A59SWITCH BASIC V |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TMCGD6ST254ACSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 30gf | 4.000gf | 0.600" (15.2mm) | 0.330" (8.4mm) | 0.070" (1.8mm) | 0.100" (2.54mm) | -55°C ~ 150°C |
|
TFCDH8SP0040CSWITCH SNAP ACTION SPDT 5A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

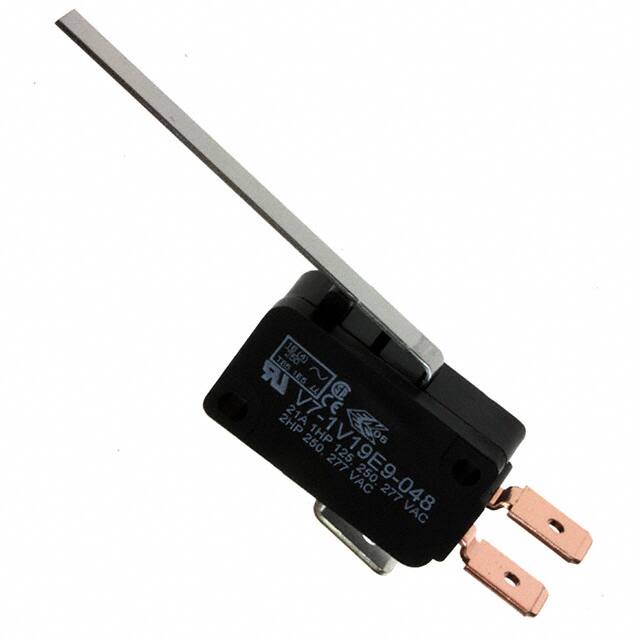

V7-1V19E9-048SWITCH SNAP ACTION SPDT 21A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 21A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 55gf | 3.000gf | 0.606" (15.4mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.120" (3.05mm) | -40°C ~ 85°C |
|
|
V7-1Z19E9-022SWITCH SNAP ACTION SPDT 25A 277V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 25A (AC) | 277 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
ABJ473840SWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 22gf | 0.420" (10.7mm) | 0.102" (2.6mm) | 0.020" (0.5mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
ABJ573840SWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 22gf | 0.420" (10.7mm) | 0.102" (2.6mm) | 0.020" (0.5mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
ABV1612413SWITCH SNAP ACTION SPDT 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 1A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
D2VW-01L1A-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 20gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
83161098SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
- |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 306gf | 102gf | 0.846" (21.5mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
ABS463840SWITCH SNAP ACT SPST-NO 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPST-NO | Off-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 90gf | 17gf | 0.571" (14.50mm) | 0.178" (4.5mm) | 0.040" (1.0mm) | 0.100" (2.5mm) | -40°C ~ 85°C |
|
|
ZW10E90AW3-001SWITCH SNP ACT SPDT-NO 0.1A 125V |
0 |
|
- |
ZW | Box | Obsolete | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | - | - | - | -40°C ~ 120°C |
|
|
V7-7B17D862-201SWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 283gf | 28gf | 0.806" (20.5mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
