Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3SBGF3002L06SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
VM3SAGF3002L06SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
AP-HN01SWITCH AUX CONTACT 1NC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83170864SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 153gf | 30gf | 0.497" (12.6mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -40°C ~ 125°C |
|
V7-2S17D8-201SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 7.000gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.015" (0.38mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
V7-1S17D8-201SWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170gf | 20gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
V7-2S17D8-207SWITCH V BASIC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

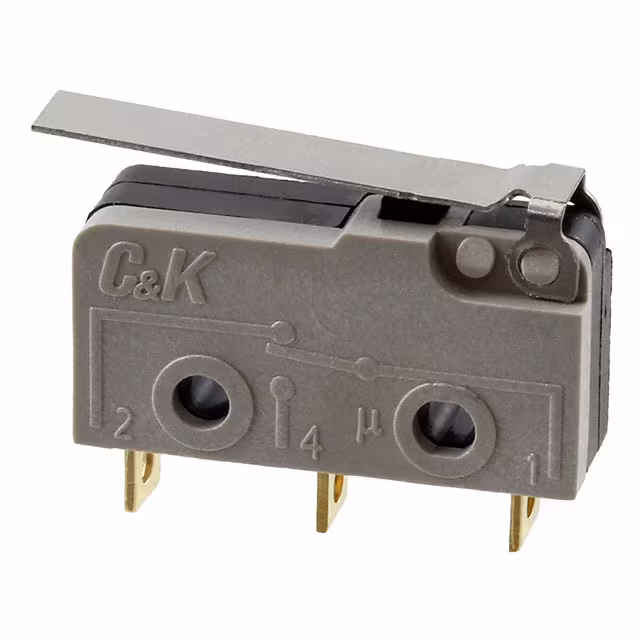

LCGGF5T10ECSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.340" (8.6mm) | 0.140" (3.6mm) | 0.035" (0.9mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
|
ZW50F91FW1-B-ZSWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
- |
ZW | Box | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
|
VM3SAGF3002L01SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|

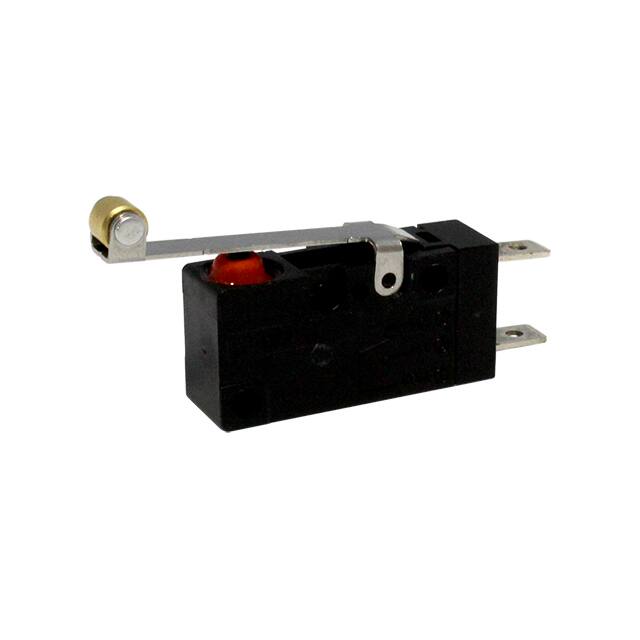

VM3SBGF3002L01SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
D2QW-C083MSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C083MRSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZW50F99CW1-BSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 66gf | 13gf | 0.345" (8.8mm) | 0.188" (4.8mm) | 0.028" (0.7mm) | 0.039" (1.0mm) | -40°C ~ 105°C |
|
|
ZW50F91HW1SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZW | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 95gf | 19gf | 0.420" (10.7mm) | 0.180" (4.6mm) | 0.026" (0.65mm) | 0.039" (1.0mm) | -40°C ~ 105°C |
|
D2MV01L221C3SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 4.079gf | 0.815" (20.7mm) | 0.067" (1.7mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
V15W-SZ200A04-W201SWITCH BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-4A17D8-407SWITCH PLUNGR SPDT 5A SILVR QC |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 17gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
V15W11-EZ100-W2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15W | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
83163222SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.806" (20.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
