Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

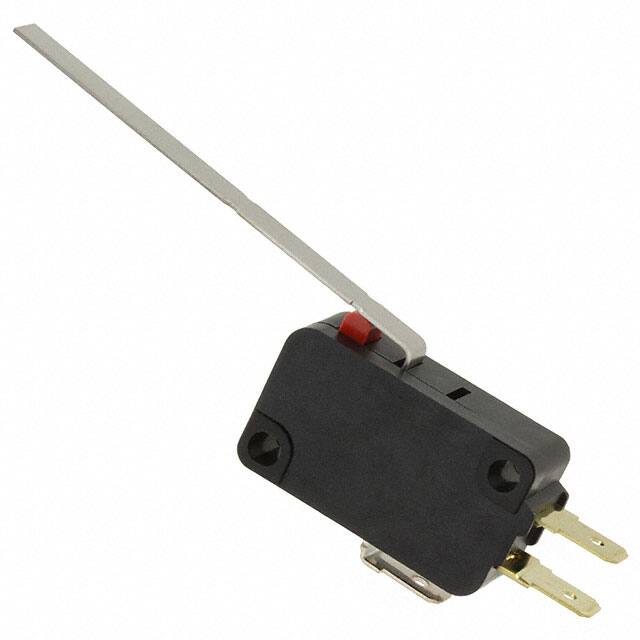

VX-013K-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 10gf | - | 0.600" (15.2mm) | 0.591" (15.0mm) | 0.150" (3.8mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
D3V-21G4M-1C4A BY OMISWITCH SNAP ACTION SPDT 21A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 85gf | 7.000gf | 0.736" (18.7mm) | 0.157" (4.0mm) | 0.055" (1.4mm) | 0.063" (1.6mm) | -25°C ~ 85°C |
|
|
D3V-21G-1F4A-ESWITCH DETECTOR SPDT 21A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
ZX40E10C01-TSWITCH BASIC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G00987225Linear IC's |
0 |
|
Datasheet |
ZMV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | 20gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
|
G00987240Linear IC's |
0 |
|
Datasheet |
ZMV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | 20gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
V-103-4A5-TSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 200gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 150°C |
|
C0056RBSWITCH SNP ACT SPST-NC 0.2A 250V |
0 |
|
Datasheet |
0055 | Bulk | Active | SPST-NC | On-Mom | 200mA (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | - |
|
AV15653FSWITCH SNAP ACT SPST-NC 10A 125V |
0 |
|
Datasheet |
AV1 | Bulk | Obsolete | SPST-NC | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 295gf | - | 0.587" (14.9mm) | - | - | 0.168" (4.3mm) | -25°C ~ 85°C |
|
|
H3141AAKBBSWITCH DETECTOR DPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | DPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
V15S05-EZ200A06-ASWITCH MICRO |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCS052T43PDCSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
LCS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 33gf | 7.000gf | 0.346" (8.80mm) | 0.535" (13.6mm) | 0.140" (3.56mm) | 0.115" (2.9mm) | -40°C ~ 120°C |
|
ZD30S60A05-ZSWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
ZD | Tray | Obsolete | SPDT | On-Mom | 100mA (AC), 3A (DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP00 | Support Posts | 130gf | 13gf | 0.270" (6.85mm) | 0.030" (0.8mm) | 0.008" (0.2mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|
SS-01GL02-TSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
83161058SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 306gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
83161165SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 306gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
83161182SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 306gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
83161118SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 306gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
AGL4020SWITCH SNAP ACT DPST-NO 5A 250V |
0 |
|
Datasheet |
AGL | Bulk | Active | DPST-NO | Off-Mom | 5A (AC), 6A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 329gf | - | 0.256" (6.5mm) | - | - | 0.030" (0.76mm) | -25°C ~ 60°C |
|
|
D2QW-C072DSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
