Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABV1230413SWITCH SNAP ACT SPST-NO 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
ZMW00AT10JCDCSWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ZMW00AT10JCAASWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.090" (2.3mm) | - | 0.098" (2.5mm) | -40°C ~ 85°C |
|
LCS052T05WA20CWSWITCH SNAP ACT SPST-NC 5A 125V |
0 |
|
Datasheet |
LCS | Tray | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 82gf | 16gf | 0.345" (8.8mm) | 0.170" (4.3mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 105°C |
L3M SERIES.jpg)
|
D2SW-P01L3-3MSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2SW-P | Tray | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
|
ABJ263041SWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 125gf | 15gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|

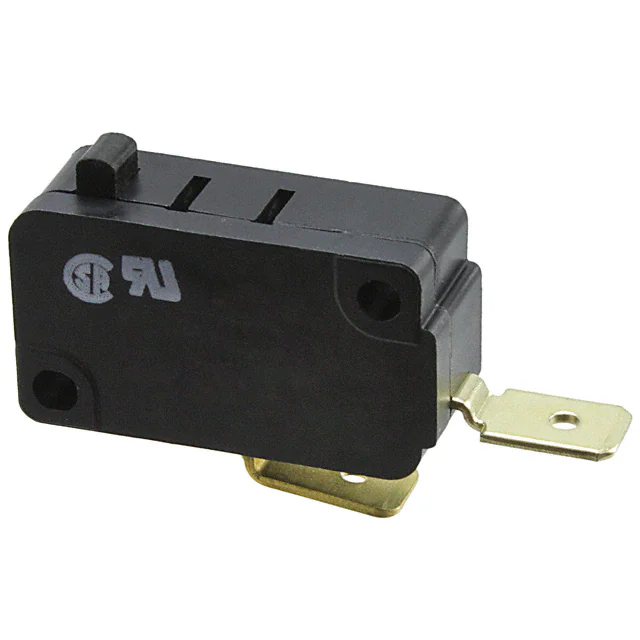

V7-5F27E9SWITCH SNAP ACT SPST-NO 3A 125V |
21 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 8.158 ~ 18gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
AP-HN10SWITCH SNAP ACTION 1NO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PP2-4U7-2C2SWITCH DETECTOR DPDT 16A 125V |
0 |
|
Datasheet |
PP2 | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Pull On Lock | 160gf | - | 0.713" (18.1mm) | - | - | - | 0°C ~ 85°C |
|
|
PP2-1H7-2D2SWITCH DETECTOR DPDT 16A 125V |
0 |
|
Datasheet |
PP2 | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | White Actuator | - | - | 0.345" (8.8mm) | - | - | - | 0°C ~ 85°C |
|
|
PP2-4H7-2D2SWITCH DETECTOR DPDT 16A 125V |
0 |
|
Datasheet |
PP2 | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | - | - | 0.345" (8.8mm) | - | - | - | 0°C ~ 85°C |
|
|
D2QW-C173HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C183HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C163HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C182DSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C103HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C162DSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C182HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C172HSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2QW-C173DSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
