Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2D6BQ3SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
ABV1210519SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
- |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
D2AW-R5-ER003MPSWITCH SNAP ACT SUBMINI BASIC W/ |
0 |
|
- |
D2AW | Tray | Active | SPST-NO | Off-Mom | - | - | 14 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.283" (7.2mm) | - | - | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-R1-ER003MPSWITCH SNAP ACT SUBMINI BASIC W/ |
0 |
|
- |
D2AW | Tray | Active | SPST-NO | Off-Mom | - | - | 14 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.283" (7.2mm) | - | - | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-R1-EL003MPSWITCH SNAP ACT SUBMINI BASIC W/ |
0 |
|
- |
D2AW | Tray | Active | SPST-NO | Off-Mom | - | - | 14 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.283" (7.2mm) | - | - | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-R5-EL003MPSWITCH SNAP ACT SUBMINI BASIC W/ |
0 |
|
- |
D2AW | Tray | Active | SPST-NO | Off-Mom | - | - | 14 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 101gf | 10gf | 0.283" (7.2mm) | - | - | 0.055" (1.4mm) | -40°C ~ 85°C |
.jpg)
|
D3V-6-2A4SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NC | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
G01303152Linear IC's |
0 |
|
Datasheet |
ZMV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 220gf | 38gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
83170003SWITCH SNAP ACT SPST-NC 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
83170002SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
83170008SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
VX-01-2C22SWITCH SNP ACT SPST-NC 0.1A 125V |
0 |
|
Datasheet |
VX | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

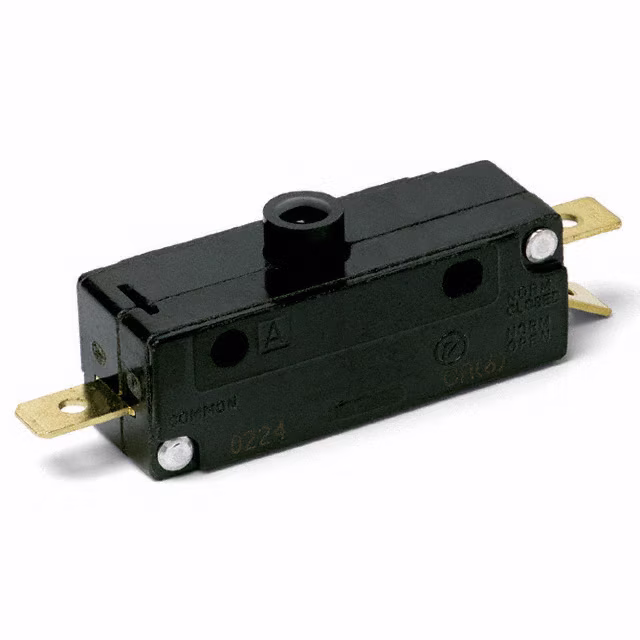

ASGGC2P04ACSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 227gf | 28gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
ABV1620513SW TURQ SPST PLNG GOLD WIRE 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
ABV1225413RSWITCH SNAP ACT SPST-NC 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 1A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 110gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
ABV1225513RSWITCH SNAP ACT SPST-NC 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 220gf | 40gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
ABV1235413RSWITCH SNAP ACT SPST-NO 1A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 110gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
ABV1235513RSWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 220gf | 40gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
ABV1235619RSWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
ZD30S20A04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZD | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP00 | - | 130gf | 13gf | 0.120" (3.05mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
