Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V-166-1C4SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V7-1Y39E9SWITCH SNAP ACT SPST-NC 20A 277V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 20A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65 ~ 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
SSG-01T-5SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|
D2SW-01L2DSSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
ABJ263240SWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 40gf | 3.000gf | 0.327" (8.3mm) | 0.118" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
HY106-6Y7-000-0000SWITCH SNAP ACTION DPST 18A 250V |
0 |
|
Datasheet |
HY | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 18A (AC) | 250 V | - | Plunger for Cap | Panel Mount | Screw Terminal | - | - | 3000gf | - | - | - | - | - | 0°C ~ 55°C |
|
|
V15S11-UZ200BASIC SWITCH |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 11A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.51mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
V7-1A17D8-000-1SWITCH PLUNGER SPDT 5A QC |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PP2-1H1-2A2Switches |
0 |
|
Datasheet |
PP2 | Bulk | Active | DPDT | On-Mom | 10A (AC) | 277 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | 0°C ~ 85°C |
|
|
MBZ106B01C06B01SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 153gf | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
MBZ106A01C06B01SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 285gf | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
AV620264SWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
G01293589Linear IC's |
0 |
|
Datasheet |
ZMT | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 56gf | 8gf | 0.280" (7.1mm) | 0.134" (3.4mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
UM50E70F01SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
UM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 60gf | 4.000gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 82°C |
|
V-106-1C4SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
DS2D6AQ3SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
V7-2A18D8-207SWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABV1220519SWITCH SNAP ACT SPST-NC 3A 250V |
0 |
|
- |
ABV | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

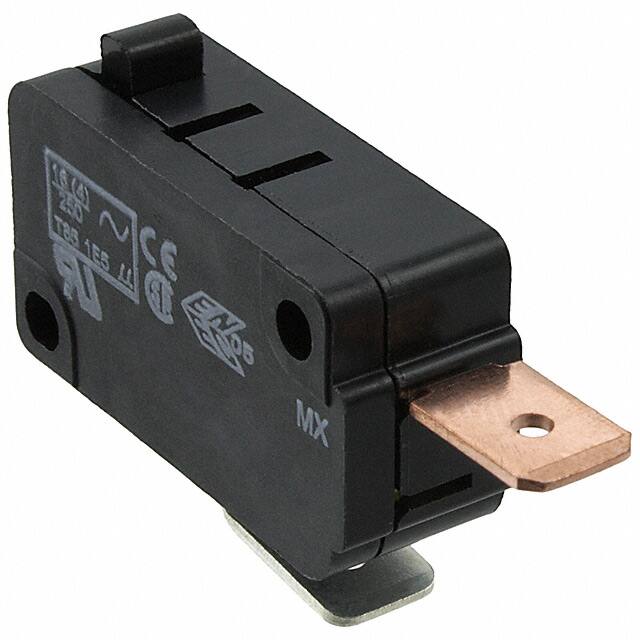

V7-1V39E9SWITCH SNAP ACT SPST-NC 21A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NC | On-Mom | 21A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 175gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
V7-1C17E9-207SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 86gf | 9.000gf | 0.803" (20.4mm) | 0.112" (2.85mm) | 0.025" (0.6mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
