Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-10GL13-3SWITCH SNAP ACT SPST-NO 10A 250V |
312 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
V-15-2C26SWITCH SNAP ACT SPST-NC 15A 250V |
175 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V-152-3C5SWITCH SNAP ACT SPST-NO 15A 250V |
1,561 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V7-1C18D8SWITCH SNAP ACTION SPDT 15A 125V |
159 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

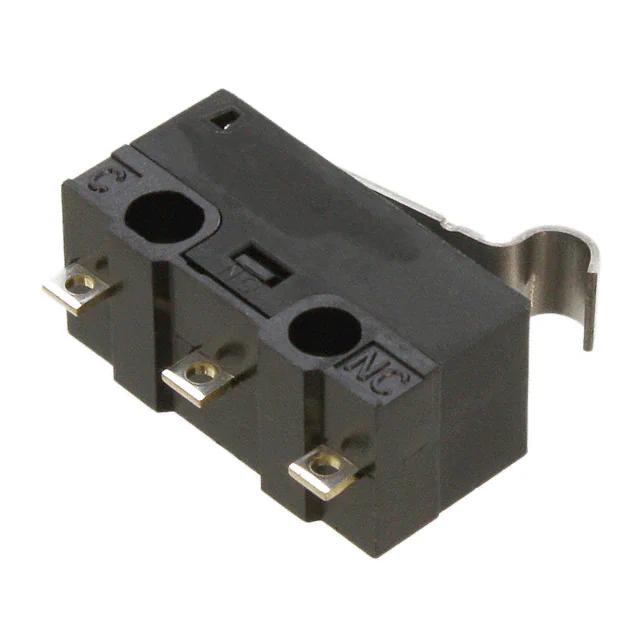

D2F-01FL3-DSWITCH SNAP ACTION SPDT 0.1A 30V |
8,418 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

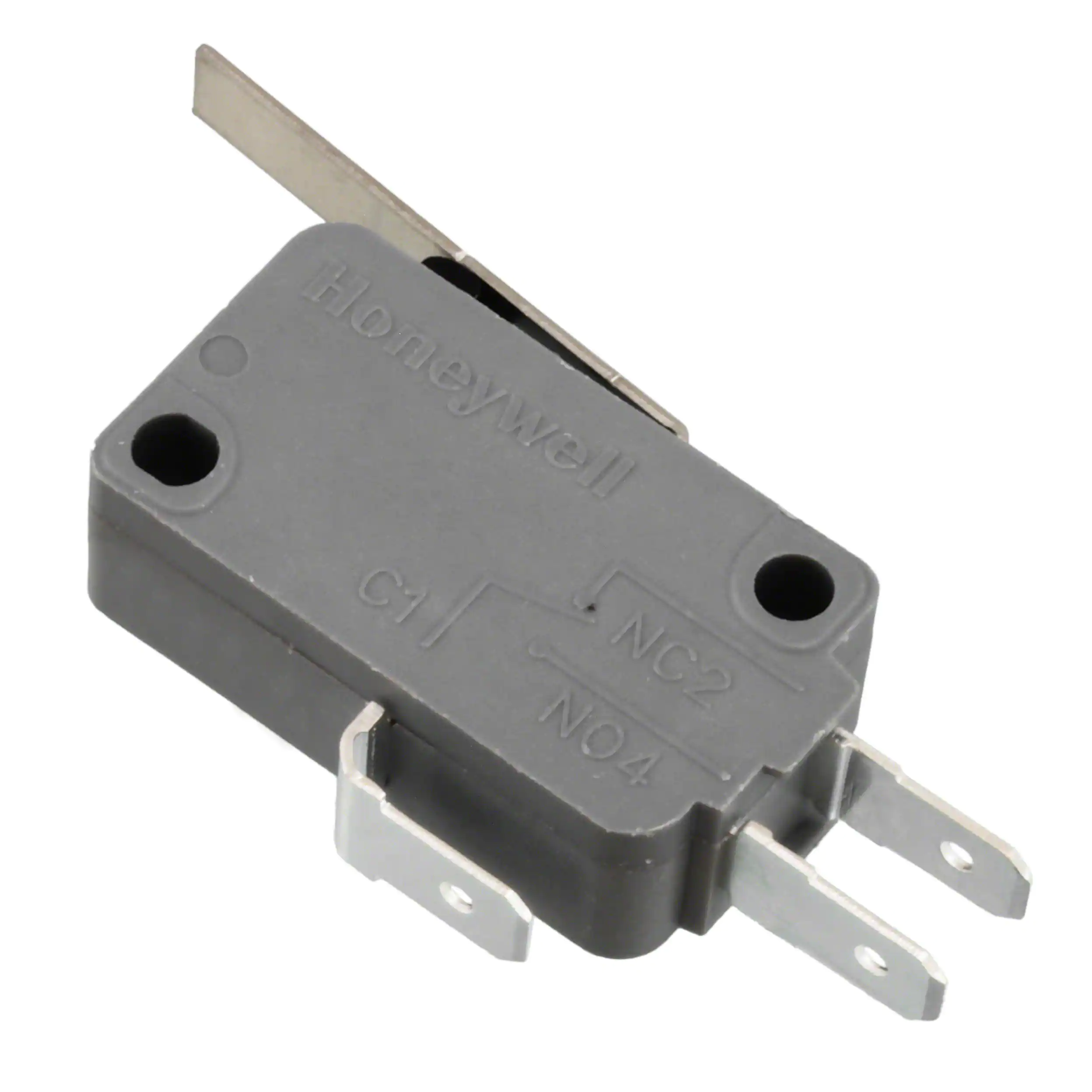

V15T16-EZ100A02SWITCH SNAP ACTION SPDT 16A 250V |
1,259 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|

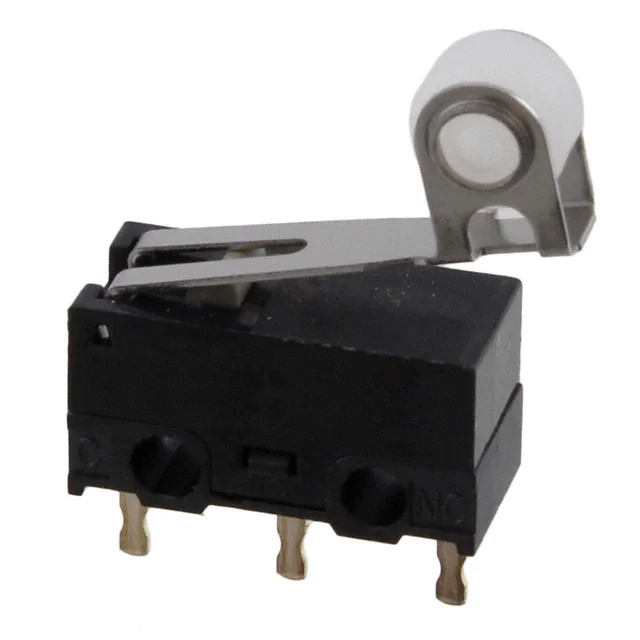

D2F-01L2SWITCH SNAP ACTION SPDT 0.1A 30V |
3,286 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
WS0850101F050SASWITCH SNAP ACTION SPDT 1A 24V |
691 |
|
Datasheet |
WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 50gf | - | 0.528" (13.4mm) | - | - | - | -25°C ~ 85°C |
|
ASQM17420SWITCH SNP ACT SPST-NC 0.05A 16V |
109 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NC | On-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.280" (7.1mm) | - | - | 0.065" (1.7mm) | -40°C ~ 85°C |
|
V-15-3C25SWITCH SNAP ACT SPST-NO 15A 250V |
555 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
SS-10GL111TSWITCH SNAP ACTION SPDT 10A 250V |
167 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-016-2A3SWITCH SNP ACT SPST-NC 0.1A 125V |
110 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
SS-5GL111-FTSWITCH SNAP ACTION SPDT 5A 125V |
275 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 12gf | 2.039gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ABS1410519SWITCH SNAP ACT SPDT 0.1A 125V |
830 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
V-214-1C6SWITCH SNAP ACTION SPDT 21A 250V |
1,207 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 25gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
SSG-5L2PSWITCH SNAP ACTION SPDT 5A 125V |
1,014 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 61gf | 6.118gf | 0.705" (17.9mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
D2FD-01L0-1TSWITCH SNAP ACT SPDT 0.1A 125V |
1,020 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP60 - Dust Tight | - | 204gf | 25gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
V-15G3-1C26-KSWITCH SNAP ACTION SPDT 15A 250V |
2,569 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 130gf | 12gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
ZMSH00130P00PSCSWITCH SNAP ACT SPDT 100MA 12V |
578 |
|
Datasheet |
ZMS | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
SS-5GL2-FDSWITCH SNAP ACTION SPDT 5A 125V |
749 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
