Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WS0850102F070PASWITCH SNAP ACT SPDT 0.1A 125V |
425 |
|
Datasheet |
WS | Bulk | Active | SPDT | On-Mom | 100mA (AC), 1A (DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 70gf | - | 0.583" (14.8mm) | - | - | - | -25°C ~ 85°C |
|
D3V-6G2-1C23SWITCH SNAP ACTION SPDT 6A 250V |
197 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
WS0850102F070SASWITCH SNAP ACT SPDT 0.1A 125V |
826 |
|
Datasheet |
WS | Bulk | Active | SPDT | On-Mom | 100mA (AC), 1A (DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 70gf | - | - | - | - | - | -25°C ~ 85°C |
.jpg)
|
D3V-6G-1C3SWITCH SNAP ACTION SPDT 6A 250V |
211 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

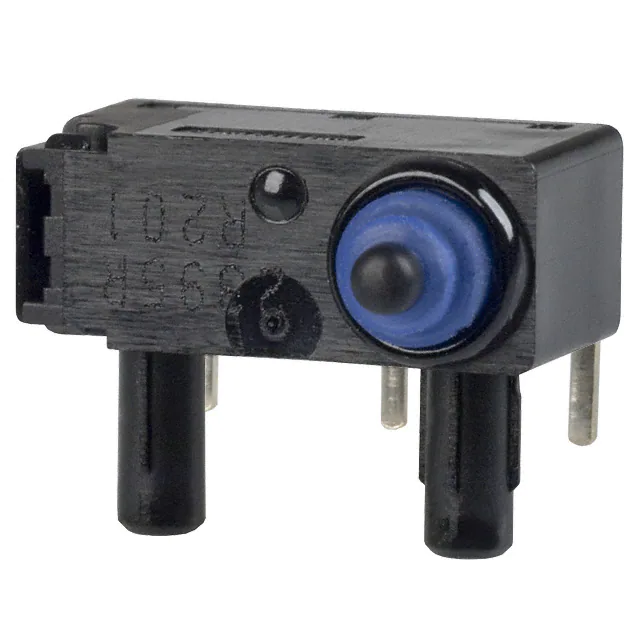

D2HW-BR201HSWITCH SNAP ACT SPDT 0.1A 125V |
2,548 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

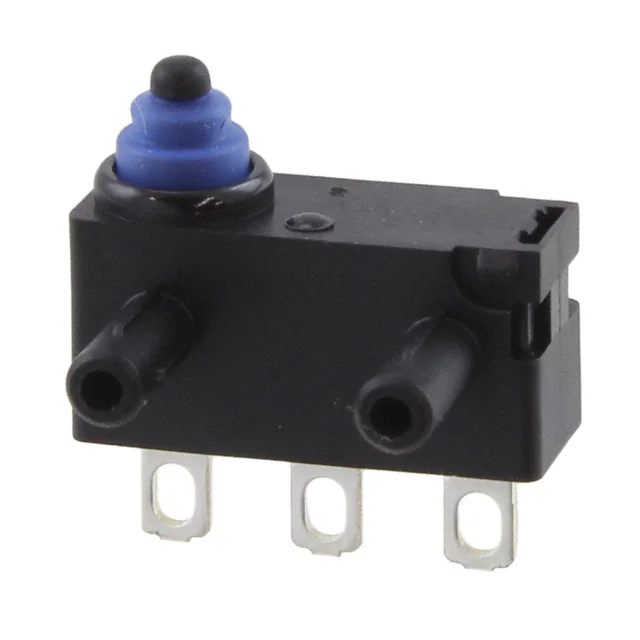

D2HW-BL201HSWITCH SNAP ACT SPDT 0.1A 125V |
642 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
SS-01GL13-TSWITCH SNAP ACT SPDT 0.1A 125V |
5,838 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
D3V-162-1A5SWITCH SNAP ACTION SPDT 16A 250V |
127 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V15T16-CZ300A03-KSWITCH SNAP ACTION SPDT 16A 250V |
853 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 15gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -25°C ~ 125°C |
|

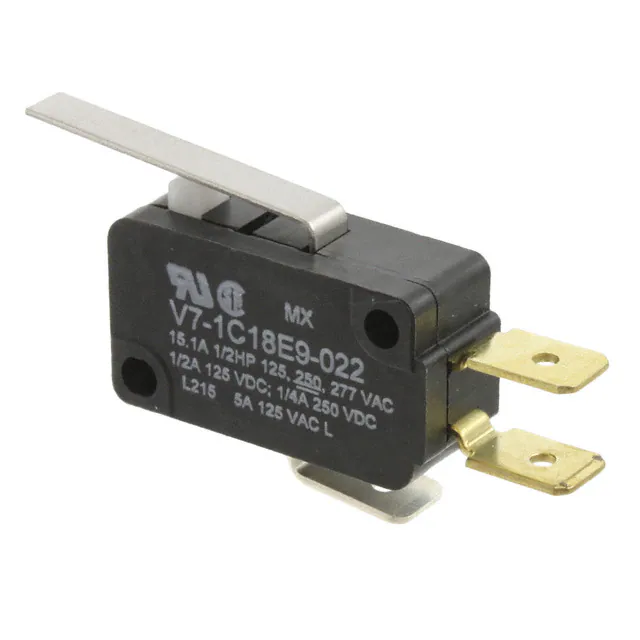

V7-1C18E9-022SWITCH SNAP ACTION SPDT 15A 125V |
698 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 5.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
D2HW-BR271HSWITCH SNAP ACT SPDT 0.1A 125V |
162 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | Support Posts | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
SS-01GL-3TSWITCH SNP ACT SPST-NO 0.1A 125V |
385 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ASQ11510SWITCH SNAP ACTION SPDT 0.1A 30V |
2,737 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
ASQ10418SWITCH SNAP ACTION SPDT 0.1A 30V |
2,222 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.110" (2.8mm) | -40°C ~ 85°C |
|

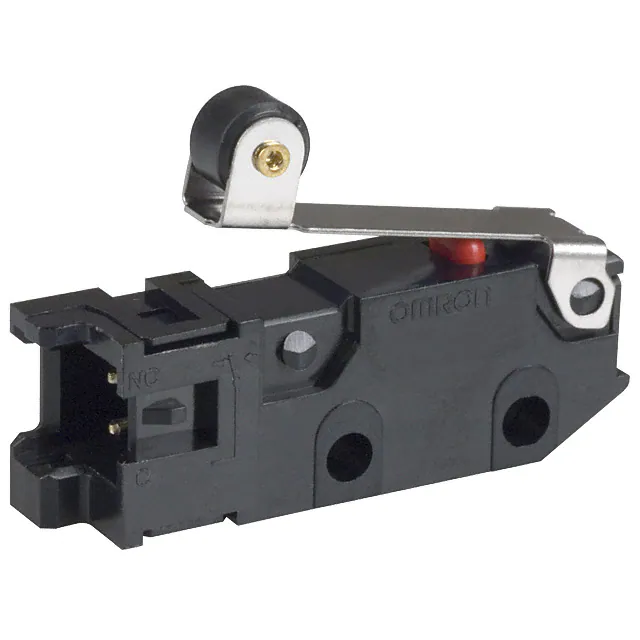

D3M-01K2SWITCH SNAP ACT SPST-NC 0.1A 30V |
556 |
|
Datasheet |
D3M | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.618" (15.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3DC-2-WSWITCH SNAP ACT SPST-NC 0.1A 30V |
200 |
|
Datasheet |
D3DC | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount, Snap-In | Connector | IP00 | White Actuator | 102gf | - | 0.264" (6.7mm) | - | - | - | -25°C ~ 85°C |
|
SS-5GL2D1SWITCH SNAP ACTION SPDT 5A 125V |
4,665 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ABV1210513SWITCH SNAP ACTION SPDT 3A 250V |
140 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
WS10850100F130WASWITCH SNAP ACT SPDT 0.1A 125V |
975 |
|
Datasheet |
WS1 | Box | Active | SPDT | On-On | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Panel Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
WS1085300F130WASWITCH SNAP ACTION SPDT 3A 125V |
910 |
|
Datasheet |
WS1 | Box | Active | SPDT | On-On | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Panel Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | - | - | - | - | - | -40°C ~ 85°C |
