Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2HW-BL221DLSWITCH SNAP ACT SPDT 0.1A 125V |
382 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|

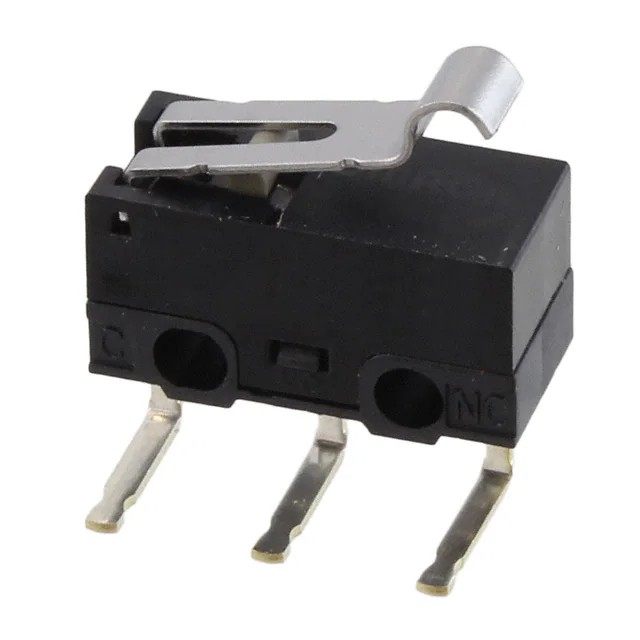

D2F-L3-A1SWITCH SNAP ACTION SPDT 3A 125V |
2,290 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

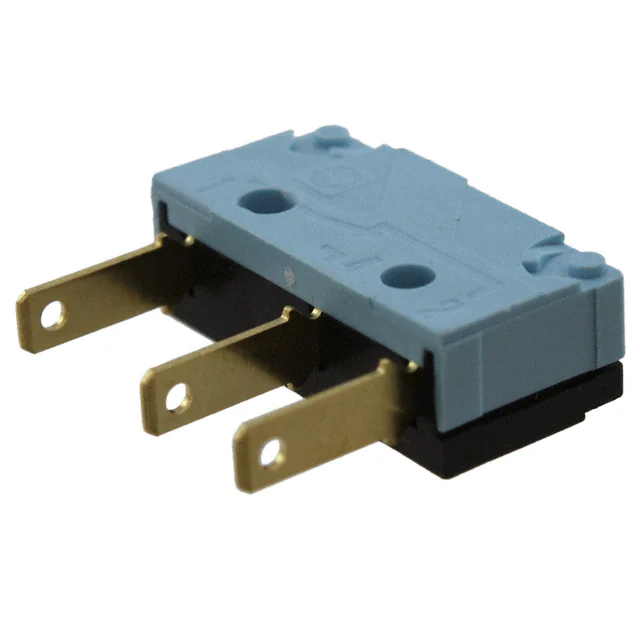

83170005SWITCH SNAP ACTION SPDT 10A 250V |
546 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
D3M-01L2SWITCH SNAP ACT SPST-NC 0.1A 30V |
409 |
|
Datasheet |
D3M | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.587" (14.9mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|

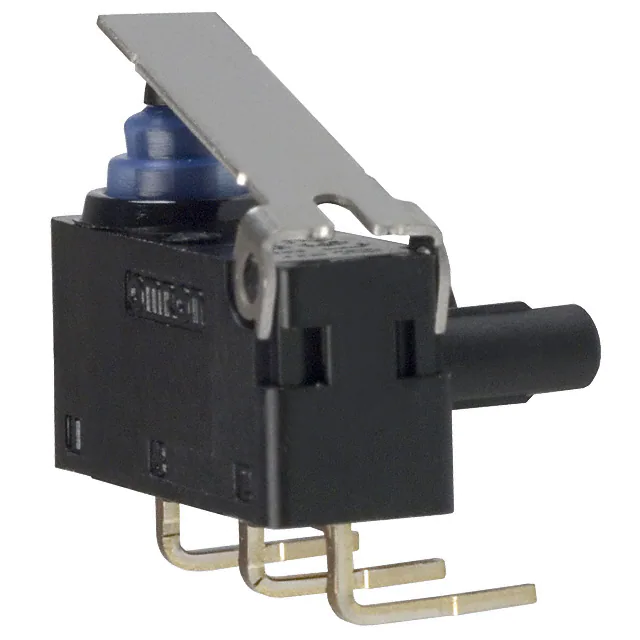

D2HW-BR211DRSWITCH SNAP ACT SPDT 0.1A 125V |
241 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D3V-161-3A5SWITCH SNAP ACT SPST-NO 16A 250V |
200 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
V-155-1C6SWITCH SNAP ACTION SPDT 15A 250V |
271 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V15T16-CZ300A06-KSWITCH SNAP ACTION SPDT 16A 250V |
1,031 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 30gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
ASQM17438SWITCH SNP ACT SPST-NO 0.05A 16V |
906 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|

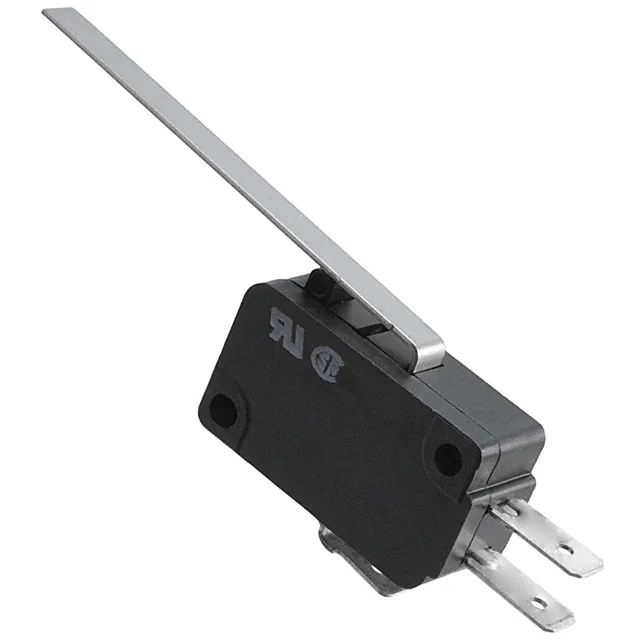

V7-6C17D8-048-1SWITCH SNAP ACTION SPDT 15A 125V |
2,631 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 19gf | 0.579" (14.7mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
D3V-16G443-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
135 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
SS-01GLDSWITCH SNAP ACT SPDT 0.1A 125V |
340 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ZMCJM9L0LSWITCH SNAP ACT SPDT 200MA 60V |
120 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
DS1F5BQ3SWITCH SNAP ACT SPDT 100MA 125V |
4,999 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
V15T26-CP300-01SWITCH SNAP ACT SPST-NO 26A 250V |
2,397 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 26A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
ABS1512519SWITCH SNAP ACT SPDT 0.1A 125V |
957 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
SS-5GL2-2SWITCH SNAP ACT SPST-NC 5A 125V |
405 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
D3V-16-2C25SWITCH SNAP ACT SPST-NC 16A 250V |
153 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
D2FD-01L0-1HSWITCH SNAP ACT SPDT 0.1A 125V |
1,495 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP60 - Dust Tight | - | 204gf | 25gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
SS-01GL-3SWITCH SNP ACT SPST-NO 0.1A 125V |
373 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
