Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AH178261-ASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 25gf | 2.500gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
AM50045D33-ASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AM5 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.035" (0.9mm) | -25°C ~ 105°C |
|
|
MAB104G01C01X01ASWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
- |
MAB | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 357gf | - | 0.583" (14.8mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -10°C ~ 105°C |
|
|
V7-2A27D84-000-1SWITCH V BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABJ241441SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 40gf | 3.059gf | 0.445" (11.3mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
ABS5513503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP50 - Dust Protected | - | 45gf | 2.957gf | 0.346" (8.80mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|
|
ABS4512503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP50 - Dust Protected | - | 55gf | 3.467gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|
|
MBZ101A01C03A02SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 285gf | - | 0.472" (12.0mm) | 0.354" (9.0mm) | 0.060" (1.5mm) | 0.100" (2.5mm) | -40°C ~ 85°C |
|
D2S-5L2-FSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 50gf | 25gf | 0.370" (9.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
D2S-5L2-FDSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | 25gf | 0.370" (9.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
MAB103D01B08B03ASNAP ACTING SWITCH MA |
0 |
|
- |
MAB | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 204gf | 120gf | 0.820" (20.8mm) | 0.219" (5.6mm) | 0.098" (2.5mm) | 0.047" (1.2mm) | -10°C ~ 105°C |
|
LS085R104F050C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|

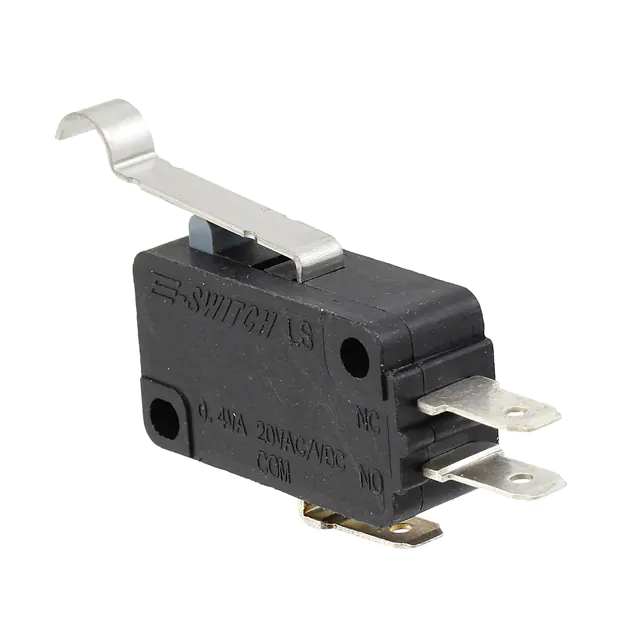

LS085R104F085C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | 30gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS085R104F050V2BSWITCH SNP ACT SPST-NC 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
D2S-5L2DSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | 6.000gf | 0.370" (9.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
LCA01150A05SCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 50gf | 6.000gf | 0.355" (9.0mm) | 0.140" (3.6mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 125°C |
|
|
SS-5GL02T-TSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-16G2-1A5SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
V15T16-PZ200-01SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | PC Pin | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
MAF6CSNAP ACTING SWITCH MA |
0 |
|
- |
MA | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 343gf | - | 0.578" (14.68mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
