Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V-6G41-3C4-T-KSWITCH SNAP ACT SPST-NO 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 200°C |
|
MAB104B02C04B01ASNAP ACTING SWITCH MA |
0 |
|
- |
MAB | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 55gf | 0.705" (17.9mm) | 0.244" (6.2mm) | 0.047" (1.2mm) | 0.118" (3.0mm) | -10°C ~ 125°C |
|
|
MAB102B02C04B01ASNAP ACTING SWITCH MA |
0 |
|
- |
MAB | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 55gf | 0.705" (17.9mm) | 0.244" (6.2mm) | 0.047" (1.2mm) | 0.118" (3.0mm) | -10°C ~ 125°C |
|
|
MAD6CSNAP ACTING SWITCH MA |
0 |
|
- |
MA | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 343gf | - | 0.578" (14.68mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
MAE6CSNAP ACTING SWITCH MA |
0 |
|
- |
MA | Bulk | Active | SPST-NC | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 343gf | - | 0.578" (14.68mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
AH1480619-ASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
V15T16-M2P200-ABASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V15T16-C2P200-01SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-CP100-301SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
 BY OMI.JPG)
|
V-16G-1C25 (R)SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
ABS1416509SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Obsolete | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
D3V-16G-1C4-K BY OMISWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | - | - | 0.598" (15.2mm) | 0.063" (1.6mm) | - | 0.031" (0.8mm) | -25°C ~ 105°C |
|

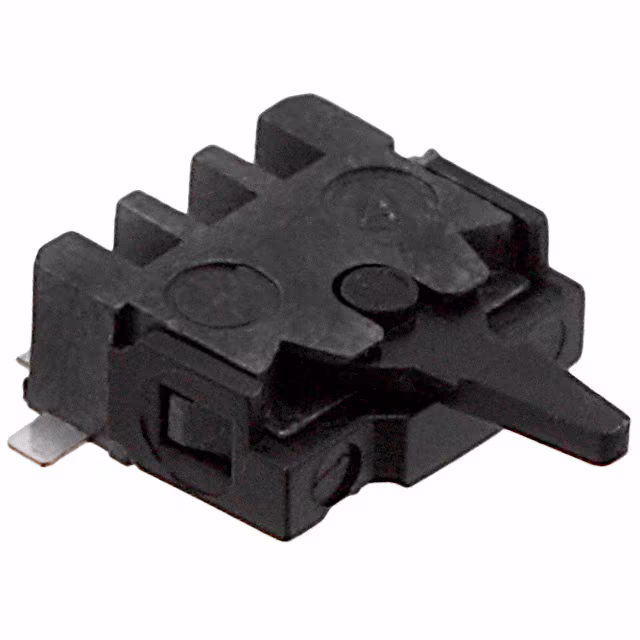

SDP002SWITCH DETECTOR SPDT 1MA 5V |
0 |
|
Datasheet |
SDP | Tape & Reel (TR) | Obsolete | SPDT | Mom-Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 12gf | - | 0.106" (2.7mm) | - | - | - | -20°C ~ 70°C |
|
ZMCJM9T13RSWITCH SNAP ACT SPDT 200MA 60V |
0 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|

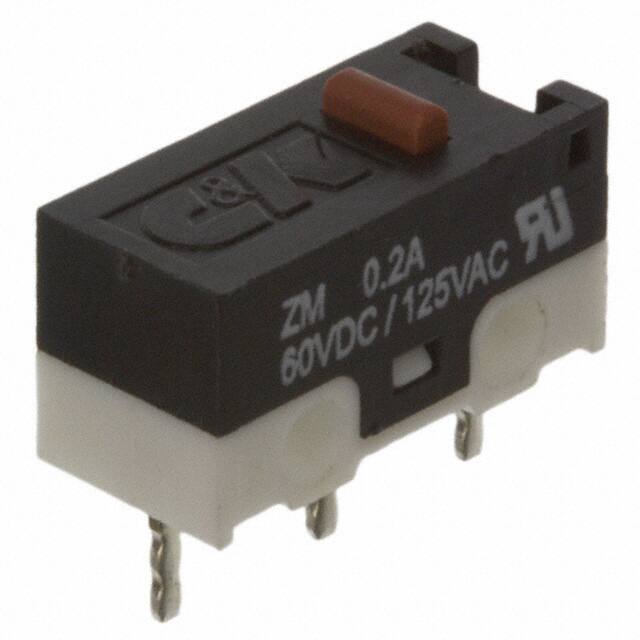

ZMCJM9P0TSWITCH SNAP ACT SPDT 200MA 60V |
0 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
|
ABS1116503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 3.977gf | 0.571" (14.50mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
.jpg)
|
D3V-11-2A5SWITCH SNAP ACT SPST-NC 11A 250V |
25 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NC | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
D2S-5L13SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | 6.000gf | 0.450" (11.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
D2S-5L13-FDSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | 25gf | 0.450" (11.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
D2S-5L13DSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | 6.000gf | 0.450" (11.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
