Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS1510413SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 100gf | 15gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
|
SSG-01L1-3HSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
SSG | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 61gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
|
LS0851500F250S1ASWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
ZMCHM9T23TSWITCH SNAP ACT SPDT 200MA 60V |
0 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 25gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|

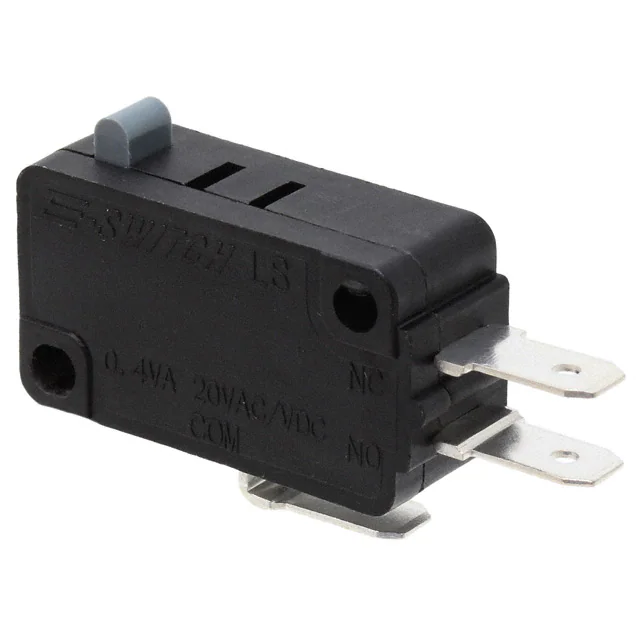

LS085R100F160C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS085R100F160C2ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
PP1-EB7-2A2SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | 300gf | - | 0.738" (18.7mm) | - | - | - | 0°C ~ 85°C |
|
|
LS085R104F140C1CSWITCH SNP ACT SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 140gf | 40gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
MWZ101C01B01X0167SNAP ACTING SWITCH MB |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZMSMH3130P00PRCSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZMSM | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.266" (6.75mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.069" (1.75mm) | -40°C ~ 85°C |
|
|
ZM115C70C01-GSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ZM1 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 45gf | 5.000gf | - | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.026" (0.7mm) | 0°C ~ 85°C |
|
|
MBZ101A01B08B01SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 285gf | - | 0.646" (16.4mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
V-16G-2C25SWITCH SNAP ACT SPST-NC 16A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NC | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
V-16-3C6(R2)SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V-10G-3C24-KSWITCH SNAP ACT SPST-NO 10A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPST-NO | Off-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
AVM3235619-ASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
|
MAJ6CSNAP ACTING SWITCH MA |
0 |
|
- |
MA | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 343gf | - | 0.578" (14.68mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
D2S-10L13SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | Sealed - Flux Protection | 50gf | 6.118gf | 0.449" (11.4mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D2SW-P01L2BSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.000gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
|
LS085R102F120C1CSWITCH SNP ACT SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
