Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVM3405P9-ASWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AVM3405P-ASWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

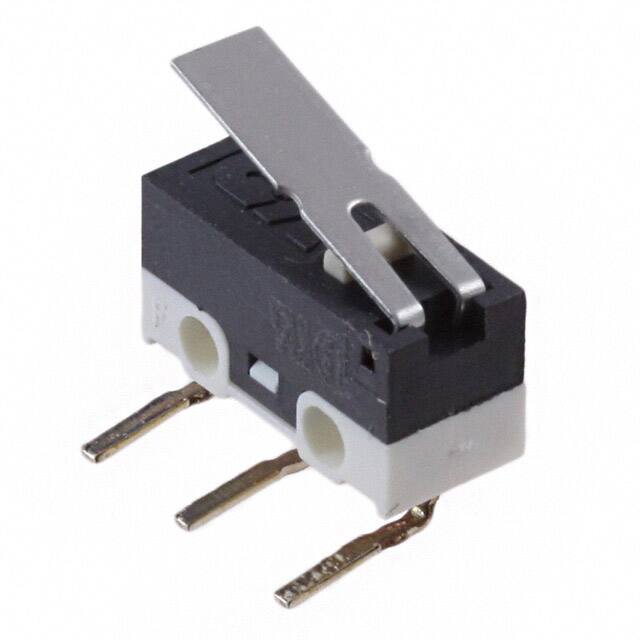

ZMCHF7L3RSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 30gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
ZMCJF7T13LSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
MBZ101A01B03A02SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 285gf | - | 0.472" (12.0mm) | 0.354" (9.0mm) | 0.060" (1.5mm) | 0.100" (2.5mm) | -40°C ~ 85°C |
|
|
TF2CFH8ST1440CSWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 28gf | 3.000gf | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
V-153-1A5-TSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.579" (14.7mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 150°C |
|
|
V7-1B29P07-022SWITCH SNAP ACT SPST-NO 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Through Hole | PC Pin | - | - | 82gf | 8.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.028" (0.7mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
|
ASQ10810SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
MBZ101A01A02X01SNAP ACTING SWITCH MB |
0 |
|
Datasheet |
MBZ | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 285gf | - | 0.331" (8.40mm) | 0.047" (1.2mm) | 0.005" (0.13mm) | 0.024" (0.6mm) | -40°C ~ 85°C |
|
D2F-L20-DSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | - | - | - | - | - | - | IP40 | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
D2F-01L20SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.000gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
|
V15T16-CZ100SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T26-C1P300SWITCH BASIC (V15), 26A, S.P.N.O |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZV50E10A01SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 146gf | 35gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
LS085R100F100C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 30gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
ASQ15410SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
- |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | - | 0.331" (8.40mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
SSG-01L3HSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 61gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
D2SW-P2L3BSWITCH SNAP ACTION SPDT 2A 250V |
0 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.000gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
|
ABS1112449SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 35gf | 2.957gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
